Eaton 9PX User Manual

Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02 41
CChhaapptteerr 88 SSppeecciiffiiccaattiioonnss

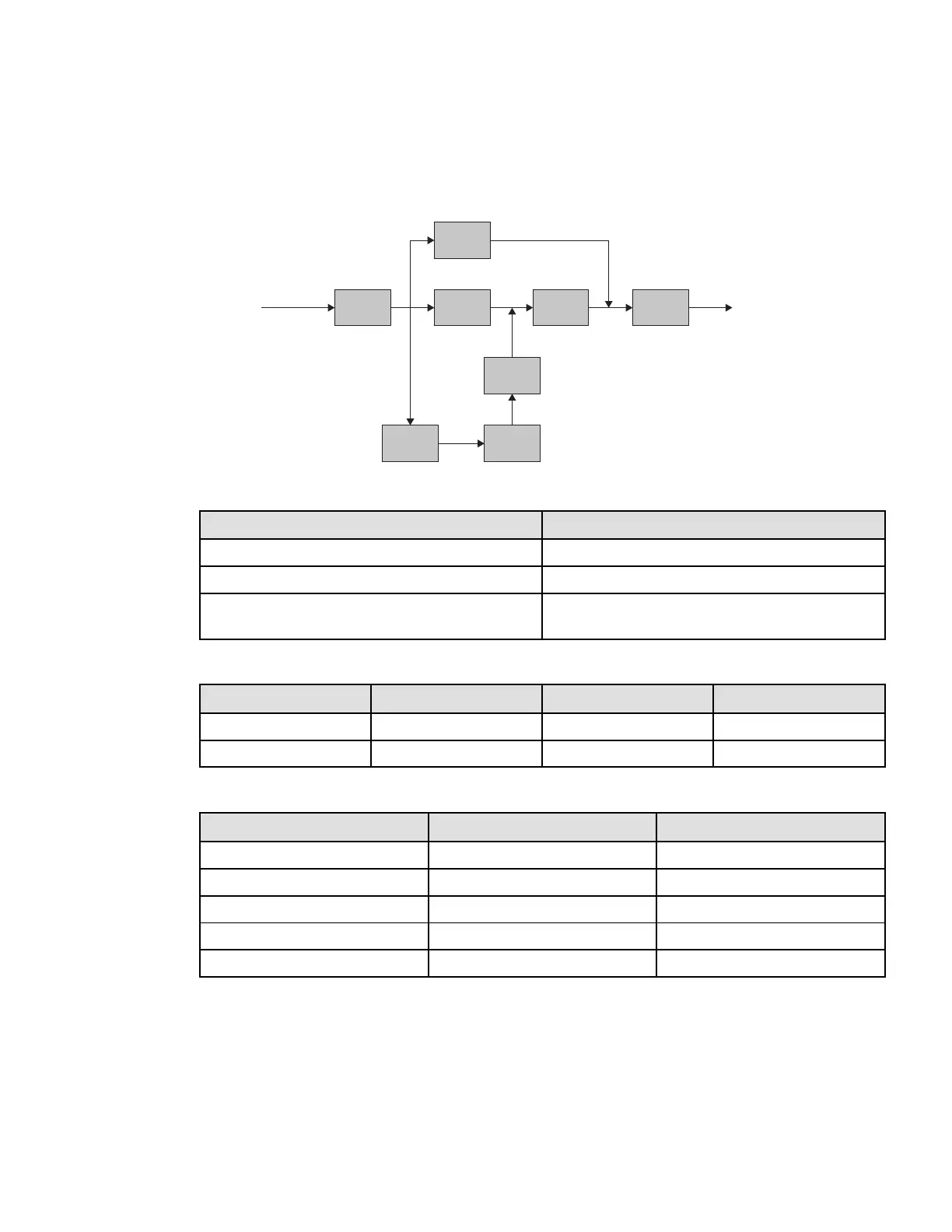

88..11 MMooddeell SSppeecciiffiiccaattiioonnss
Input
Filter
AC/DC
Boost
DC/AC
Inverter
Output
Filter
Bypass
DC/DC
Battery
Charger
Table 7. Power Module List
Model Power ratings
9PX1500IRT2U-L 1500VA / 1500W
9PX2200IRT2U-L 2200VA / 2200W
9PX3000IRT2U-L 3000VA / 2400W
3000VA/3000W when EBM connected
Table 8. Extended Battery Module List
Model Configuration Battery Voltage For Power Module
9PXEBM48RT1U-L Rack / Tower 48Vdc 1000 — 1500VA
9PXEBM72RT1U-L Rack / Tower 72Vdc 2200– 3000VA
Table 9. Weights and Dimensions
Model
Dimensions D x W x H(mm/inch) Weight (kg / lb)
9PX1500IRT2U-L 450 x 440 x 86.5 / 17.7 x 17.3 x 3.4 15.8 / 34.8
9PX2200IRT2U-L 605 x 440 x 86.5 / 23.8 x 17.3 x 3.4 22.1 / 48.6
9PX3000IRT2U-L 605 x 440 x 86.5 / 23.8 x 17.3 x 3.4 22.8 / 50.2
9PXEBM48RT1U-L 448 x 438 x 42.9 / 17.6 x 17.2 x 1.7 16.6 / 36.5
9PXEBM72RT1U-L 603 x 438 x 42.9 / 23.7 x 17.2 x 1.7 21.2 / 46.6

Eaton 9PX Specifications

General

Topology	Double Conversion Online
Output Voltage	200/208/220/230/240V
Input Voltage	200-240V
Form Factor	Tower or Rackmount (depending on model)
Battery Type	Sealed Lead-Acid (SLA)
Communication Ports	USB, Serial, Relay
Display	LCD
Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0 to 40°C
Humidity	0-95% non-condensing
Certifications	CE
