Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02 3
CChhaapptteerr 22 PPrreesseennttaattiioonn
22..11 SSttaannddaarrdd IInnssttaallllaattiioonnss

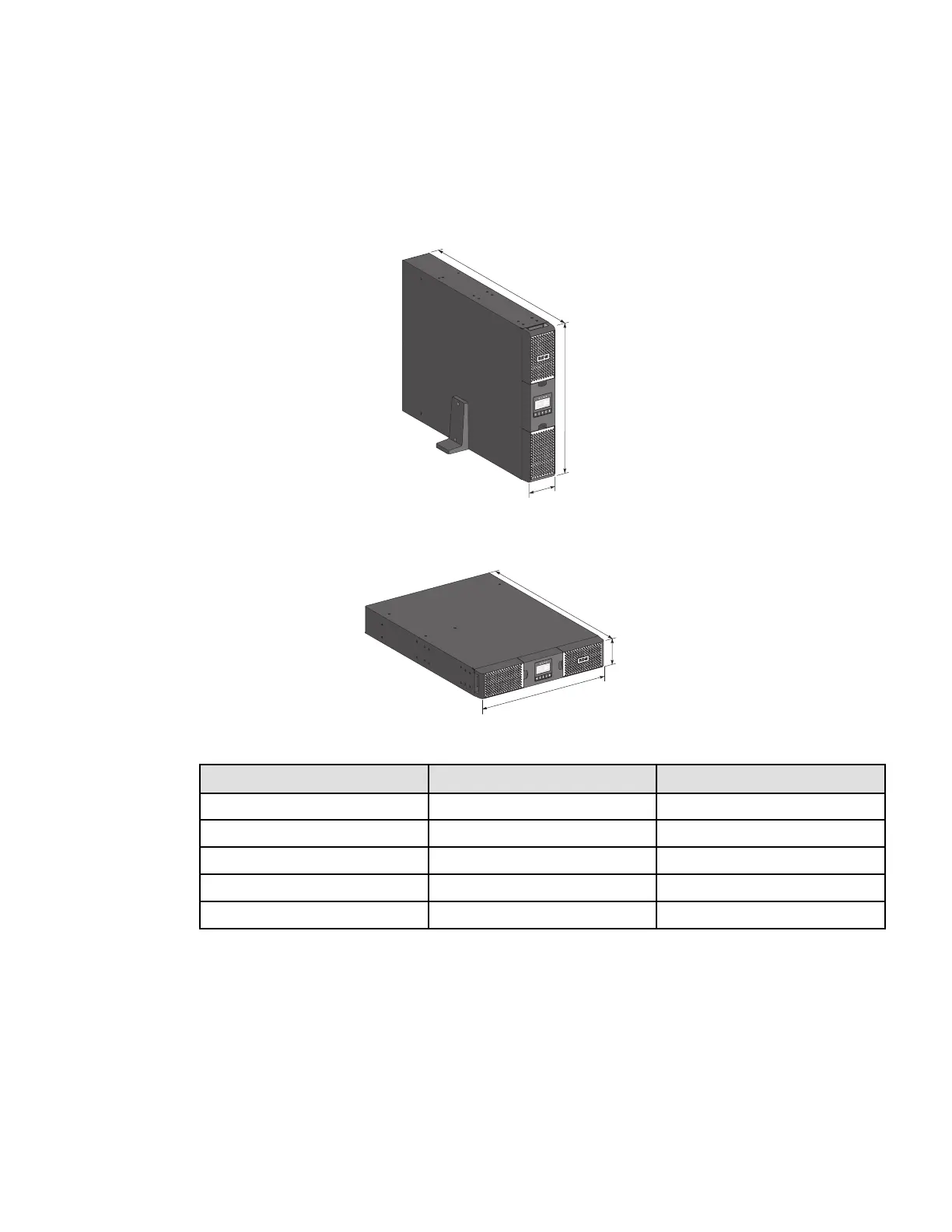

Figure 1. Tower Installation
D
W
H
Figure 2. Rack Installation
D
H
W
Table 2. Weights and Dimensions
Model
Dimensions D x W x H(mm/inch) Weight (kg / lb)
9PX1500IRT2U-L 450 x 440 x 86.5 / 17.7 x 17.3 x 3.4 15.8 / 34.8
9PX2200IRT2U-L 605 x 440 x 86.5 / 23.8 x 17.3 x 3.4 22.1 / 48.6
9PX3000IRT2U-L 605 x 440 x 86.5 / 23.8 x 17.3 x 3.4 22.8 / 50.2
9PXEBM48RT1U-L 448 x 438 x 42.9 / 17.6 x 17.2 x 1.7 16.6 / 36.5
9PXEBM72RT1U-L 603 x 438 x 42.9 / 23.7 x 17.2 x 1.7 21.2 / 46.6
