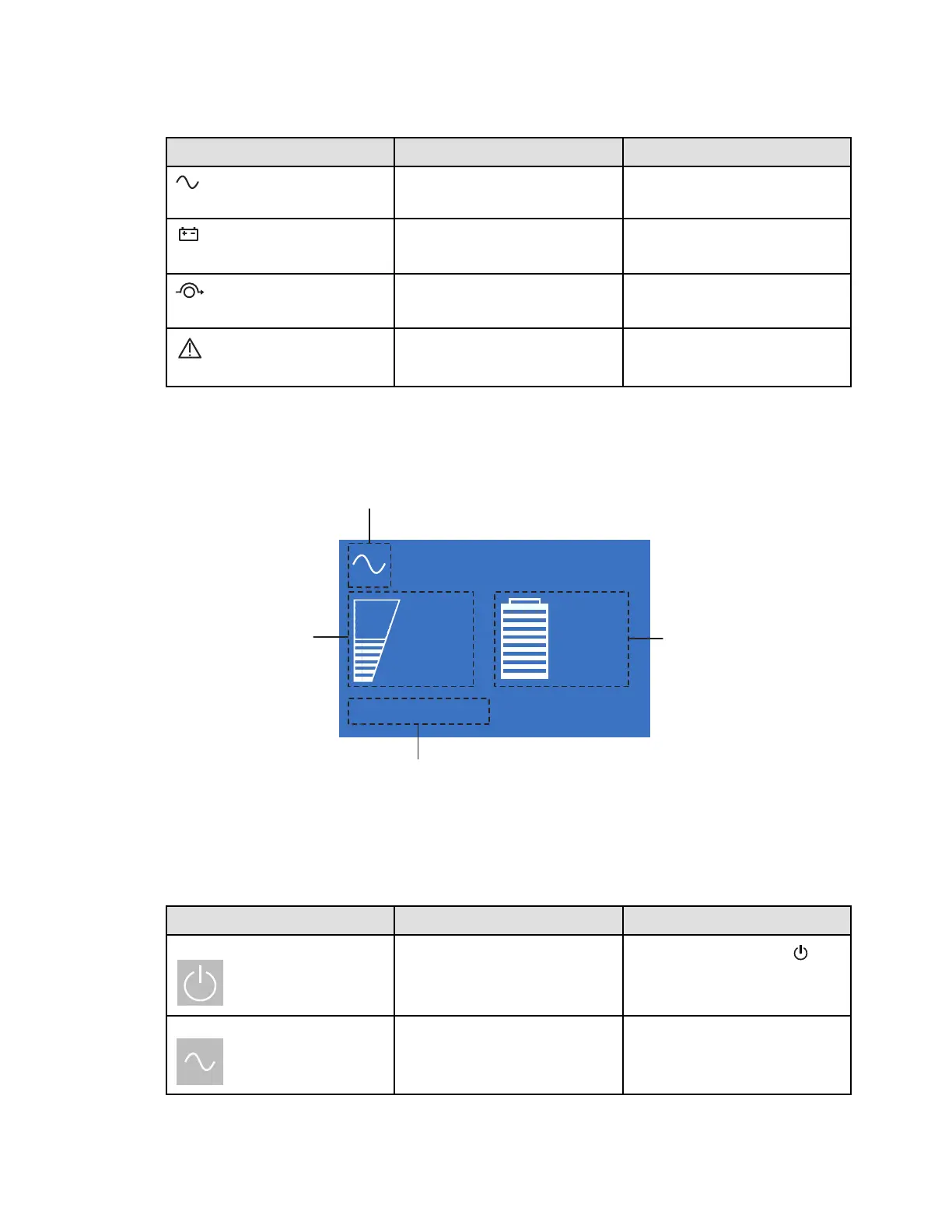

6 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 01
Indicator Status Description
Green
On
The UPS is operating normally on Online
or on High Efficiency mode.
Orange
On The UPS is on Battery mode.
Orange
On The UPS is on Bypass mode.
Red
On
The UPS has an active alarm or fault.
22..55 LL CCDD DDeessccrriippttiioonn
Figure 4. LCD Description
Operation status
Load/equipment status
Online mode
100%
30min
1EBM
50%
2.7kW
3.0kVA
Efficiency: 95%
Battery status
Efciency and load group information
The following table describes the status information provided by the UPS
Note: If other indicator appears, see the troubleshooting for additional information.
Table 4. LCD Operating Status
Operation status Cause Description
Standby mode
The UPS is Off, waiting for startup
command from user.
Equipment is not powered until
button is pressed.
Online mode
The UPS is operating normally. The UPS is powering and protecting the
equipment.
LCD Description
