Eaton FerrUPS FE User Manual

Eaton FERRUPS FE/QFE UPS (500 VA–18 kVA) Installation Guide S 164201403 Rev B
www.eaton.com/powerquality
17
Chapter 3 Setup
This chapter explains the requirements for setting up the UPS:
S UPS, external battery cabinet, and bypass switch dimensions
S Equipment clearances
S Location requirements
S Storage and operating environment
Dimensions
Table 1. FERRUPS FE/QFE 500 VA–3.1 kVA Dimensions
UPS Model
Dimensions (See Figure 1)
Height (A) Width (B) Depth (C)
500 VA, 700 VA, and 850 VA 12I (30.5 cm) 10I (25.5 cm) 21.25I (54.0 cm)
1.15 kVA and 1.4 kVA 15.1I (38.5 cm) 15.2I (39.0 cm) 20.2I (51.5 cm)
1.8 kVA, 2.1 kVA, and 3.1 kVA 21.2I (54.0 cm) 15.25I (39.0 cm) 22.9I (58.5 cm)
E
A
B
C
F
D

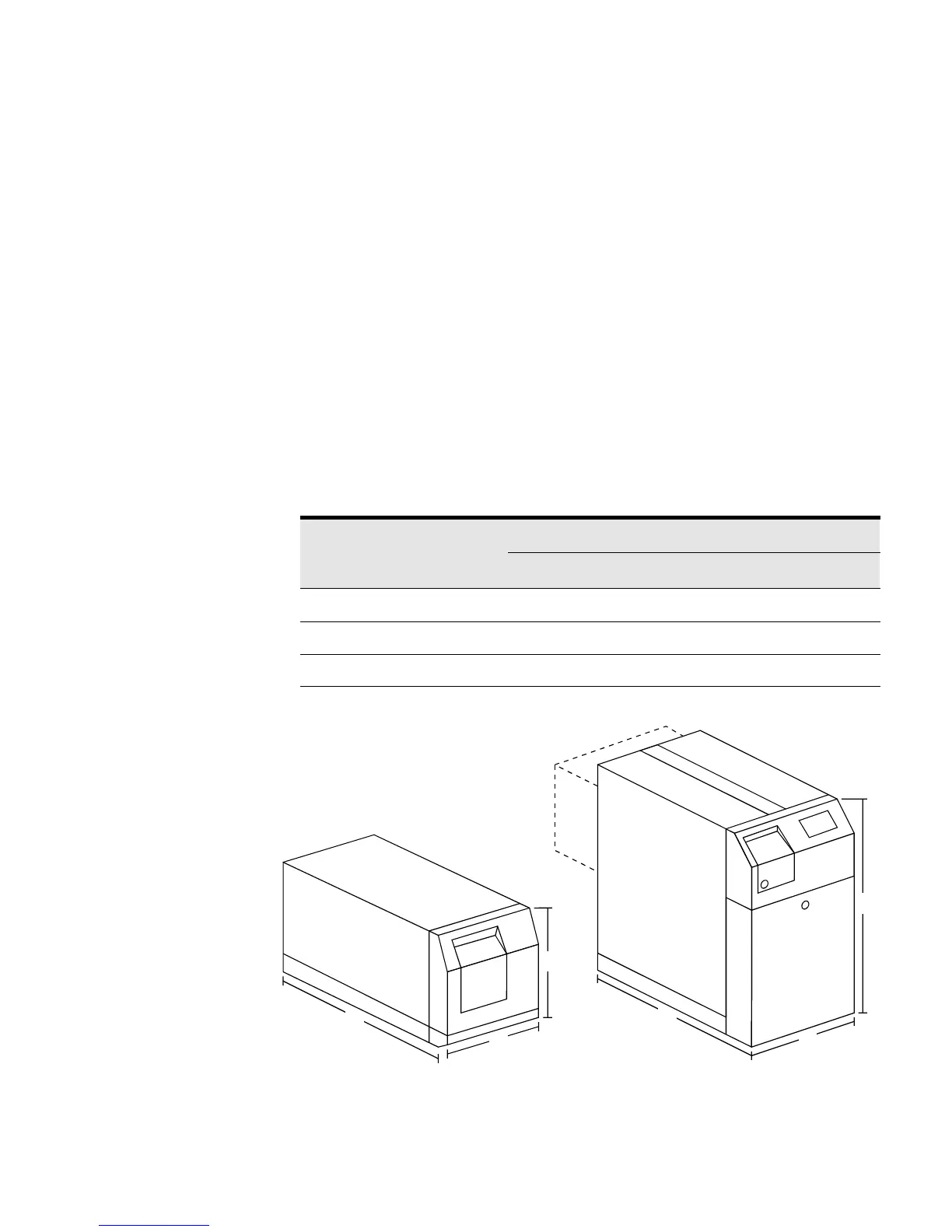

Figure 1. UPS Dimensions

Eaton FerrUPS FE Specifications

General

Frequency	60 Hz
Power Rating	700 VA
Battery Type	Sealed Lead-Acid
Typical Backup Time	5 minutes
Operating Temperature	0°C to 40°C
