Eaton FerrUPS FE User Manual

SETUP
Eaton FERRUPS FE/QFE UPS (500 VA–18 kVA) Installation Guide S 164201403 Rev B
www.eaton.com/powerquality
20
Equipment Clearances
All cabinet sizes require the following clearances to allow for servicing
and adequate ventilation:
Table 5. Clearances for the UPS and External Battery Cabinets
Dimensions (see Figure 4)
Sides (G) Front (H) Top (I) Back (J)
36I (91.5 cm) 36I (91.5 cm) 12I (30.5 cm) 4I (10.0 cm)
NOTE A minimum clearance of 4I (10.0 cm) is required on the sides, front, and back and
12I (30.5 cm) above the UPS for proper ventilation.
NOTE For 4.3–18 kVA models with an internal bypass switch, measure from the back of
the switch.
J
I
I
G
G
H
H

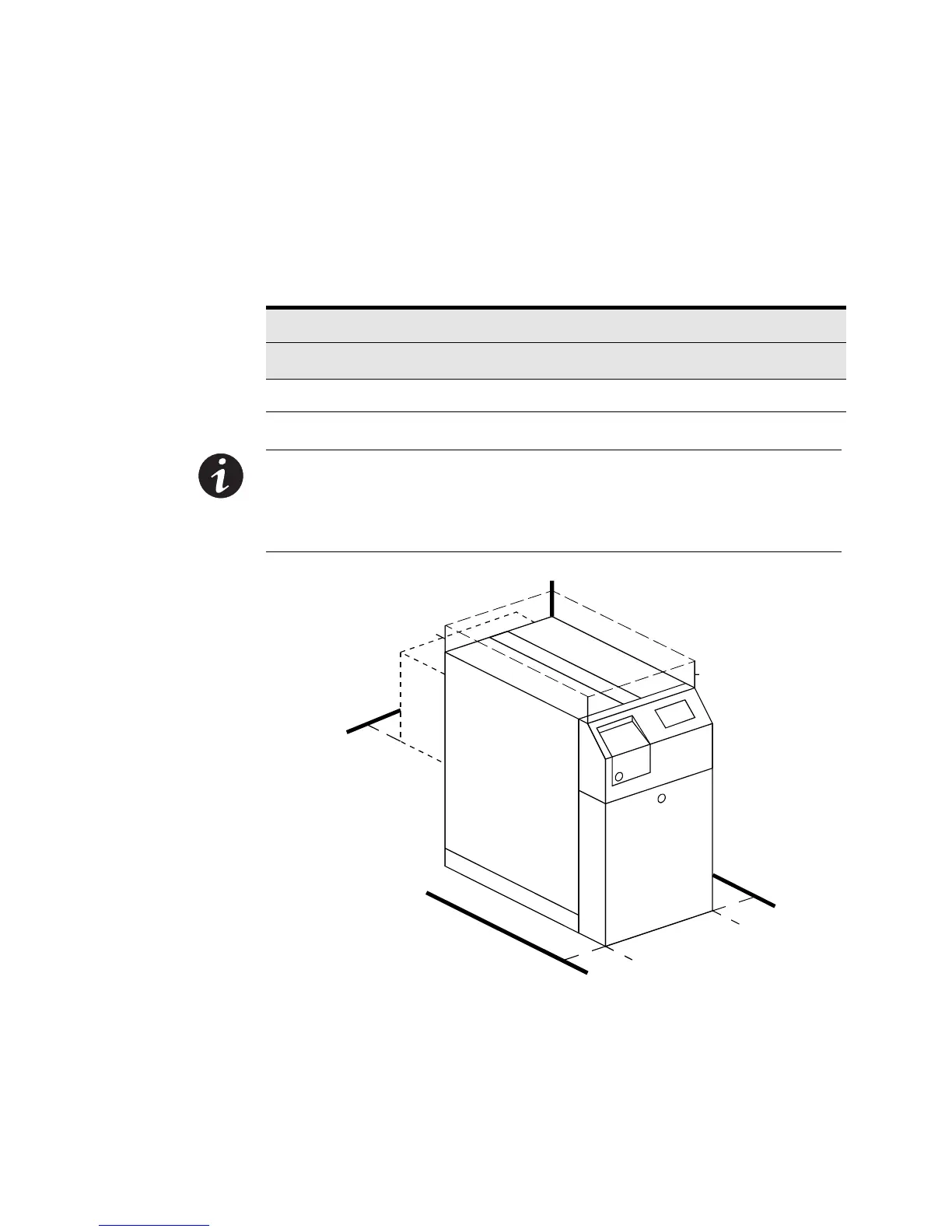

Figure 4. Installation and Service Clearances
