Overview
Topic Page
Matrix Inverter System 1
Modules 2
Part Numbers 5
Matrix Inverter System

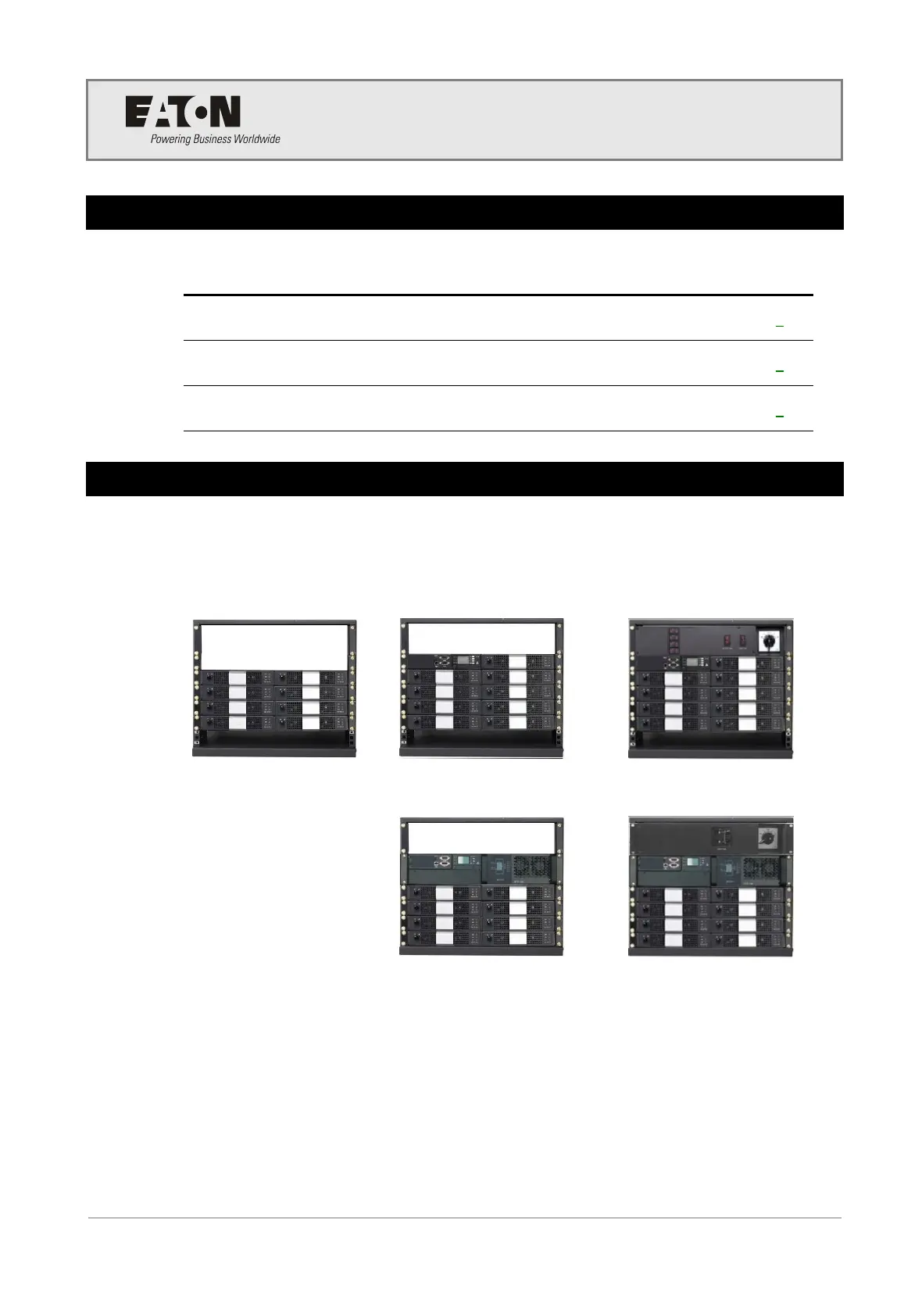

The Matrix Telecom Inverter System is an integrated AC power system, including inverter,
either 50A or 100A static transfer switch, controller/interface and either 50A or 100A
maintenance bypass switch modules.
Its modular, building block design and N+1 redundant configuration, make the Matrix suitable
for critical telecommunication and industrial applications.
1kVA/1.5kVA Inverter
N+1
1kVA/1.5kVA Inverter N+1
with 50A STS & controller
1kVA/1.5kVA Inverter N+1 with
50A STS, controller & PDU
1kVA/1.5kVA Inverter N+1
with 100A STS & controller
1kVA/1.5kVA Inverter N+1 with
100A STS, controller & PDU
