13
www.eaton.com/wireless
call toll free: 1-800-663-8806 DM-R260-0056A R1

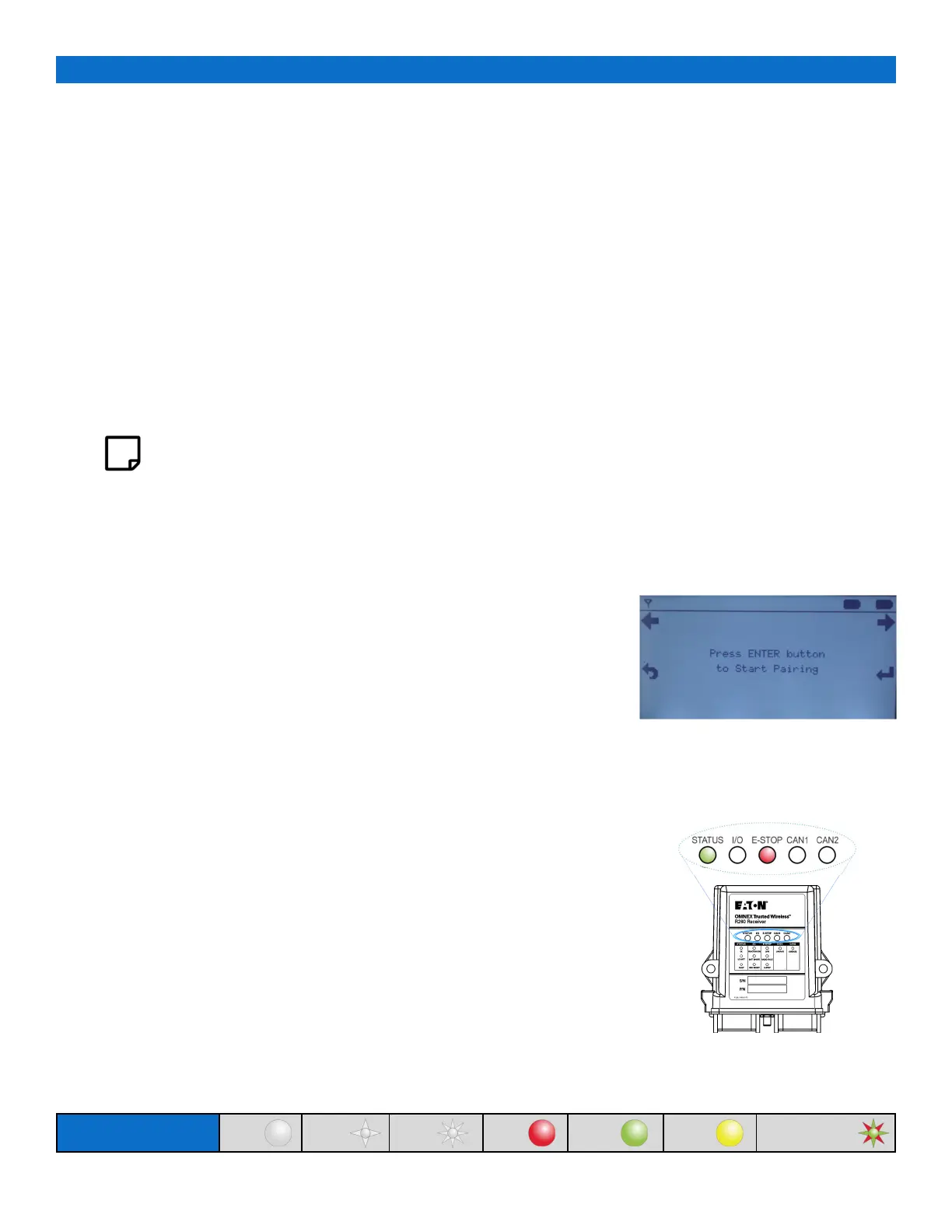

Service Mode: Pairing
Pairing
This function allows you to pair the TD3100 with a Base Station.
Pairing is required to teach a RCU’s unique configuration to a Base Station. Once complete the Base Station is capa-
ble of establishing a two-way radio link with a unique RCU.
Pairing is a three step process
1. Prepare the TD3100.
2. Prepare the R260 Base Station.
3. Start Pairing.
The following sections describes the three step process to pair the TD3100 with an R260 Base Station. Refer to Trou-
bleshooting Chart #4 for Tips and Considerations.
1. Prepare the TD3100
On the TD3100 navigate to the screen on the right . Do not press
[ENTER] at this time.
NOTE: It is necessary to associate the RCU to Base Station when replacing either the RCU or Base Sta-
tion.
2. Prepare the R260 Base Station
There are two methods to prepare the R260
A. Using the magnet on the wand (sold separately).
B. Opening the R260 housing and manually initiating the pairing state.
The following section deals with method A. Refer to Appendix A if you
need to perform the manual method B then proceed to step 3 Start Pairing.
2.1. Power R260
Supply power to the Base Station. The Base Station is ready when its
lights
Status: solid green
E-Stop: solid red
Light Legend
Solid
Slow
Flash
Fast
Flash
Red
Solid
Green
Solid
Red & Green
Alternating
Yellow
Solid
To Next Page
