Service Mode: Modify Parameters
Modify Parameters
This function allows you to modify the TD3100 operational parameters:
Active Backlight Brightness
Inactive Backlight Brightness
Backlight On Time
Auto Backlight Mode
Transmitter Timeout
Press [ENTER] to adjust these parameters. Press the top left or top right navigation button to move to the next ser-
vice option. The available service option, in order of navigation, are displayed to the right.
The following sections describe each Modify Parameters adjustment in detail.
Active Backlight Brightness
When a button is pressed the backlight will switch to an active state and
light the display at a configured brightness.
The active backlight brightness is configurable from 0 to 100% in incre-
ments of 10%. The backlight is off at 0% and maximum brightness at
100%. The default value is 15%.

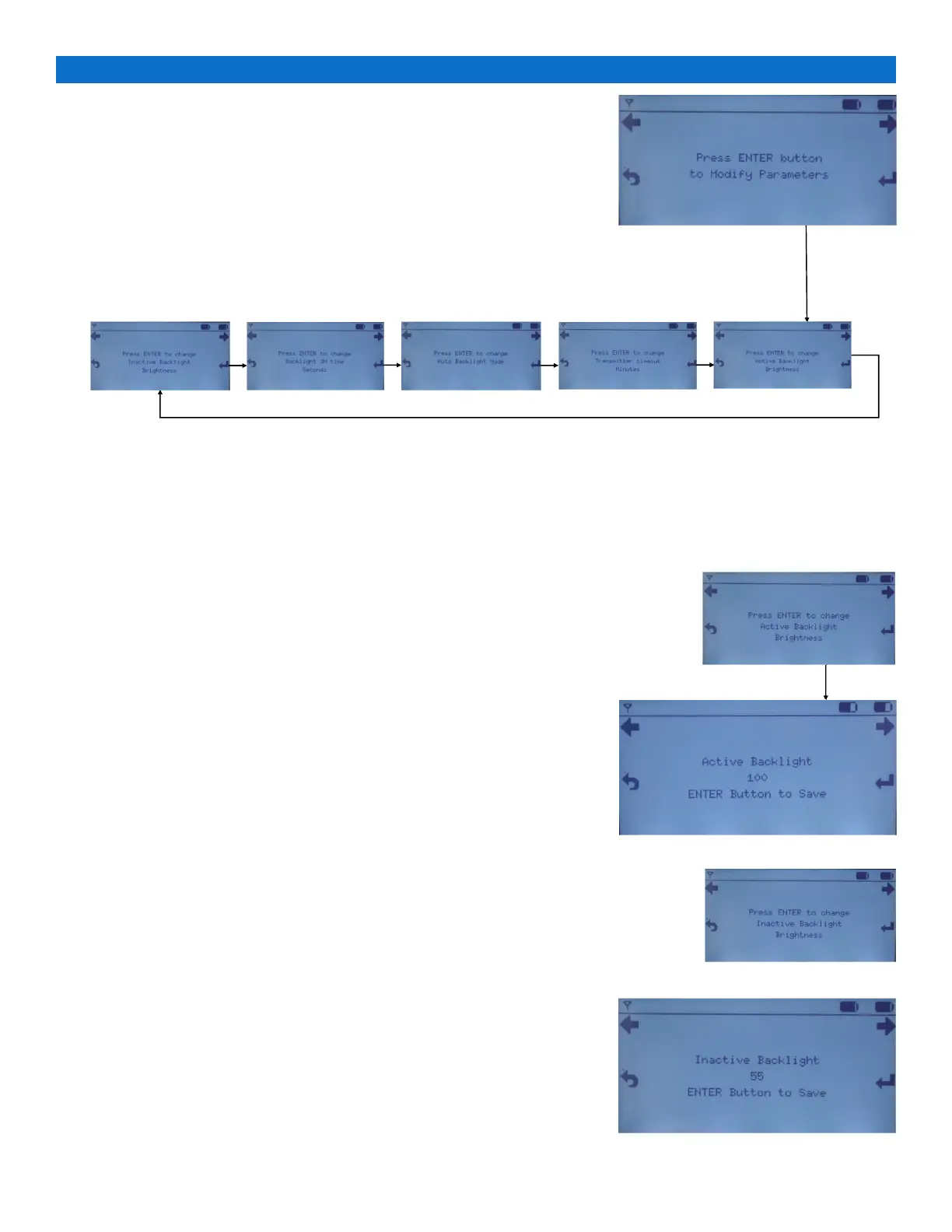

To adjust the backlight brightness navigate to the screen on the right
.
Press the top left button to decrease the brightness by 10%. Press the top
right button to increase the brightness by 10%.
Press and release [ENTER] to save your changes. Press and release
[EXIT] to abort any changes and return to the previous menu.
Inactive Backlight Brightness
The backlight inactive state occurs when no button has been pressed after
the backlight on time has passed. The inactive backlight brightness is con-
figurable from 0 to 100% in increments of 10%. The default value is 0% or
backlight OFF.
To adjust the backlight brightness navigate to the screen on the right
.
Press the top left button to decrease the brightness by 10%. Press the top
right button to increase the brightness by 10%.
Press and release [ENTER] to save your changes. Press and release
[EXIT] to abort any changes and return to the previous menu.
