20
www.eaton.com/wireless
call toll free: 1-800-663-8806 DM-R260-0056A R1
Service Mode: Calibrate Controls
Calibrate Controls
This service mode allows you to calibrate the different controls (paddles, joy-
sticks, pots, etc.) installed on your TD3100.

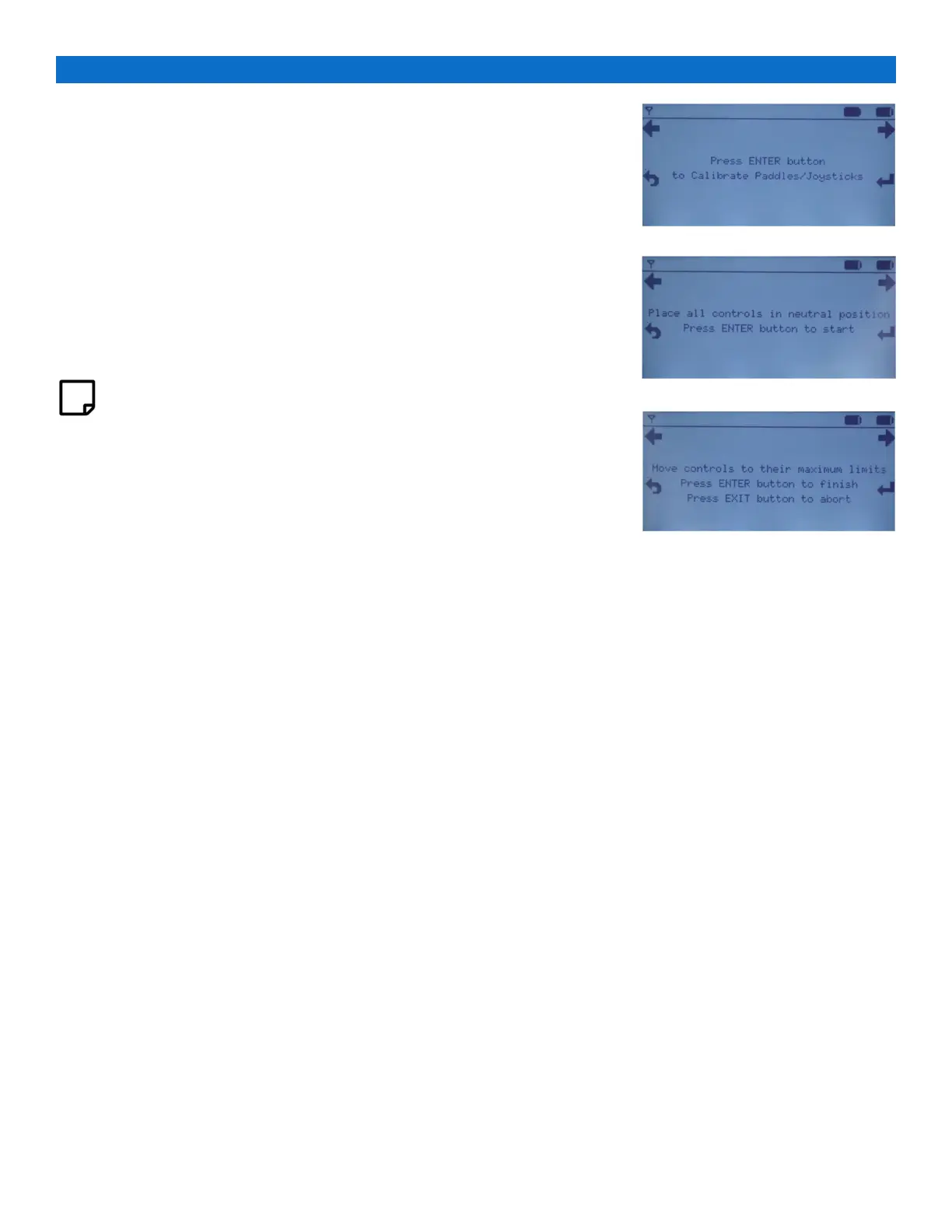

1. To calibrate the controls navigate to the screen on the right
. Press
[ENTER] to start
2. Move all controls to neutral (safe) position
3. Press [ENTER]
4. Move all controls to their respective maximum positions (make sure
they reach their end points) and return to neutral. For best results re-
peat this for each control 2-3 times.
5. Press [ENTER] to save or Press [EXIT] to discard any changes
NOTE:
If one or more controls have been replaced, only the replaced con-
trols need to be calibrated.
If any controls not to be calibrated are accidentally moved, make
sure they get calibrated properly following the above steps.
Calibrated range can be reduced by selecting end points that are
not at mechanical stops, this is particularly useful for calibrating
pots.
