CHAIN BRAKE SYSTEM
CS-370ES
CS-420ES
52

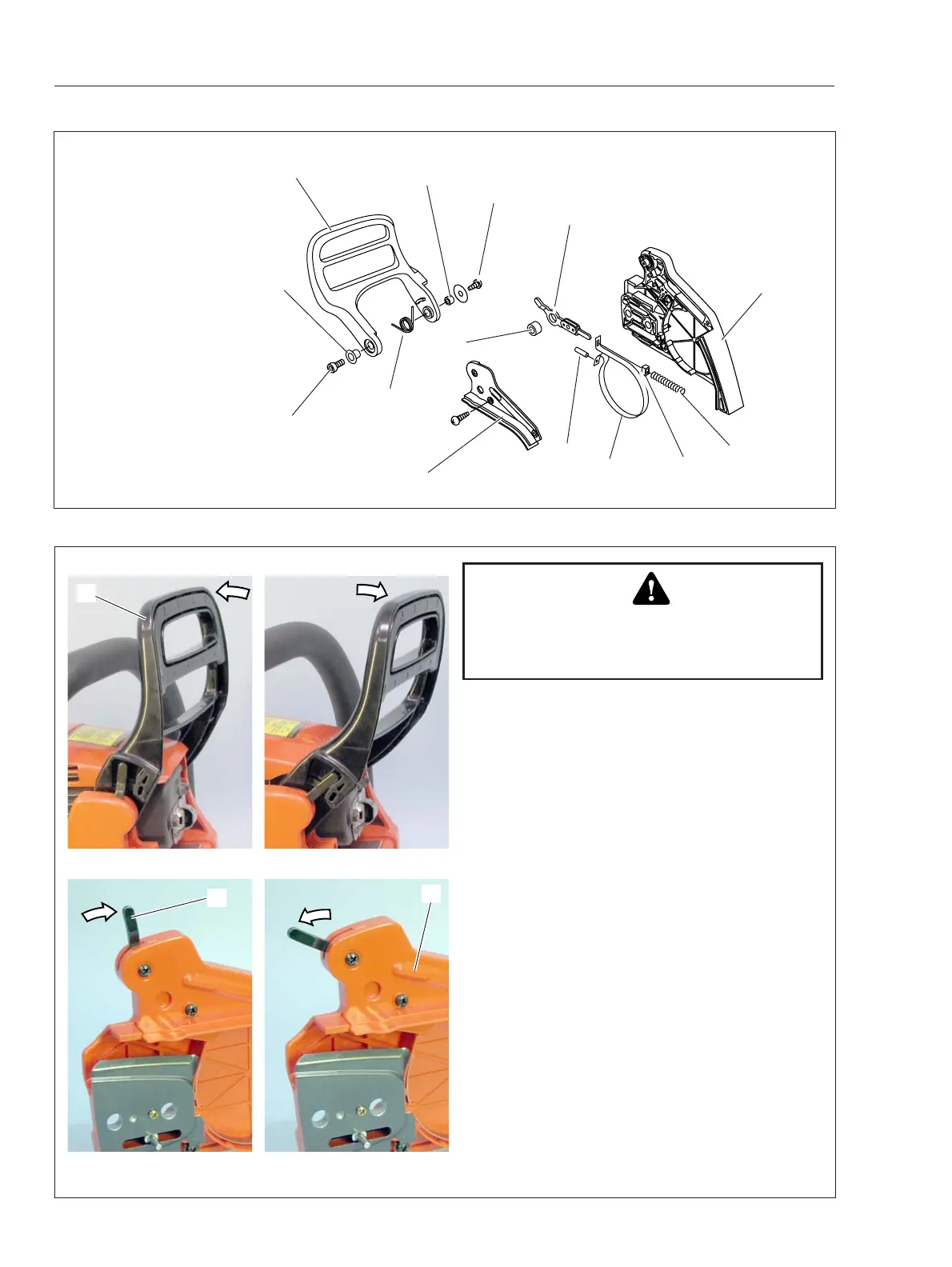

8-1 Disassembling chain brake
WARNING DANGER
Wear eye protection and safety gloves, when
disassembling or assembling chain brake to
prevent eye, and hand, from injury.
1. Move brake lever (A) to released position.
Remove sprocket guard from the unit.
2. Move lever (B) of sprocket guard to engaging
position.
NOTE: Make sure that lever (B) is in engaging
position before removing brake cover (C), otherwise
compression spring may jump out.
3. Loosen three screws securing brake cover (C)
and remove brake cover.
4. Inspect all the brake parts for damage. Replace
them as required.
8 CHAIN BRAKE SYSTEM
(A)
(M)
(N)
(B)
(C)
(J)
(F)
(G)
(E)
(L)
(H)
(K)
(D)
(A) Brake lever
(B) Screw
(C) Collar
(D) Collar
(E) Bolt
(F) Torsion spring
(G) Brake cover
(H) Brake connector
(I) Spacer
(J) Roller
(K) Brake band
(L) Spacer
(M) Compression spring
(N) Sprocket guard
A
Released position Engaging position
B
C
(I)
