8-2 Assembling brake parts

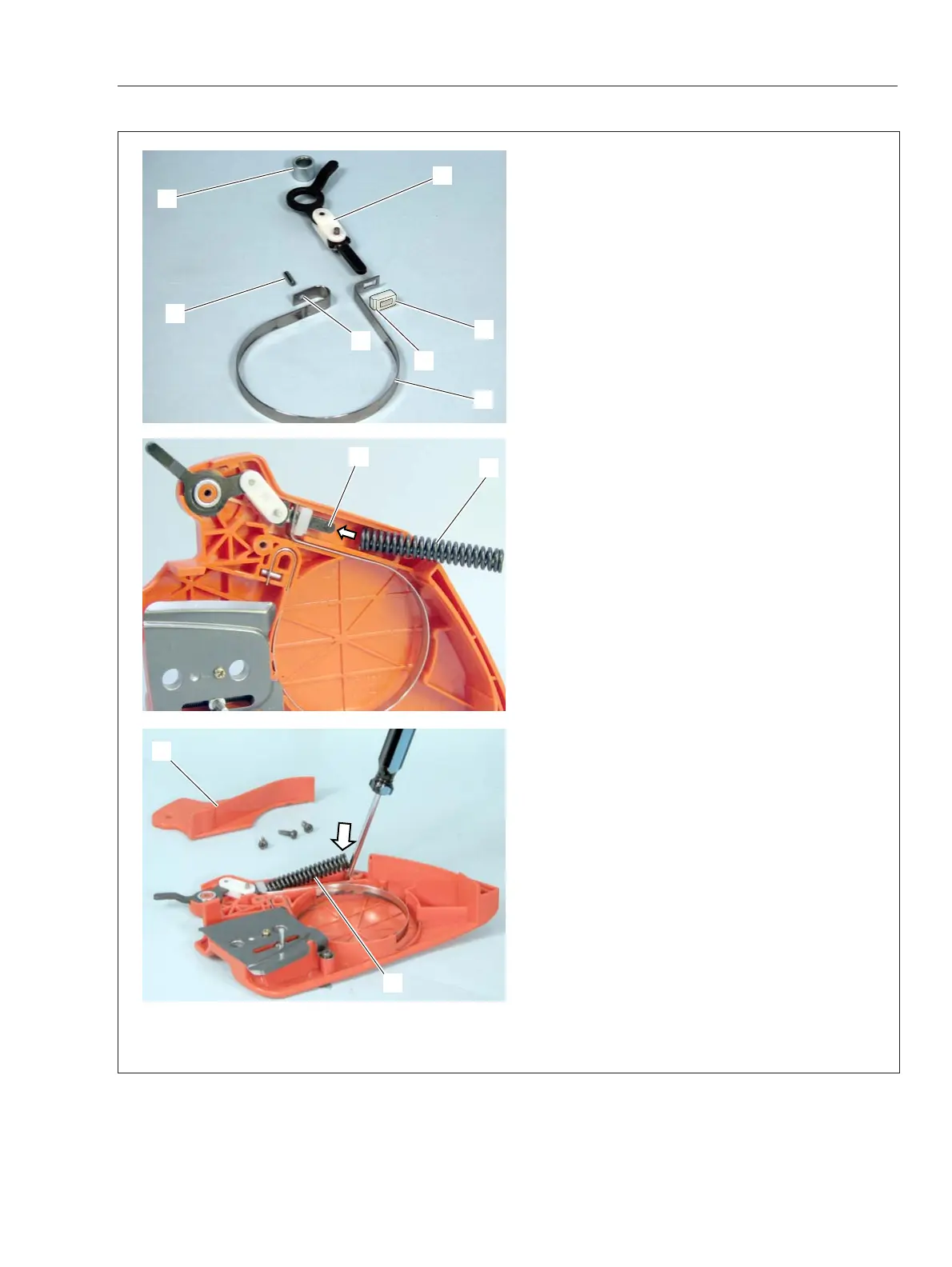

1. Assemble brake band (A) together with spacer
(B), brake connector (C) and collar (D), placing the
notch (b) of spacer as shown. Install roller (E)
through brake band hole (F).
2. Set the above assembly into sprocket guard as
shown. Slide in compression spring (G) to the end
(H) of brake connector as shown.
3. Install compression spring (G) into sprocket guard
using flat-blade screwdriver as shown.
4. Apply molybdenum grease on whole of
compression spring (G) and other friction parts.
5. Install brake cover (J).
