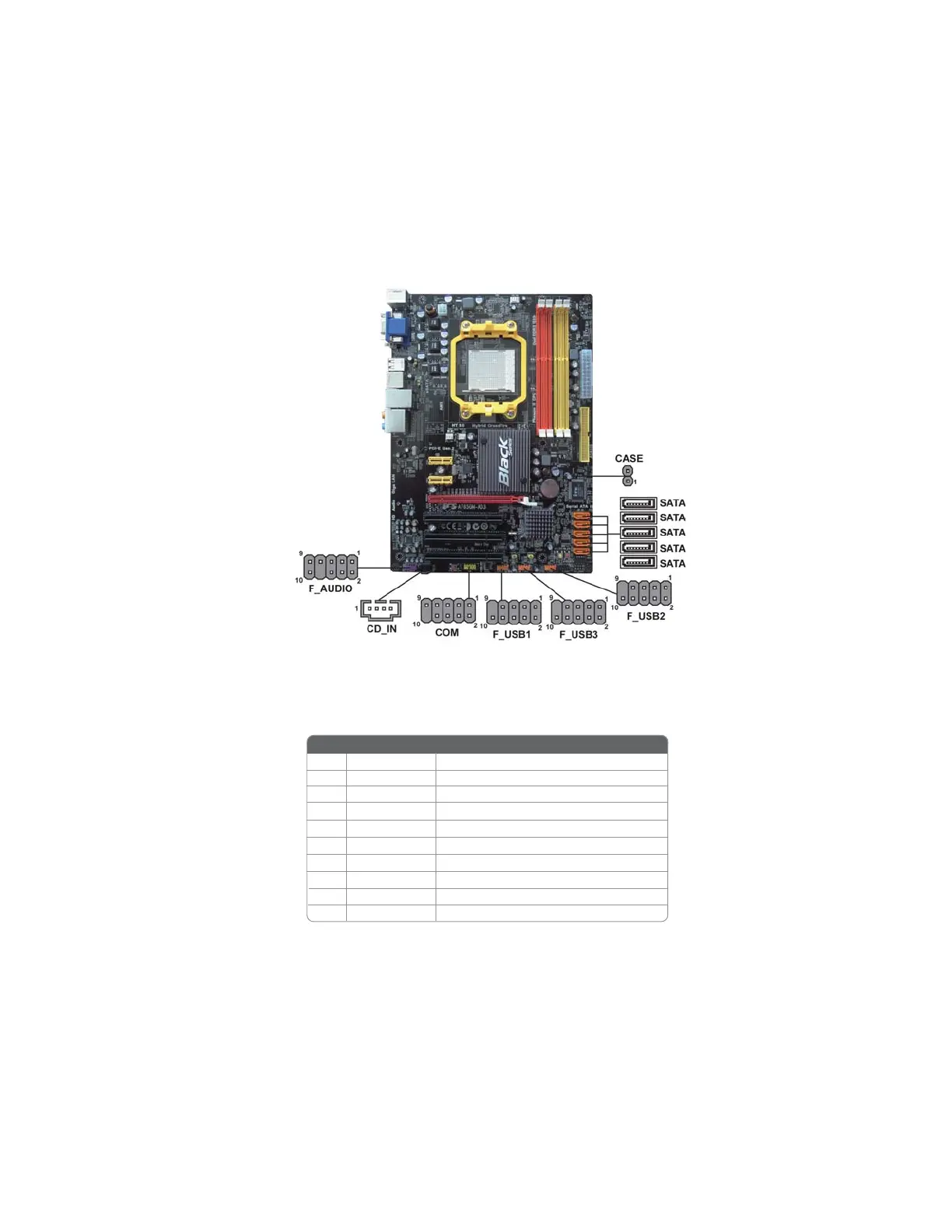

Installing the Motherboard

Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

COM: Onboard serial port header

Connect a serial port extension bracket to this header to add a serial port to your

system.

1 DCDB Data Carrier Detect

2 SINB Serial Input

3 SOUTB UART B Serial Output

4 DTRB UART B Data Terminal Ready

5 GND Ground

6 DSRB Data Set Ready

7 RTSB RART B Request to Send

8 CTSB Clear to Send

9 RI Ring Indicator

10 Key No pin

Pin Signal Name Function

Questions and Answers:

Need help?

Do you have a question about the ECS A785GM-AD3 and is the answer not in the manual?

ECS A785GM-AD3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	5
PS/2 ports quantity	2
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	-
Audio chip	Realtek ALC888S
Certification	ROHS, EuP
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista, 7
PCI slots	3
Maximum graphics card memory	512 MB
RAID levels	0, 1
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit
