ECS A785GM-AD3 User Manual

28
Using BIOS
Press the delete key to access the BIOS Setup Utility.
Resetting the Default CMOS Values

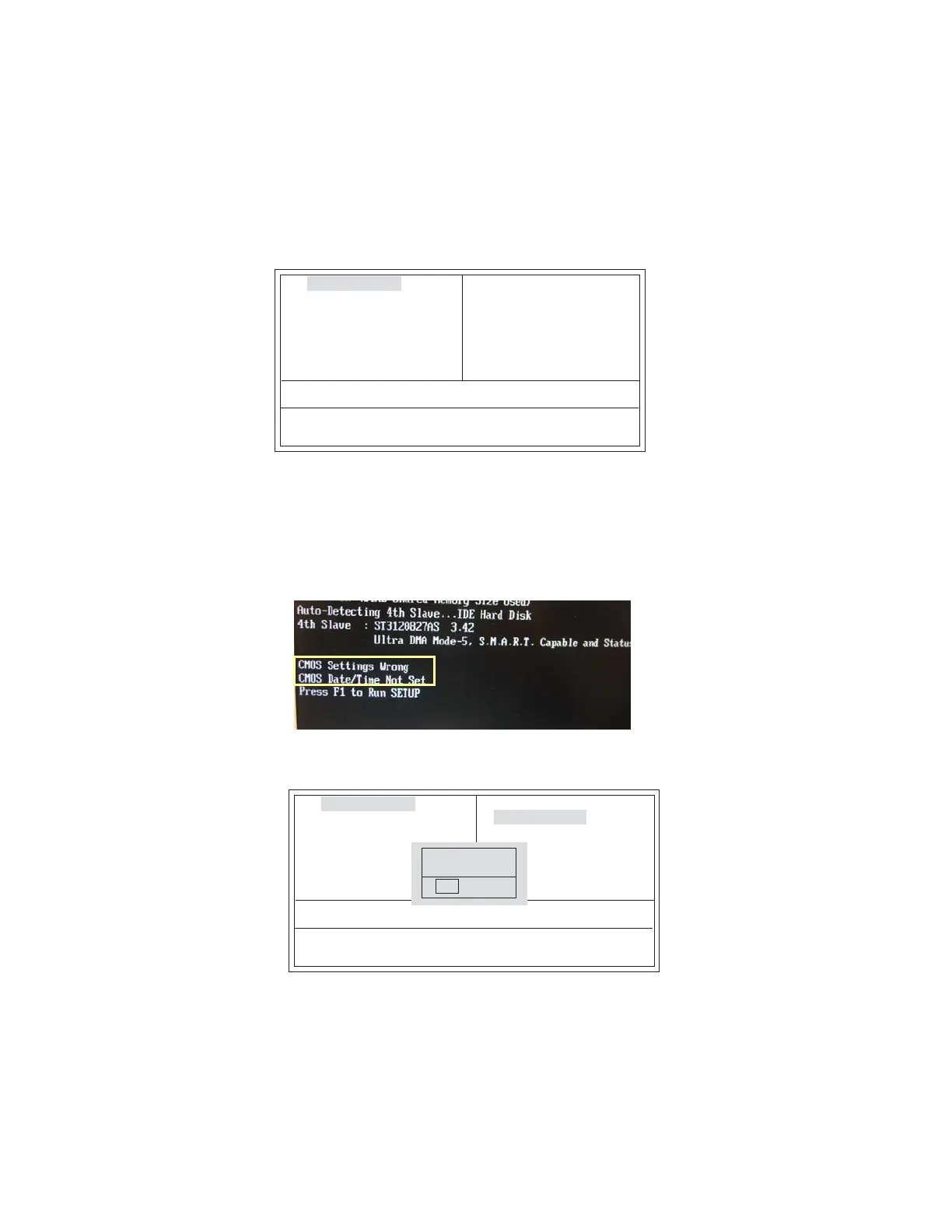

When powering on for the first time, the POST screen may show a “CMOS
Settings Wrong” message. This standard message will appear following a clear
CMOS data at factory by the manufacturer. You simply need to Load Default
Settings to reset the default CMOS values.
Note: Changes to system hardware such as different CPU, memories, etc. may also
trigger this message.
CMOS Setup Utility -- Copyright (C) 1985-2005, American Megatrends, Inc.
f
f
f
f
v02.62 (C)Copyright 1985-2007, American Mega trends, Inc.
f
: Move F10: Save ESC: Exit
+/-/: Value
Enter : Select
F9: Default settings
F1:General Help
f
f
f
Standard CMOS Setup
Advanced Setup
Advanced Chipset Setup
Integrated Peripherals
Power Management Setup
PCI/PnP Setup
PC Health Status
M.I.B.II (MB Intelligent BIOS II)
Load Default Settings
Supervisor Password
User Password
Save & Exit Setup
Exit Without Saving
f
f
mnlk
CMOS Setup Utility -- Copyright (C) 1985-2005, American Megatrends, Inc.
f
f
f
f
v02.62 (C)Copyright 1985-2007, American Mega trends, Inc.
f
: Move F10: Save ESC: Exit
+/-/: Value
Enter : Select
F9: Default settings
F1:General Help
f
f
f
Standard CMOS Setup
Advanced Setup
Advanced Chipset Setup
Integrated Peripherals
Power Management Setup
PCI/PnP Setup
PC Health Status
M.I.B.II (MB Intelligent BIOS II)
Load Default Settings
Supervisor Password
User Password
Save & Exit Setup
Exit Without Saving
f
f
mnlk
Load Default Setting?
[Ok] [Cancel]

ECS A785GM-AD3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	5
PS/2 ports quantity	2
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	-
Audio chip	Realtek ALC888S
Certification	ROHS, EuP
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista, 7
PCI slots	3
Maximum graphics card memory	512 MB
RAID levels	0, 1
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	220 mm
Width	305 mm
