ECS A785GM-AD3 User Manual

53
AMD RAID Configuration
Setting Up a bootable RAID Array
This section explains how to configure a bootable AMD RAID array.
Setting Up the BIOS
Use the arrow keys to select Integrated Peripherals (see Figure 1.1), then
press Enter.
The Integrated Peripherals screen (or a screen similar to it) appears.

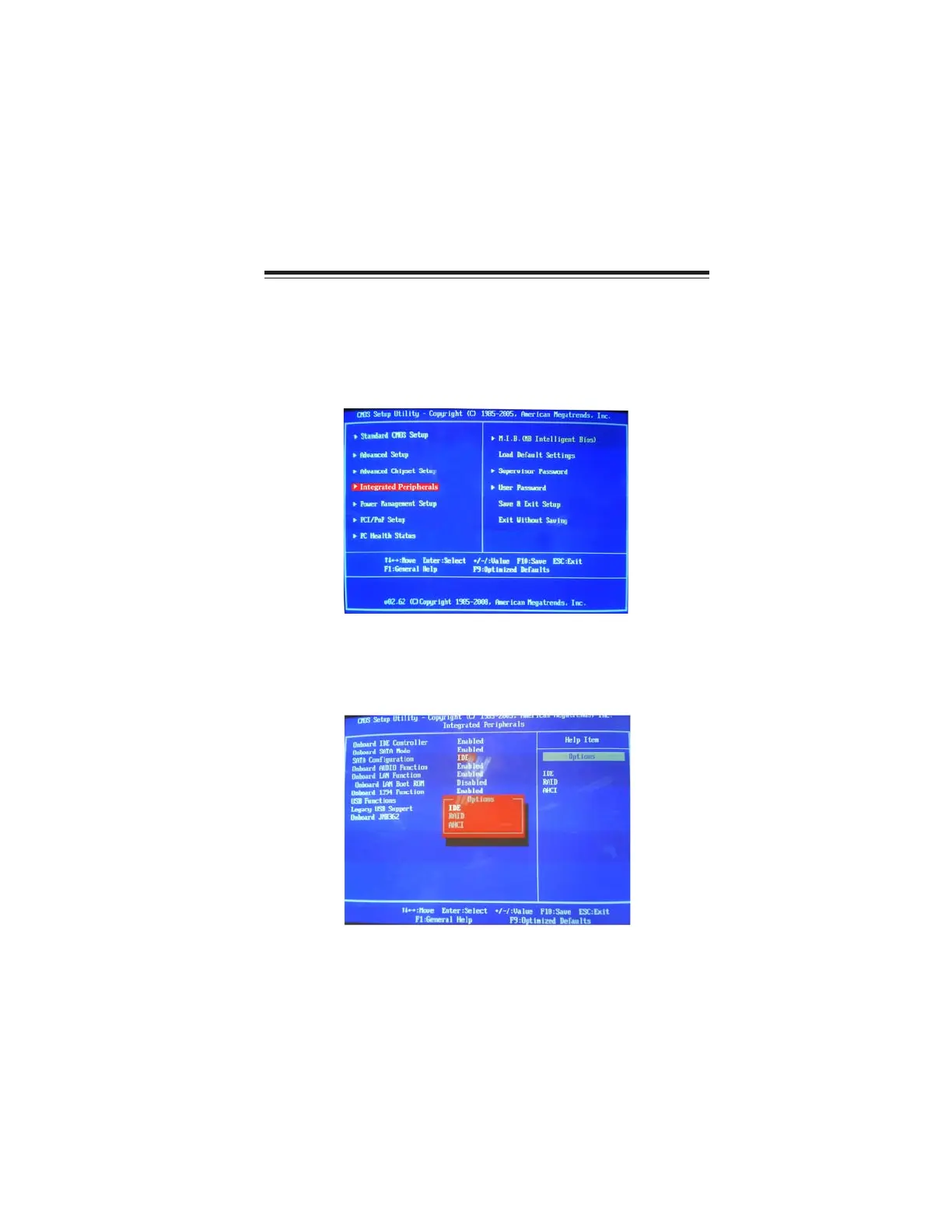

Figure 1.2 Integrated Peripherals Screen
Use the arrow keys to select the SATA Configuration (see Figure 1.2) and
globally set SATA Configuration to RAID.
Start your computer, then press Delete to enter the BIOS setup.
The BIOS CMOS Setup Utility screen appears.
Figure 1.1 BIOS CMOS Setup Utility Main Screen
1
2
3
Chapter 6
Setting Up AMD SB710 RAID Configuration

ECS A785GM-AD3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	5
PS/2 ports quantity	2
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	-
Audio chip	Realtek ALC888S
Certification	ROHS, EuP
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista, 7
PCI slots	3
Maximum graphics card memory	512 MB
RAID levels	0, 1
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	220 mm
Width	305 mm
