ECS H61H2-TI User Manual

Chapter 1
6
H61H2-TI USER MANUAL

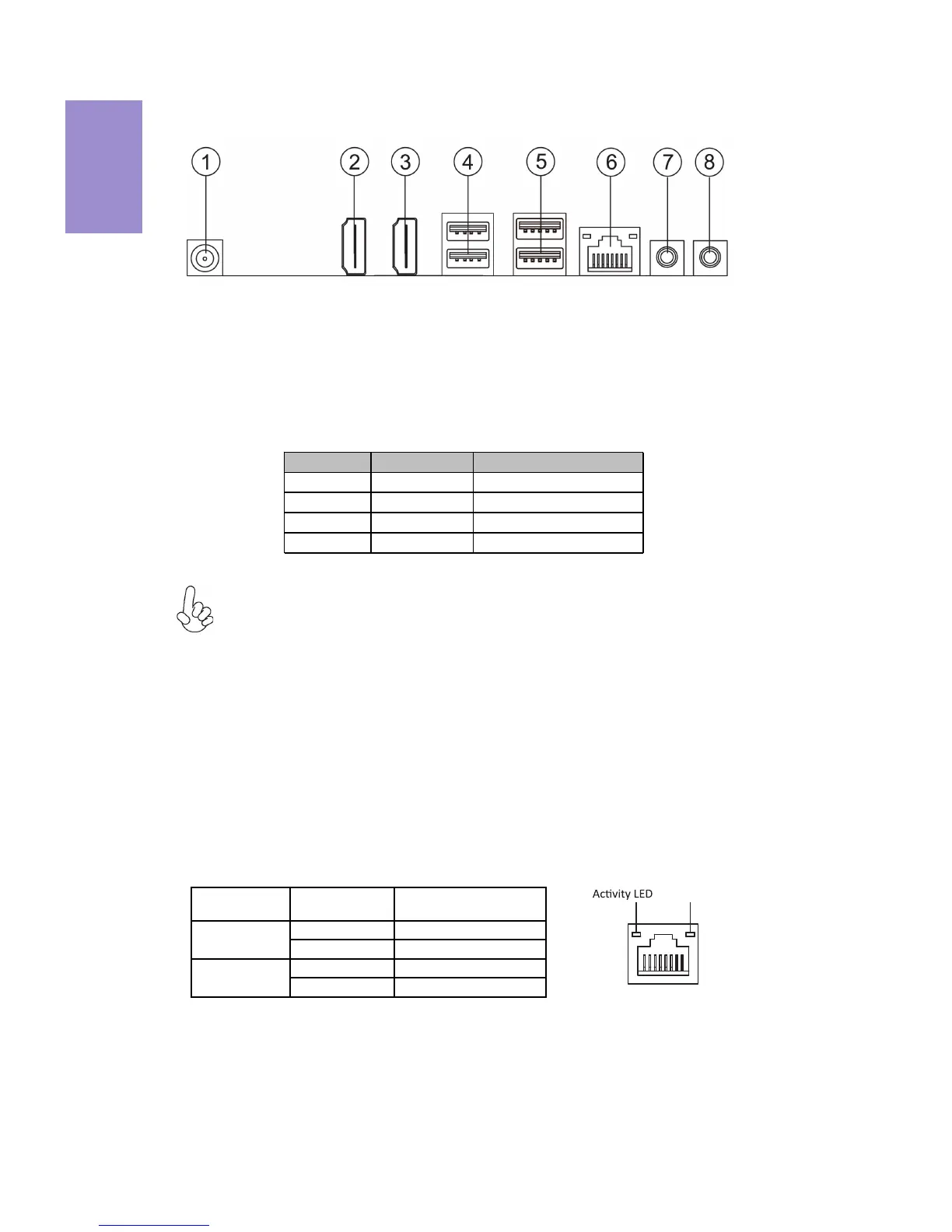

I/O Ports
1. DC_IN Port
Connect the DC_IN port to the power adapter.
2. HDMI_IN Port (optional)
You can connect the HDMI output of other computer or other HDMI source to the
HDMI_IN port.
3. HDMI Port
You can connect the display device to the HDMI port.
4. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
5. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. Line-out (lime)
It is used to connect to speakers or headphones.
8. Microphone (pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
PC HDMI_IN port LCD_MODE button pulse
Power ON Un-plugged
PC

LCD off
Power OFF Plugged
HDMI

LCD off
Power ON Plugged
PC

HDMI

LCD off
Power OFF Un-plugged LCD off
1. Please press button to switch the mode manually, it will not be
automatically switched when inserting the HDMI cable.
2. When HDMI_IN is in use, front panel audio header will be invalid.

ECS H61H2-TI Specifications

General

Brand	ECS
Model	H61H2-TI
Category	Motherboard
Language	English
