6-2. Attaching the Optional Arm
An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our
web site for the supported optional arm (or optional stand). www.eizoglobal.com
Attention
• When attaching an arm or stand, follow the instructions of the respective User’s Manual.
• When using another manufacturer’s arm or stand, conrm the following in advance and select one conforming to
the VESA standard.
- Clearance between screw holes: 100 mm × 100 mm
- VESA mount of the arm or stand, external dimensions: 122 mm x 122 mm or less
- Plate thickness: 2.6 mm
- Strong enough to support weight of the monitor unit (excluding the stand) and attachments such as cables.

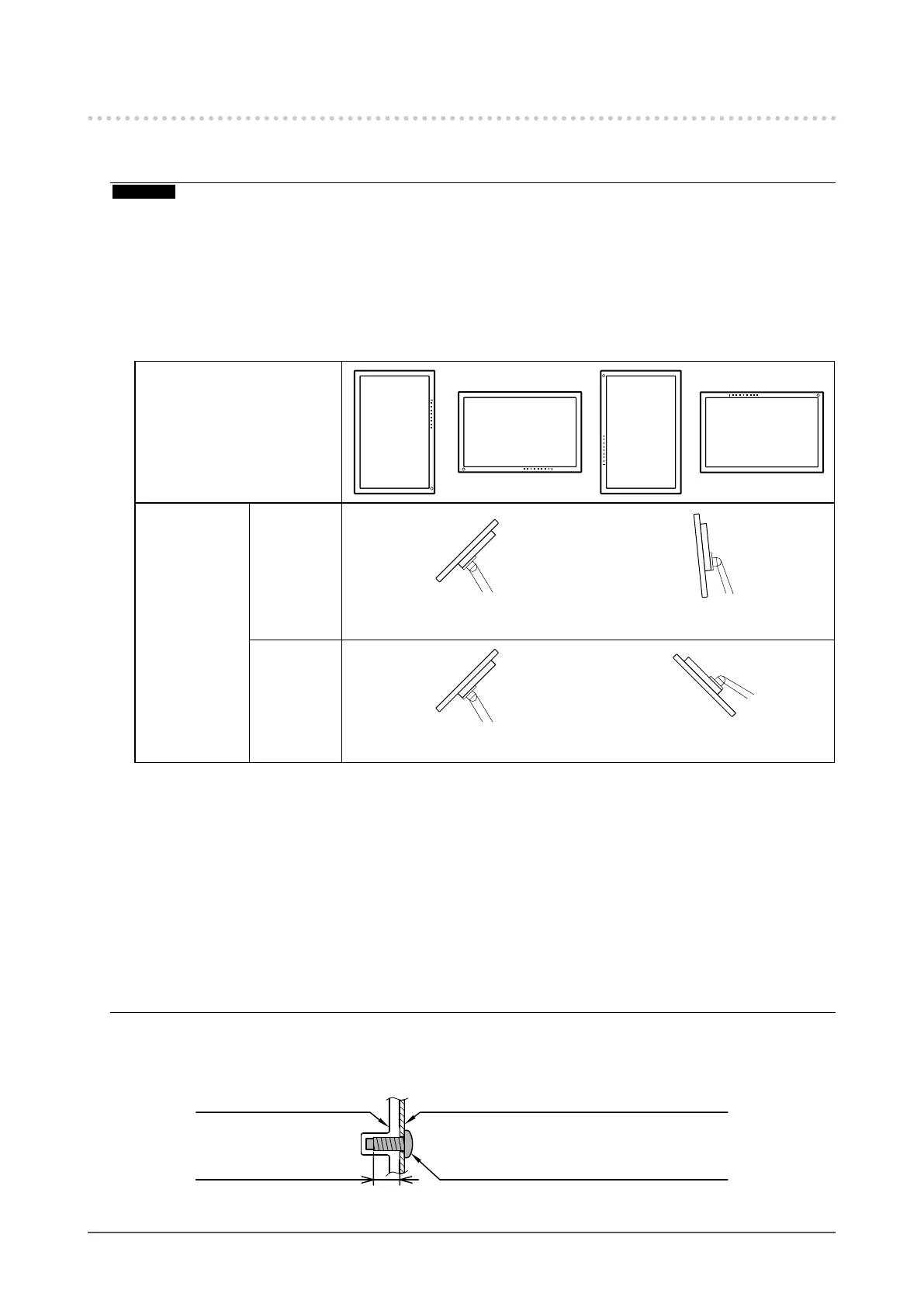

• When attaching an arm or stand, the installable orientations and movement range (tilt angle) are as follows:
Orientation
*1
Movement range
(tilt angle)
Without edge
support
Up: 45˚ Down: 5˚
With edge
support
Up: 45˚ Down: 45˚ *
2
*1 If you position the monitor facing in this direction, clean the power connector and the surrounding area
regularly. If dust, water, oil, or other materials adhere to the device, it can cause a re.
*2 When installing at a downward angle of between 5° and 45°, the warranty is valid only if an edge support
has been attached. Not using an edge support when installed in these positions may lead to the front
panel of the monitor coming o󰀨.
If you require an edge support, please contact the EIZO group company or distributor in your country or
territory. www.eizoglobal.com/contact/
• Connect the cables after attaching an arm or stand.
• Do not move the removed stand up and down. Doing so may result in injury or device damage.
• The monitor, arm, and stand are heavy. Dropping them may result in injury or equipment damage.
• Check periodically that the screws are tight enough. If the screws are not tight enough, the monitor may come
unattached. This may be the cause of injury or damage.
1.
Attach the arm or stand to the monitor.
For installation, use commercially available screws that meet the following conditions.
Cabinet VESA mount of the arm or stand (2.6 mm)
Effective length
5 mm to 8 mm
M4 screw
33
