7-2. Attaching the Optional Arm
By removing the stand from the monitor, it is possible to attach the monitor to a dierent arm or stand.
Attention
• When attaching an arm or stand, follow the instructions of the respective User’s Manual.
• When using another manufacturer’s arm or stand, conrm the following in advance and select one conforming to
the VESA standard. Use the VESA mounting screws supplied with this product when attaching the arm or stand.
- Clearance between screw holes: 100 mm × 100 mm
- VESA mount of the arm or stand, external dimensions: 122 mm x 122 mm or less (sizes larger than this cannot
be attached without interfering with the product).
- Plate thickness: 2.6 mm
- Strong enough to support weight of the monitor unit (excluding the stand) and attachments such as cables.

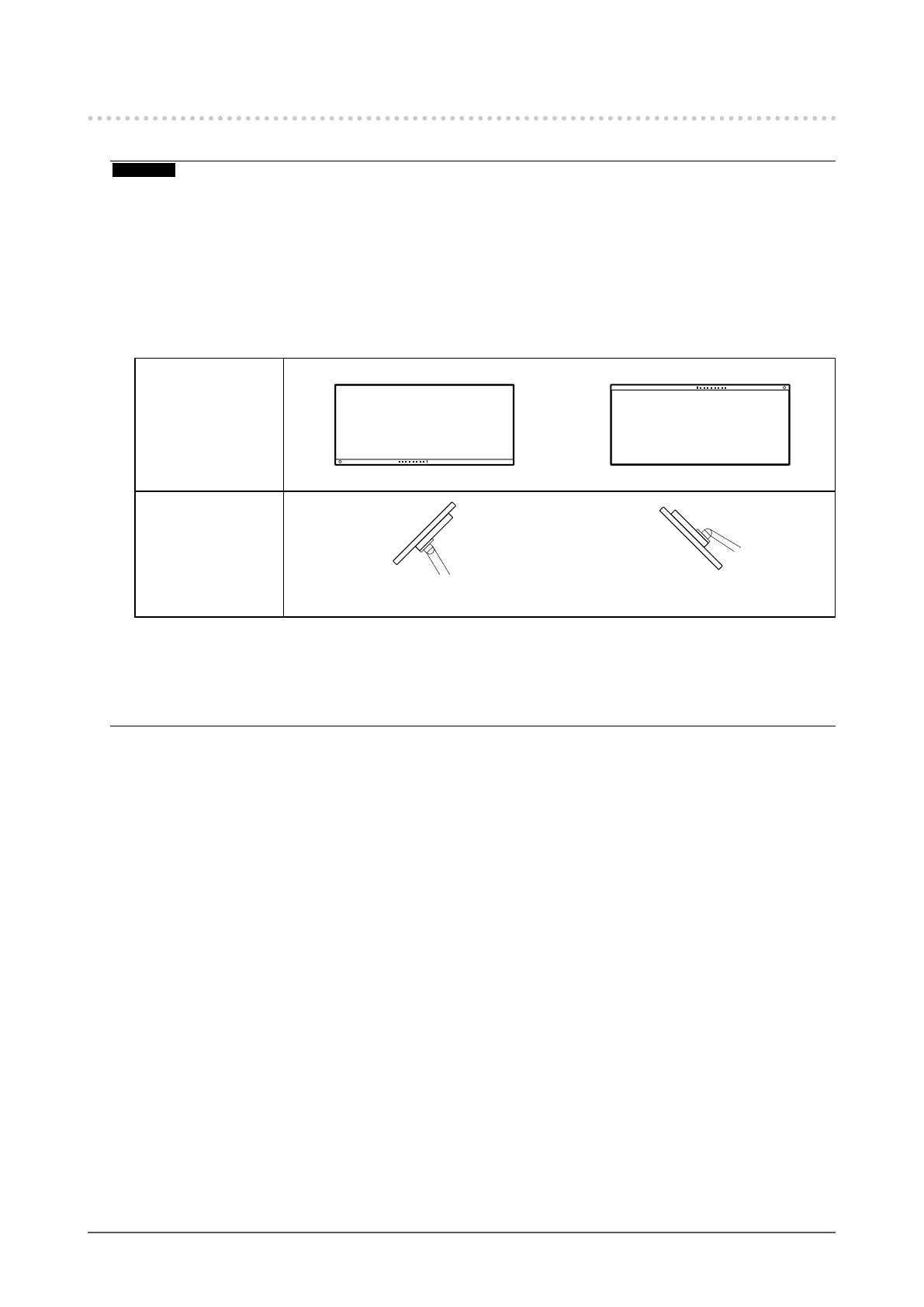

• When attaching an arm or stand, the installable orientations and movement range (tilt angle) are as follows:
Orientation
Movement range
(tilt angle)
Up: 45˚ Down: 45˚
• Connect the cables after attaching an arm or stand.
• Do not move the removed stand up and down. Doing so may result in injury or device damage.
• The monitor, arm, and stand are heavy. Dropping them may result in injury or equipment damage.
• Check periodically that the screws are tight enough. If the screws are not tight enough, the monitor may come
unattached. This may be the cause of injury or damage.
1.
Attach the arm or stand to the monitor.
Use the VESA mounting screws supplied with this product when attaching the arm or stand.
42
Chapter 7 Attaching/Removing the Stand
To Next Page
