13.2. Offset pressure calibration
For the adjustment of the offset pressure, connect a manometer with a resolution of 1 Pa (100 Pa=1 mbar)
to the offset pressure test point after loosening the sealing screw. To adjust the cavity gas valve offset, set
an hot air cycle, half power; to adjust the boiler gas valve offset select a steam cycle, half power. Wait
around 3 minutes for the stabilization of the pressure before adjusting it turning slowly the screw indicated
in the picture above.
13.3. Use of manometer (for offset pressure measure)

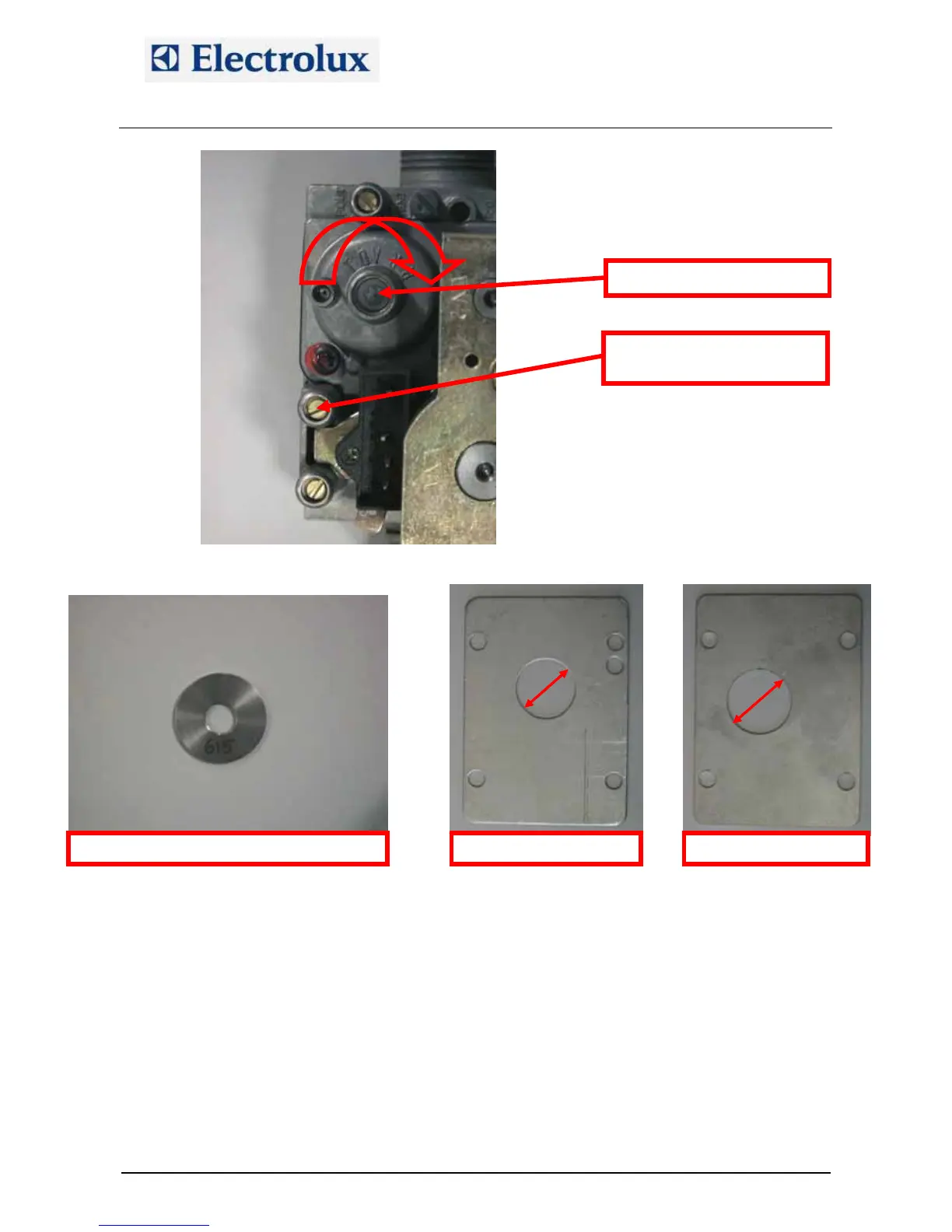

Offset pressure test point
Offset adjustment screw
+
-
Fi
g
. 23 - In
j
ector Fi
g
24 - LPG flan
g
e 1/1
21
Fi
g
. 25 - LPG flan
g
e 2/1
25
File: AOS service manual (ENG).008 ©Copyright 2002 by Electrolux Professional P.16/40
