Electrolux “DIVA” EDW 500 User Manual

SOI/TD 2004-11 PR 26 599 36 44-44
9/

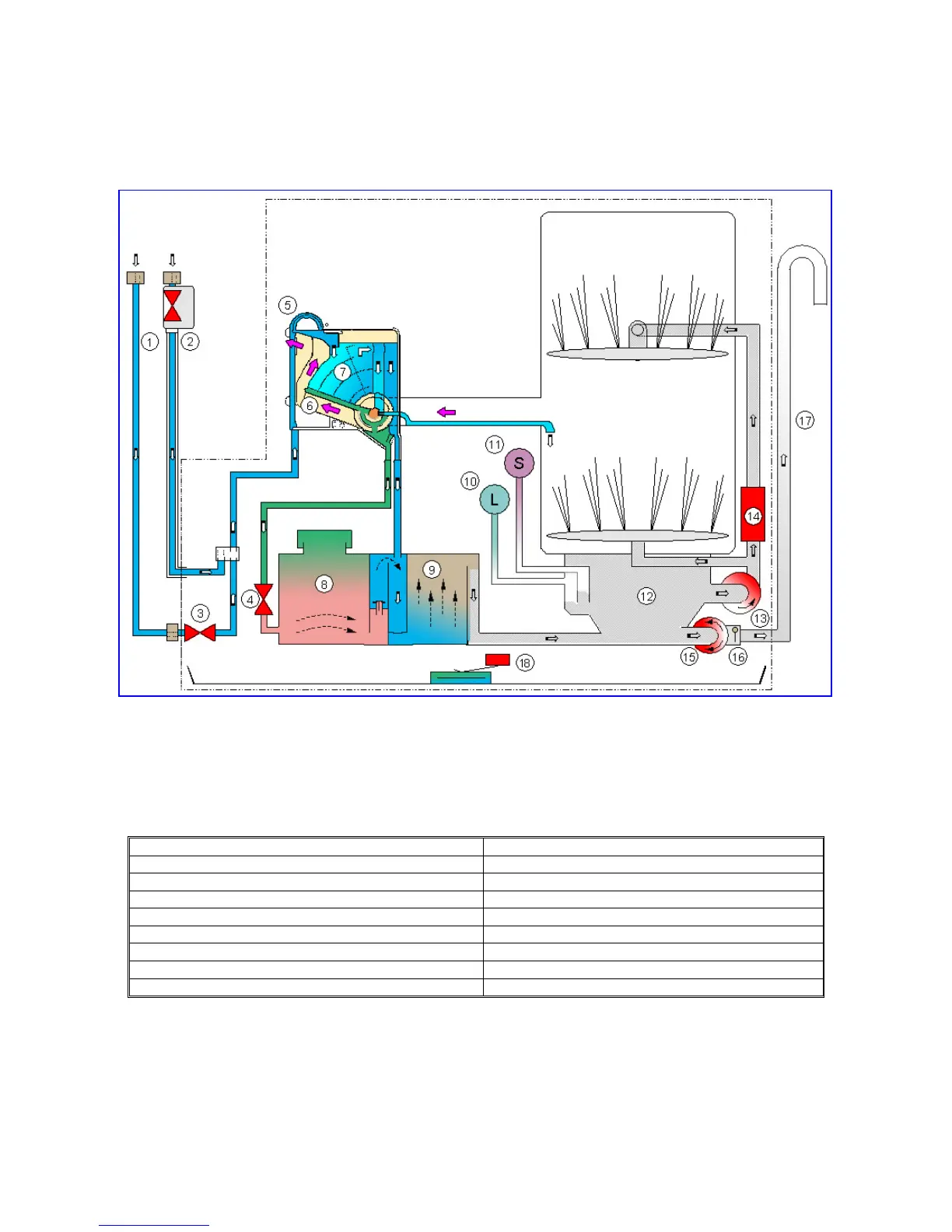

7 HYDRAULIC CIRCUIT
KEY
1 - Fill hose
10 - Level pressure switch
2 - Fill hose with Acquacontrol 11 - Anti-overflow pressure switch
3 - Fill solenoid 12 - Sump assembly
4 - Regeneration solenoid 13 - Wash pump
5 - Air-Break 14 - Tube-enclosed heating element
6 - Steam condenser 15 - Drain pump
7 - Regeneration chamber 16 - Non-return valve
8 - Salt Reservoir 17 - Drain hose
9 - Resin Reservoir 18 - Anti-flooding device
