- 10 -
DGS-TDS-N 11.06 R.B. © Electrolux 599 51 50 25 EN

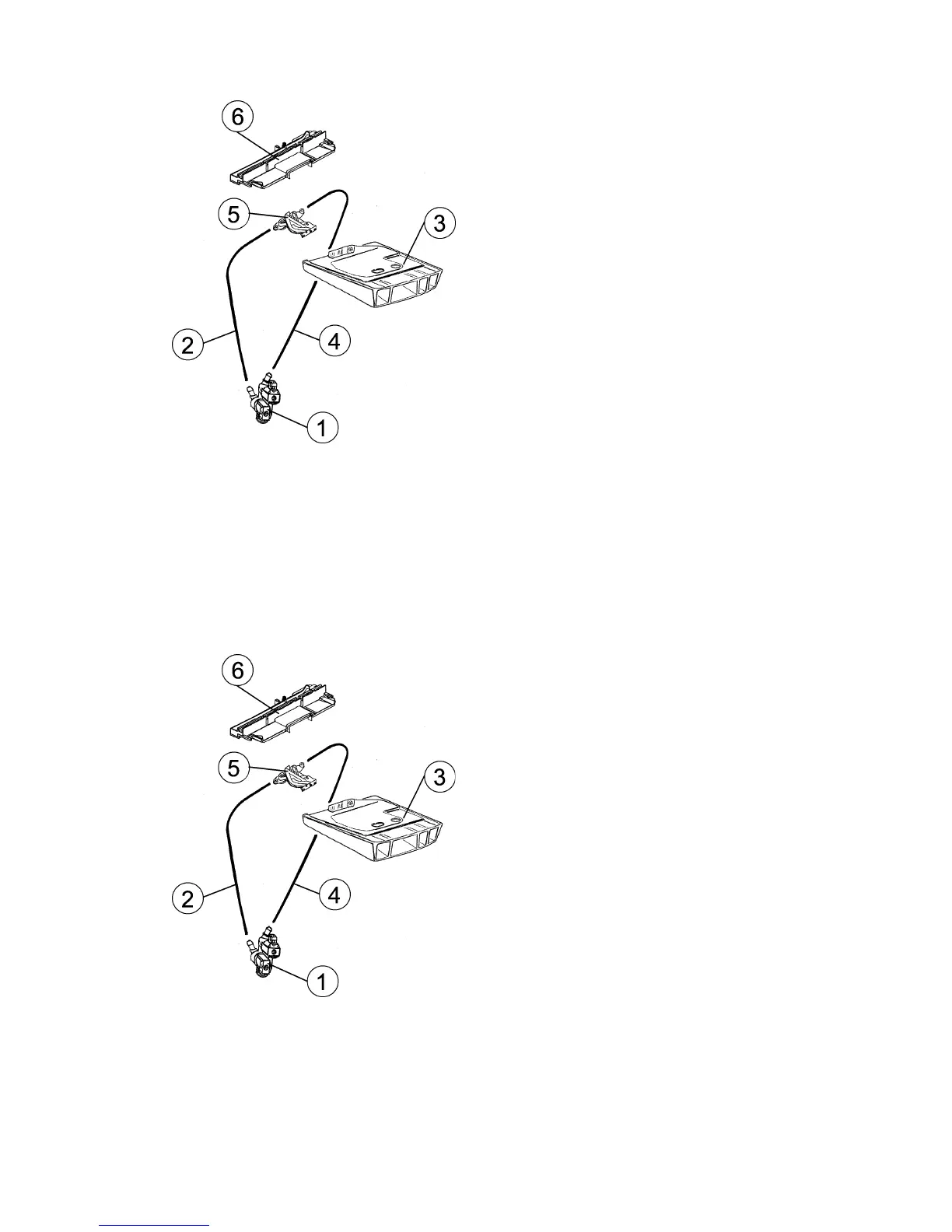

Water Inlet Valve for 3-chamber detergent box
1 - inlet valve, 2-fold
2 - hose for main wash
3 - 3-chamber detergent box
4 - hose for pre-wash
5 - water distributor
6 - water distributor cover
*) Attention!
The flushing into the prewash chamber goes via hose 4.
The flushing into the main wash chamber goes via hose 2.
The simultaneous filling through hoses 2 and 4 provides the fill-in through the softener chamber.
Water Inlet Valve for 4-chamber detergent box
*) Attention!
The flushing into the prewash resp. bleach chamber goes via hose 4.
This is possible due to a connecting channel in the flush-in chamber.
In doing so, approx. 75% water flows into the prewash chamber and aprox. 25% into the
bleach chamber.
It is not possible to select both options prewash and bleaching at the same time.
The flushing into the main wash chamber goes via hose 2.
The simultaneous filling through hoses 2 and 4 provides the fill-in through the softener chamber.
1 - inlet valve, 2-fold
2 - hose for main wash
3 - 4-chamber detergent box
4 - hose for pre-wash and bleach
5 - water distributor
6 - water distributor cover
