Pressure switch
Anti-flooding-device
The third pressure switch level is used as an anti-flooding safety device: if the pressure switch
contact should close in the FULL position, the PCB actions the drain pump until the pressure switch
returns to the EMPTY position.
Connection: 230V; 50Hz;
Power: 1950W
Fuse: 10A

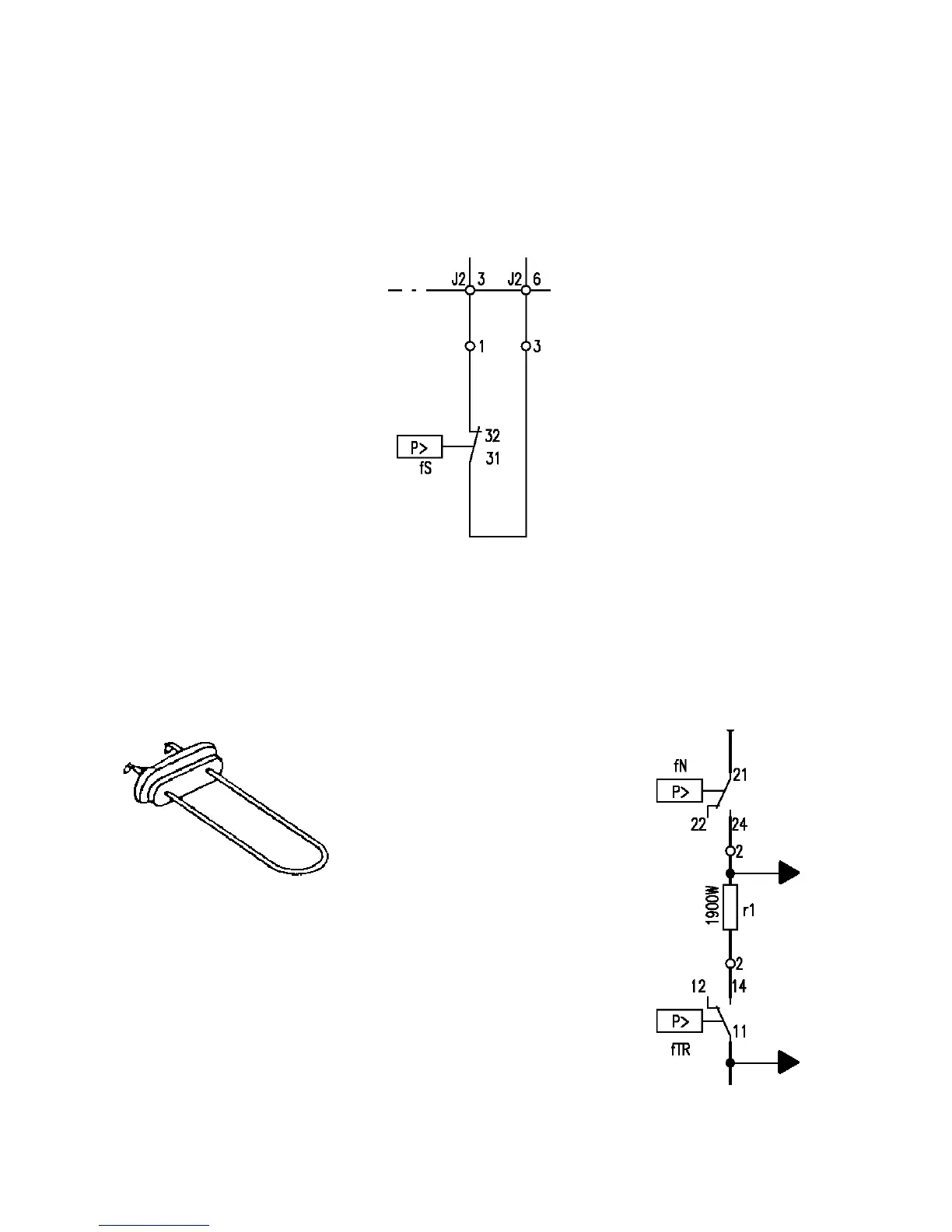

Heating element
The heating element is supplied with power directly from the control
electronics by means of a relay. For security reasons, 2 switching
contacts of the pressure switch are connected in series. The
switching positions are monitored by control electronics via 2 control
lines.
