P 2500 - P 500
24

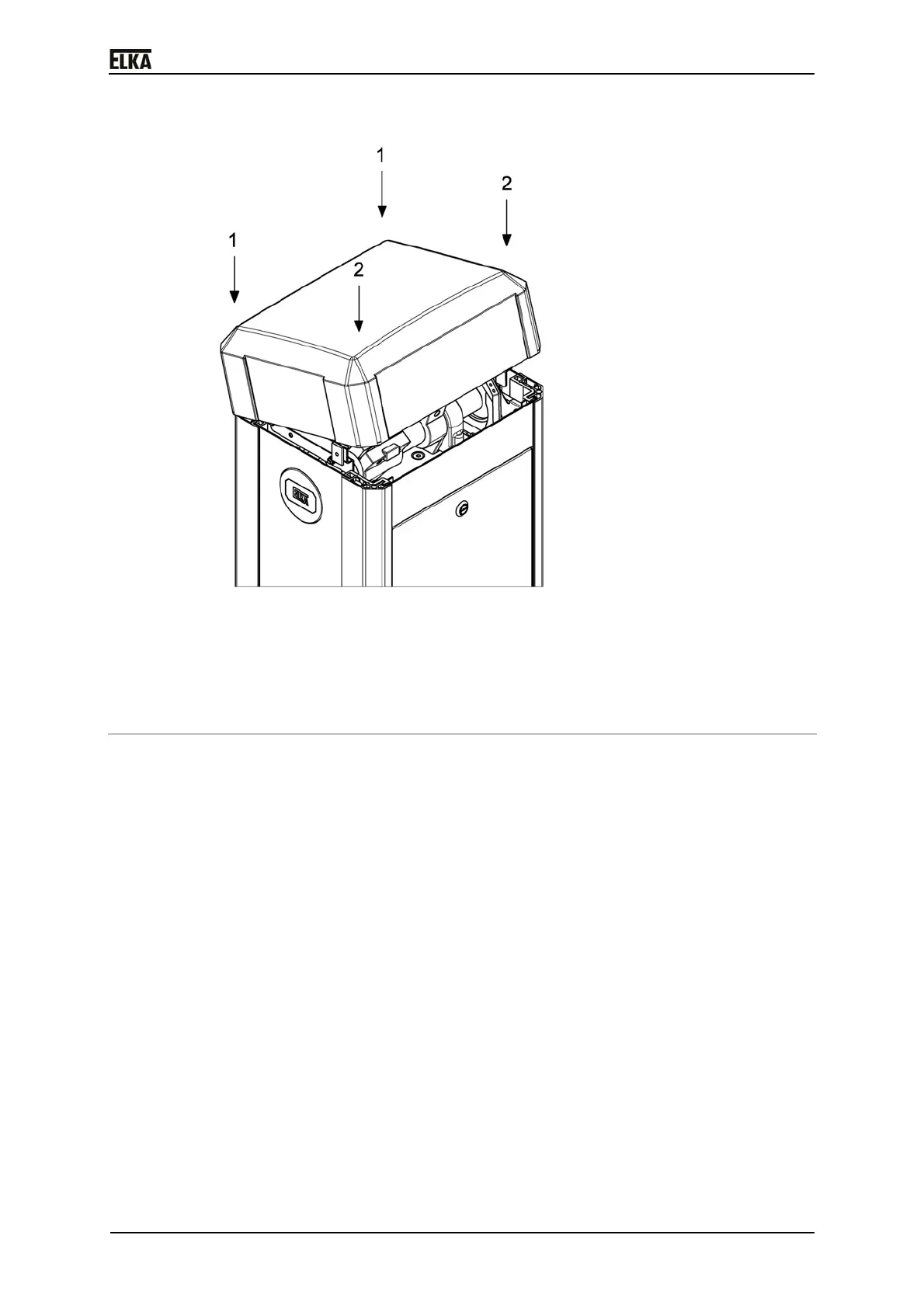

Installing the hood:
Drawing 8
1. Using both hands place the hood on the housing by first pressing he rear
guidance points (1), then the front guidance points (2).
2. The hood snaps into place with an audible click.
7.5 Boom connector
1. The boom connector can be mounted left or right (factory setting is
right).To fasten the boom connector, plug it without the clamping piece on
the main shaft. Pay attention to a perfect fit of the shaft seal at the
housing. Now connect the clamping piece using the four screws (M12x30
ISO4762). Tighten the screws only so far that an alignment of the boom
connector on the main shaft is still possible.
