7.9 Accessories
7.9.1 Swinging support P 4000 - P 5000
1. Move the barrier boom into the horizontal position.

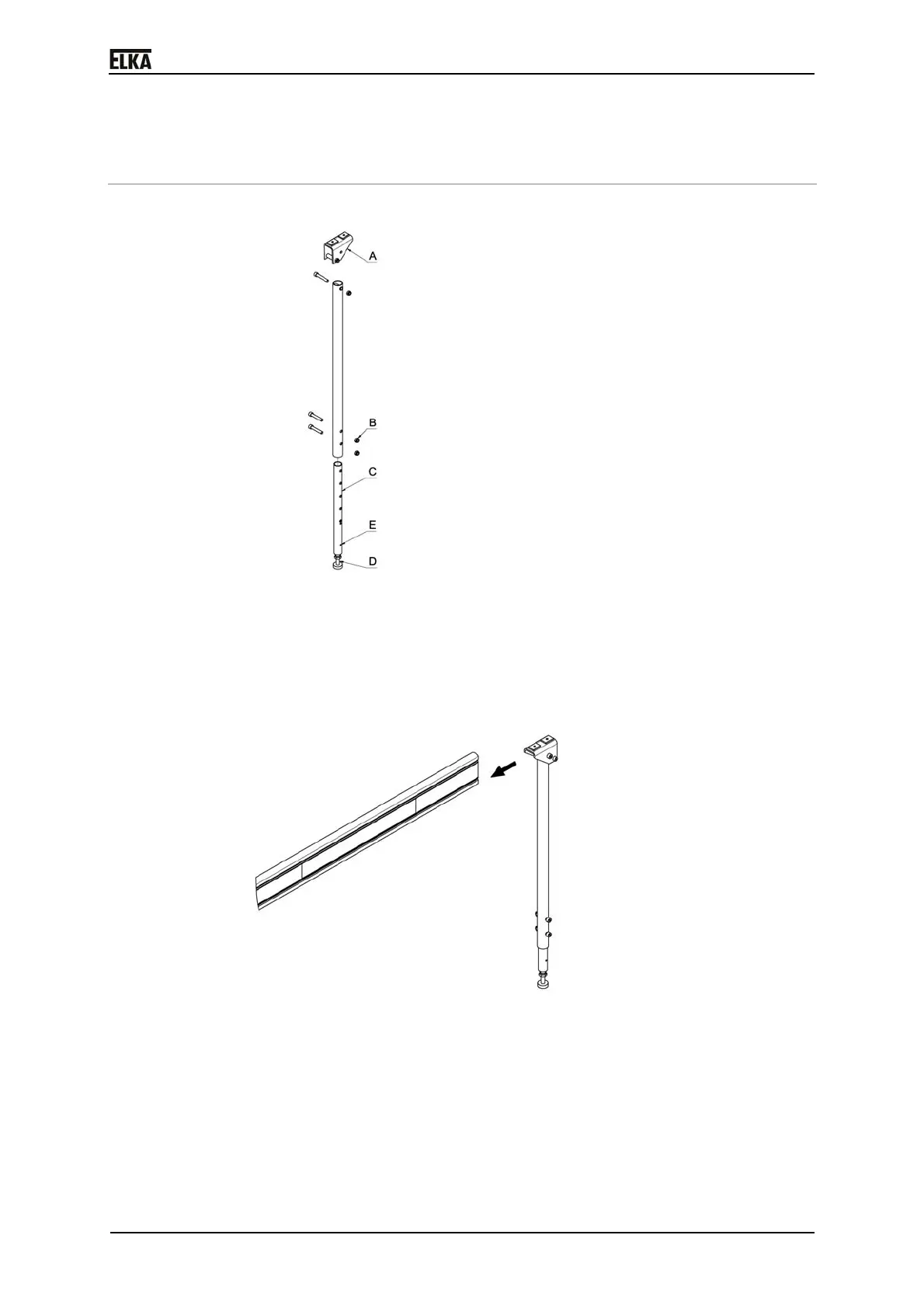

Drawing 19
2. The bottom part ‘C’ can be connected at the approximate length using the
screws ‘B’.
3. Remove approx. 39.5in of the rubber tube under the boom and push the
securing pieces ‘A’ of the swinging support into the notch of the barrier
boom. Secure the swinging support using the two hexagon head screws.
Drawing 20
4. Push the rubber tube back into the notch and cut off the protruding part.
5. A fine adjustment of the swinging support height can now be made at the
foot ’D’.
6. Screw an M4mm screw into the whole ‘E’ and loosen the M10 stop nut at
the foot ’D’.
7. The foot can now be screwed to the appropriate position. Tighten the M10
stop nut upwards against the aluminium bushing. Remove the M4 screw.
