Elka P 3000 User Manual

P 2500 - P 500
0
3
5

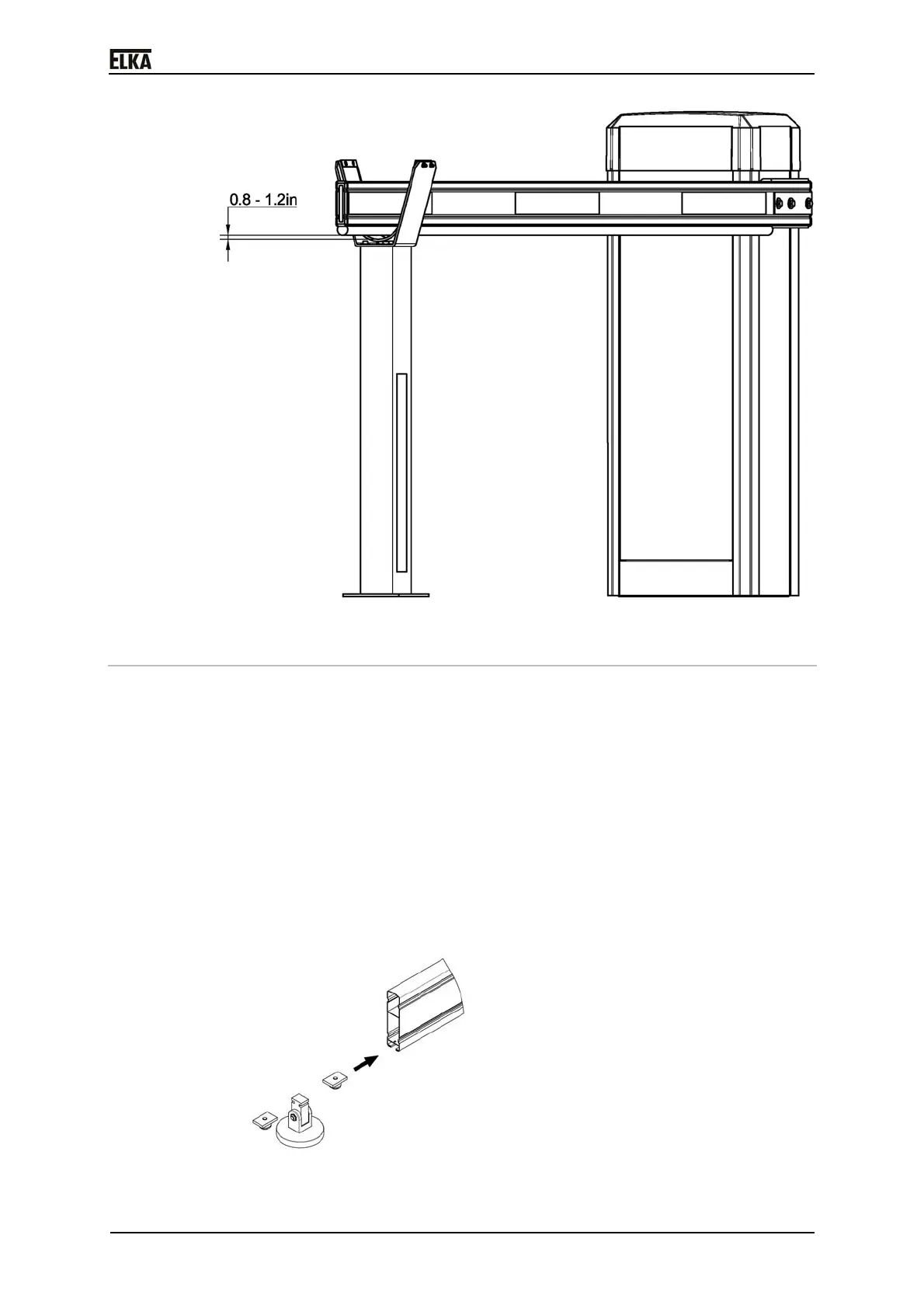

Drawing 22
7.9.3 Fixed support with electromagnet
1. Mount the fixed support on a suitable foundation.
2. Observe the alignment and the distance to the barrier (see drawing below).
3. Mount the fixed support on the foundation.
Mounting the anchor plate to the barrier boom:
1. Connect the flexible lead from the magnet with the cable of the barrier.
There is enough room at the lower part of the support for a junction box.
2. Fit the support fork onto the foot and secure it at the required height.
3. Remove a part of the rubber profile from the bottom part of the boom.
4. Push one of the securing pieces into the notch of the closed barrier boom.
5. Now insert the anchor plate into the notch until it is exactly above the
magnet.
Drawing 23
