187
Options and Accessories
STI-EIO Standard Terminal Interface
The STI-EIO interface allows access to all digital input and output signals. The STI-EIO
mounts directly to the J3 connector on the drive. See the figure below.
Note
Shield connection points are connected to the shell of the 44-pin “D” connector on the
STI EIO.
The STI-EIO wire range is #18 to 24 AWG stranded insulated wire.
Note
Wiring should be done with consideration for future troubleshooting and repair. All
wiring should be either color coded and/or tagged with industrial wire tabs. Low voltage
wiring should be routed away from high voltage wiring.

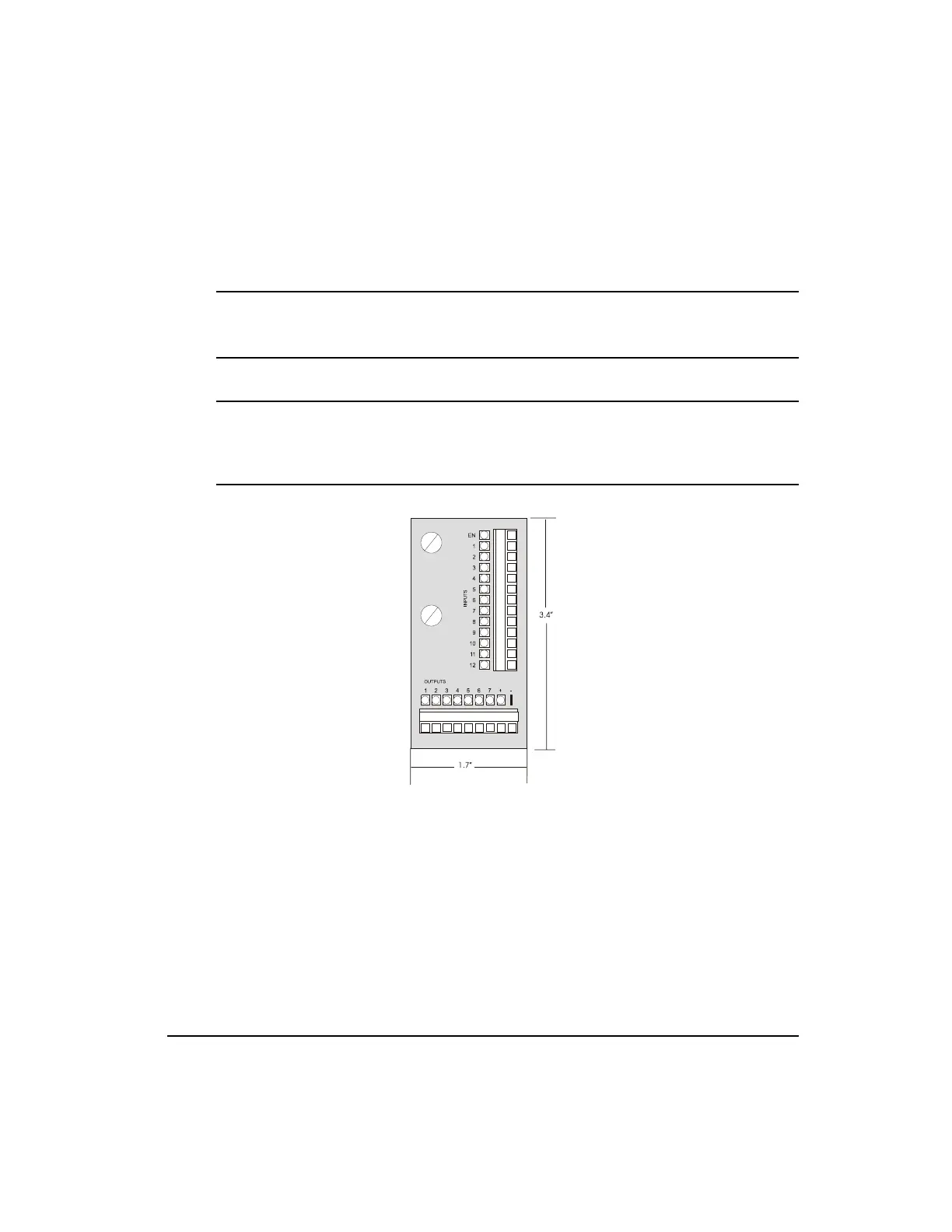

Figure 130: Dimensions of STI-EIO Board
ECI-44 External Connector Interface
The ECI-44 allows access to all command and input and output signals. The ECI-44 should
be mounted close to the drive and away from any high voltage wiring. The ECI-44 comes
complete with the hardware necessary for mounting to most DIN rail mounting tracks.
