Specifications

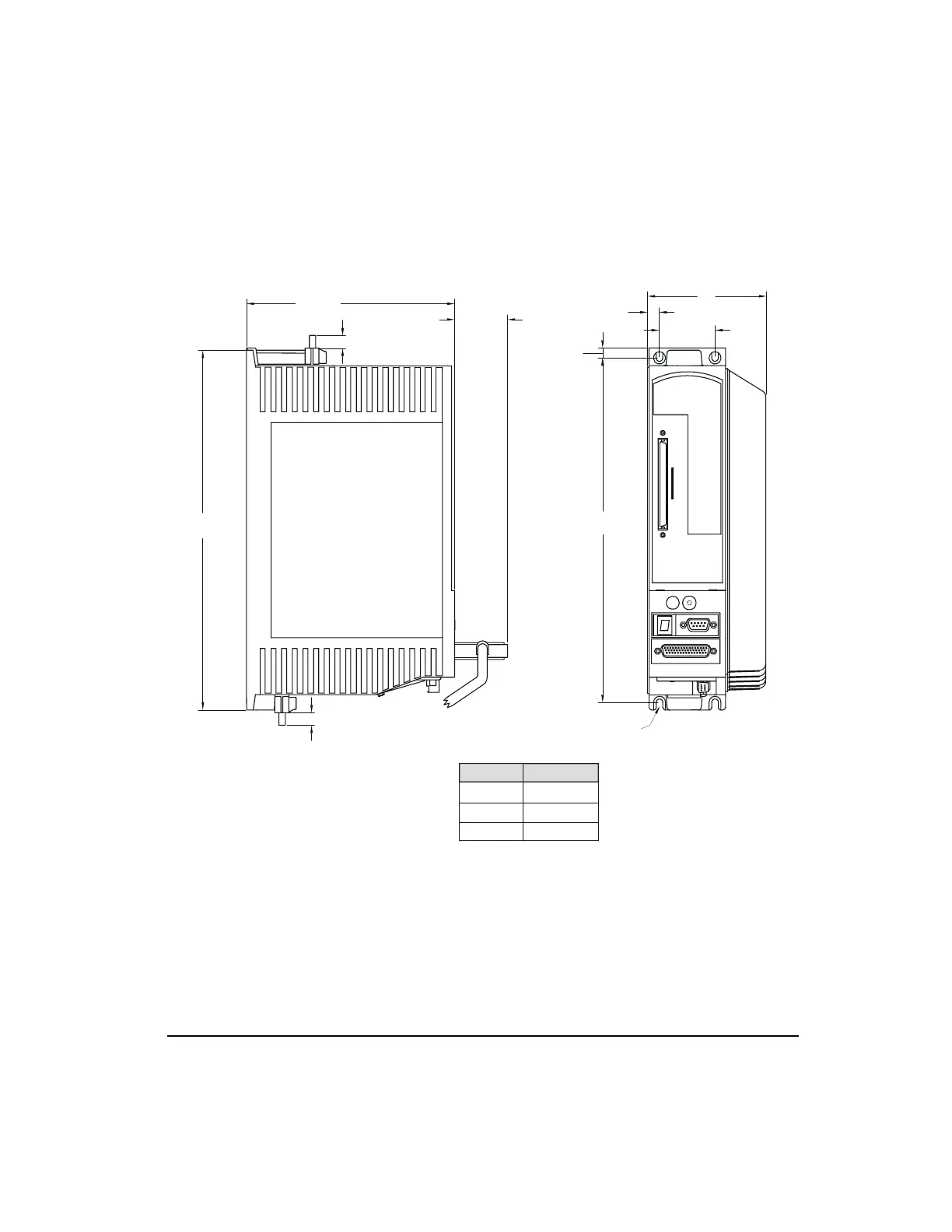

EN Drive Dimensions
Model Dim “A”
EN-204 2.93 [74.4]
EN-208 3.43 [87.1]
EN-214 3.93 [99.8]
11.20
[284.54]
1.85
[47.12]
"A"
0.39
[9.78]
11.70
[297.08]
0.20 (5.08)
Typ. 4 Places
0.41
[10.37]
0.41
[10.49]
0.33
[8.32]
6.90
[175.24]
1.75
[44.57]
Minimum Connector
Clearance if used
