Epsilon Eb and EN Drives Reference Manual
Outputs Tab
This tab is divided into two windows: The “Output Functions” window, on the left side,
displays the available output functions. The “Output Lines” window, on the right side,
displays the output lines, the line active state and the output function assignments.

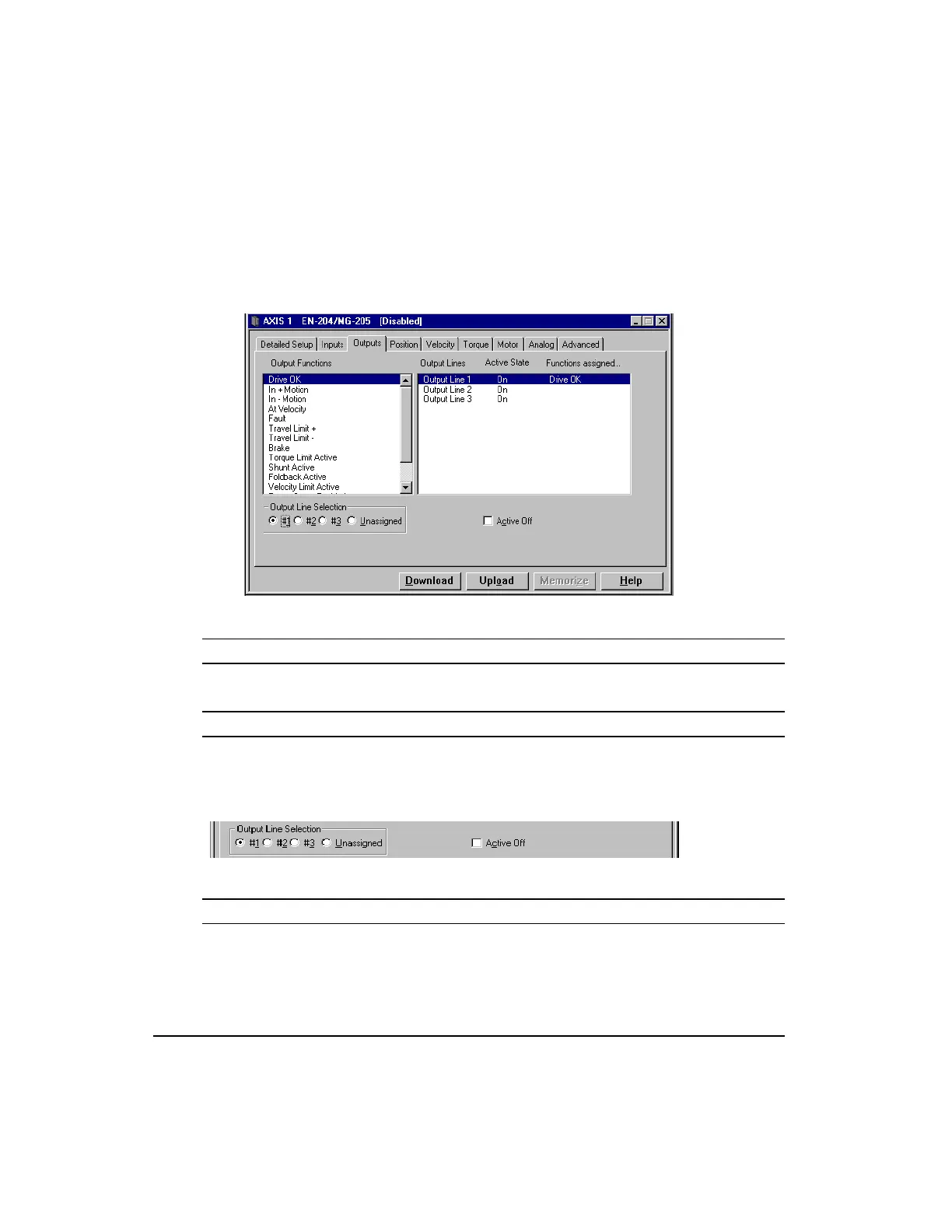

Figure 34: Outputs Tab
Output Functions Window
This window allows you to select the output function you wish to assign to an output line.
Output Line Selection Radio Button - EN Only
This selection box is used to assign an output function to an output line. Highlight the function
you wish to assign, then select the appropriate output line. To unassign an output function,
highlight the function in the Output Functions window, then select the “unassigned” option.
Figure 35: EN Output Line Selection View
Output Line Selection List Box - Epsilon Only
This list box allows you to assign or unassign the currently highlighted Output Function to an
Output Line. Click on the list box arrow to see the possible assignment lines. Then click on
one of the line numbers to assign the function. This list box would normally be used when a
