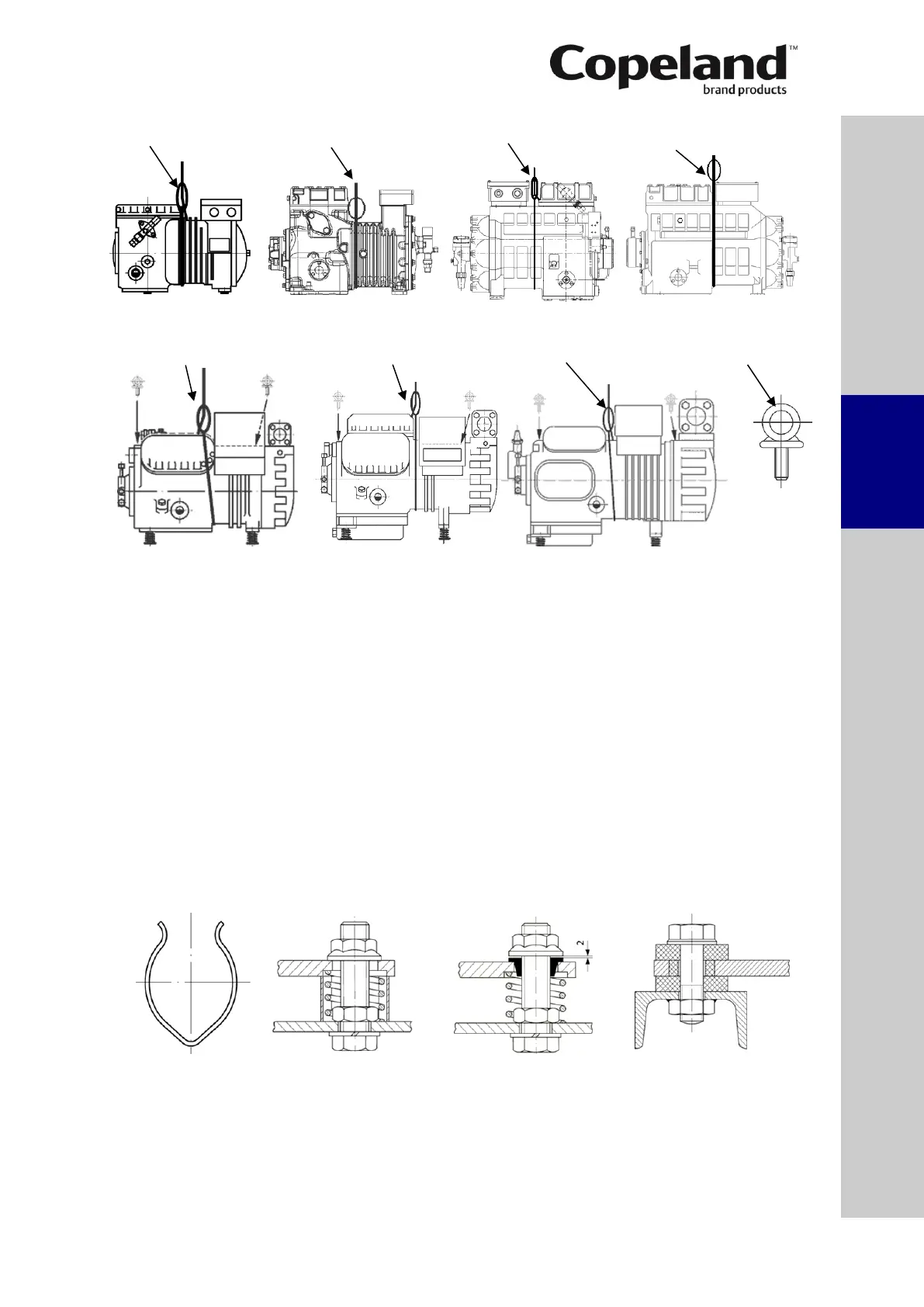

D6.3.4/0715-0716/E 13
DK, K DL, L D2D, D2S, 2D D3D, D3S, 3D
max. 45kg max. 90kg max. 140 kg max. 175 kg
D4D, D4S D6D, D6S, D6T, 6T D8D, D8S, 8D Lifting eye
max. 220kg max. 260kg max. 350 kg ½” – 13 UNC
Figure 7
3.1.4 Installation location
Ensure the compressors are installed on a solid level base.
3.1.5 Mounting parts
To minimize vibration and start/stop impulses flexible mounting should be used. For this purpose
coloured springs are delivered with each compressor. These springs should be mounted
according to the prescriptions given in Technical Information D7.11.2 “Mounting parts for semi-
hermetic compressors”.
A compressor may be rigidly mounted, ie, without springs. In this case more shock and vibration
loading will be transmitted to the frame.
If the installation requires a very high level of vibration absorption, additional vibration absorbers
(available on the market) can be fitted between the rails and the foundation.
To ensure proper lubrication of moving parts, the compressor should be installed horizontally on
both axes. TWIN compressors are fitted to mounting rails using rubber pads.
Transport clamp Transport position Operational position Grommets for twin
compressors
Figure 8
