Emerson Copeland 2D Series User Manual

D6.3.4/0715-0716/E 29

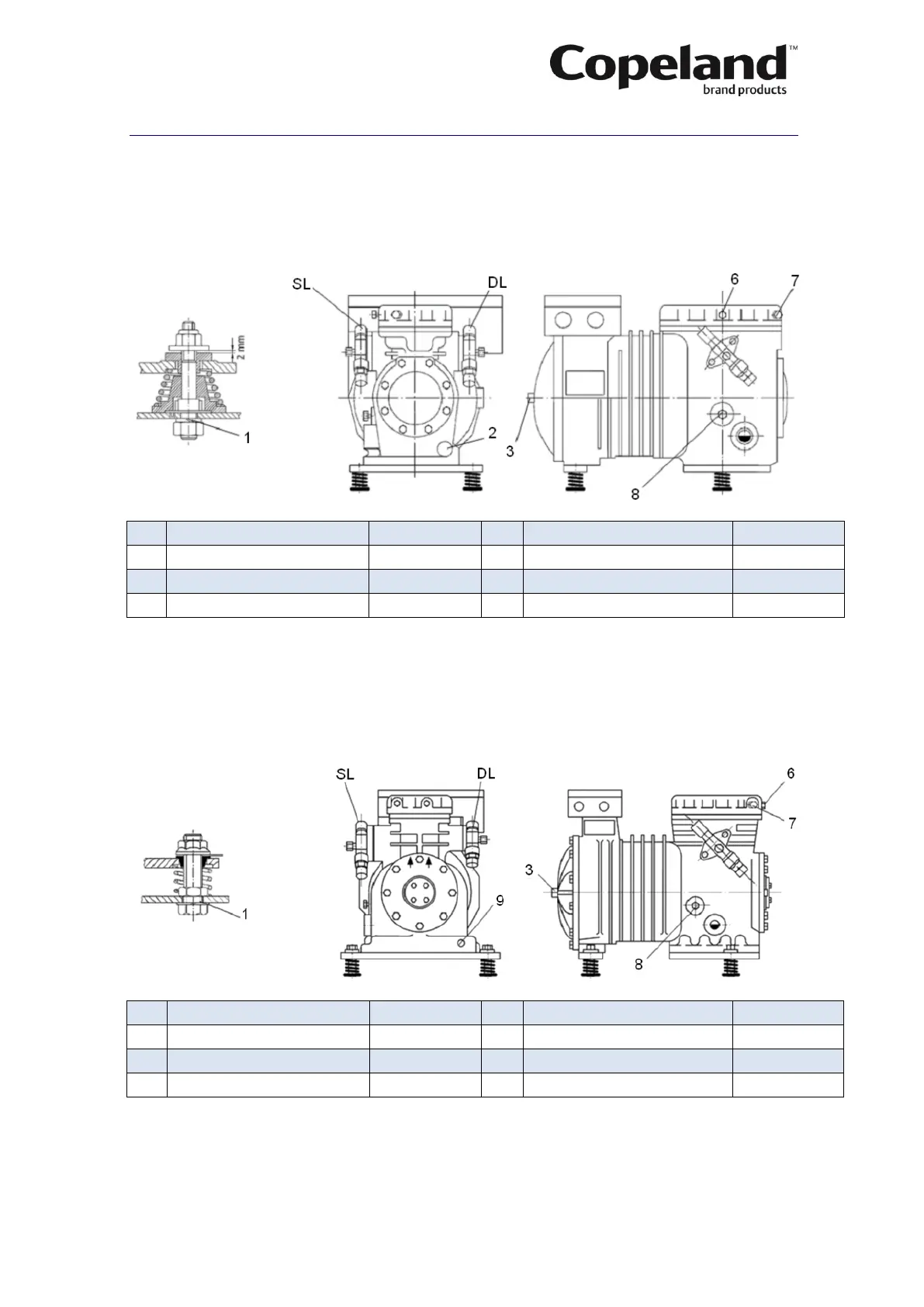

Appendix 1 – Compressor connections
Standard compressor connections
DK / K
DKM-5* KM-5* DKJ-7* KJ-7* DKSJ-10* KSJ-10* DKSL-15* KSL-15*
DKM-7* KM-7* DKJ-10* KJ-10* DKSJ-15* KSJ-15* DKSL-20* KSL-20*
DKM-10* KM-10* DKJ-15* KJ-15* DKL-15* KL-15* DKL-20* KL-20*
SL
Suction line (sweat)
Ø 1/2"
DL
Discharge line (sweat)
Ø 1/2"
1
Base mountings
Ø 11 mm
6
Plug low pressure connection
1/8" - 27 NPTF
2
Pocket for heater with plug
M25 x 1.5
7
Plug high pressure connection
1/8" - 27 NPTF
3
Magnetic plug
1/8" - 27 NPTF
8
Plug oil charge
1/8" - 27 NPTF
DL / L
DLE-20* LE-20* DLJ-20* LJ-20* DLL-40* LL-40*
DLF-20* LF-20* DLJ-30* LJ-30* DLSG-40* LSG-40*
DLF-30* LF-30* DLL-30* LL-30*
SL
Suction line (sweat)
Ø 1/2"
DL
Discharge line (sweat)
Ø 1/2"
1
Base mountings
Ø 14 mm
7
Plug low pressure connection
1/8" - 27 NPTF
3
Magnetic plug
1/8" - 27 NPTF
8
Plug oil charge
1/8" - 18 NPTF
6
Plug high pressure connection
1/8" - 27 NPTF
9
Pocket for heater with plug
3/8" - 18 NPSL
