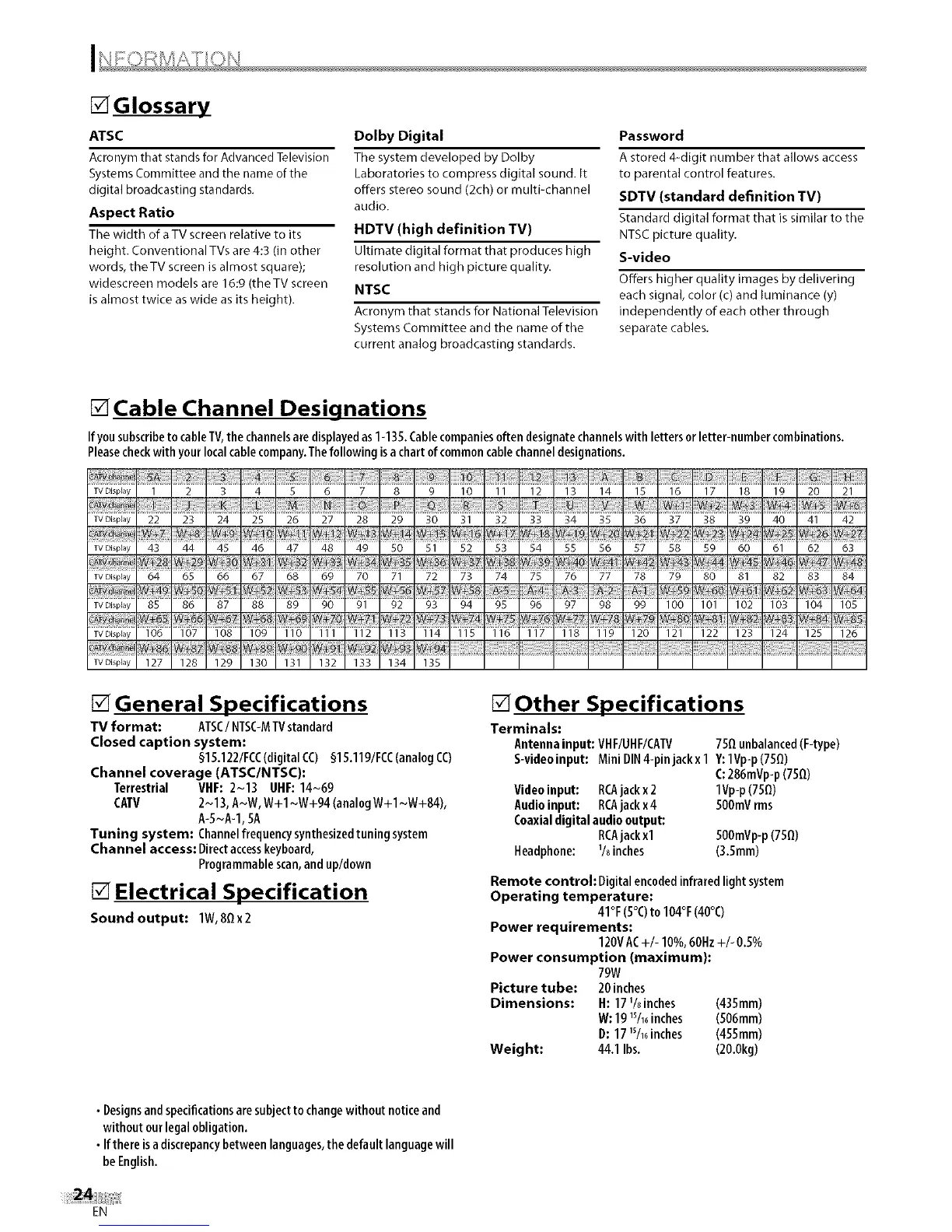

tTGIossary
ATSC
Acronym that stands for AdvancedTelevision
SystemsCommittee and the name of the
digital broadcasting standards.
Aspect Ratio
The width of aTVscreen relative to its
height. Conventional TVs are 4:3 (in other
words, theTV screen is almost square);
widescreen models are 16:9 (the TV screen
is almost twice aswide as its height).
Dolby Digital
The system developed by Dolby
Laboratories to compress digital sound. It
offers stereo sound (2ch) or multi-channel
audio.
HDTV (high definition TV)
Ultimate digital format that produces high
resolution and high picture quality.
NTSC
Acronym that stands for National Television
Systems Committee and the name of the
current analog broadcasting standards.
Password
A stored 4-digit number that allows access
to parental control features.
SDTV (standard definition TV)
Standard digital format tbat is similar to tile
NTSCpicture quality.
S-video
Offers higher quality images by delivering
each signal, color (c)and luminance (y)
independently of each other through
separate cables.
[] Cable Channel Designations
Ifyousubscribeto cableTV,the channelsaredisplayedas1+135.Cablecompaniesoftendesignatechannelswith letters or letter-number combinations.
Pleasecheckwithyourlocalcablecompany.Thefollowingisachartofcommoncablechanneldesignations.
TVD+spEay 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
TVD+spEay 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
w+l w+l
TVDispEay 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
TVD+spEay 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84
TVD+spEay 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105
_+73, _+7_
TVDispEay 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126
TVDispEay 127 128 129 130 131 132 133 134 135
[] General Specifications
TV format: ATSC/ NTSOMTVstandard
Closed caption system:
§15.122/FCC(digitalCO) §15.119/FCC(anal0gCC)
Channel coverage (ATSC/NTSC):
Terrestrial VHF: 2~13 UHF: 14~69
CATV 2~13, A~W, W+l ~W+94 (analogW+l ~W+84),
A-5~A-1, 5A
Tuning system: Channelfrequencysynthesizedtuningsystem
Channel access: Directaccesskeyboard,
Programmablescan,and up/down
[] Electrical Specification
Sound output: 1W,8flx2
[] Other Specifications
Terminals:
Antennainput: VHF/UHF/CATV 75[} unbalanced(F+type)
S-videoinput: MiniDIN4-pinjackx 1 Y: lVp-p (75[})
C:286mVp-p(75[})
Videoinput: RCAjackx2 lVp-p (75_)
Audioinput: RCAjackx4 500mYrms
Coaxialdigital audiooutput:
RCAjackxl 500mVp-p(75_)
Headphone: % inches (3.Smm)
Remote control: Digitalencodedinfraredlightsystem
Operating temperature:
41°F(5°C)to 104°F(40°C)
Power requirements:
120VAC+/- 10%,6OHz+/- 0.5%
Power consumption (maximum):
79W
Picture tube: 20 inches
Dimensions: H: 17 % inches (435mm)
W:19ls/1+inches (506mm)
D: 17 Is/l+inches (455mm)
Weight: 44.1 Ibs. (20.0kg)
• Designsandspecificationsaresubjectto changewithoutnoticeand
without ourlegal obligation.
• If there isadiscrepancybetween languages,the default languagewill
beEnglish.
EN
