Emerson CR202EM9 User Manual

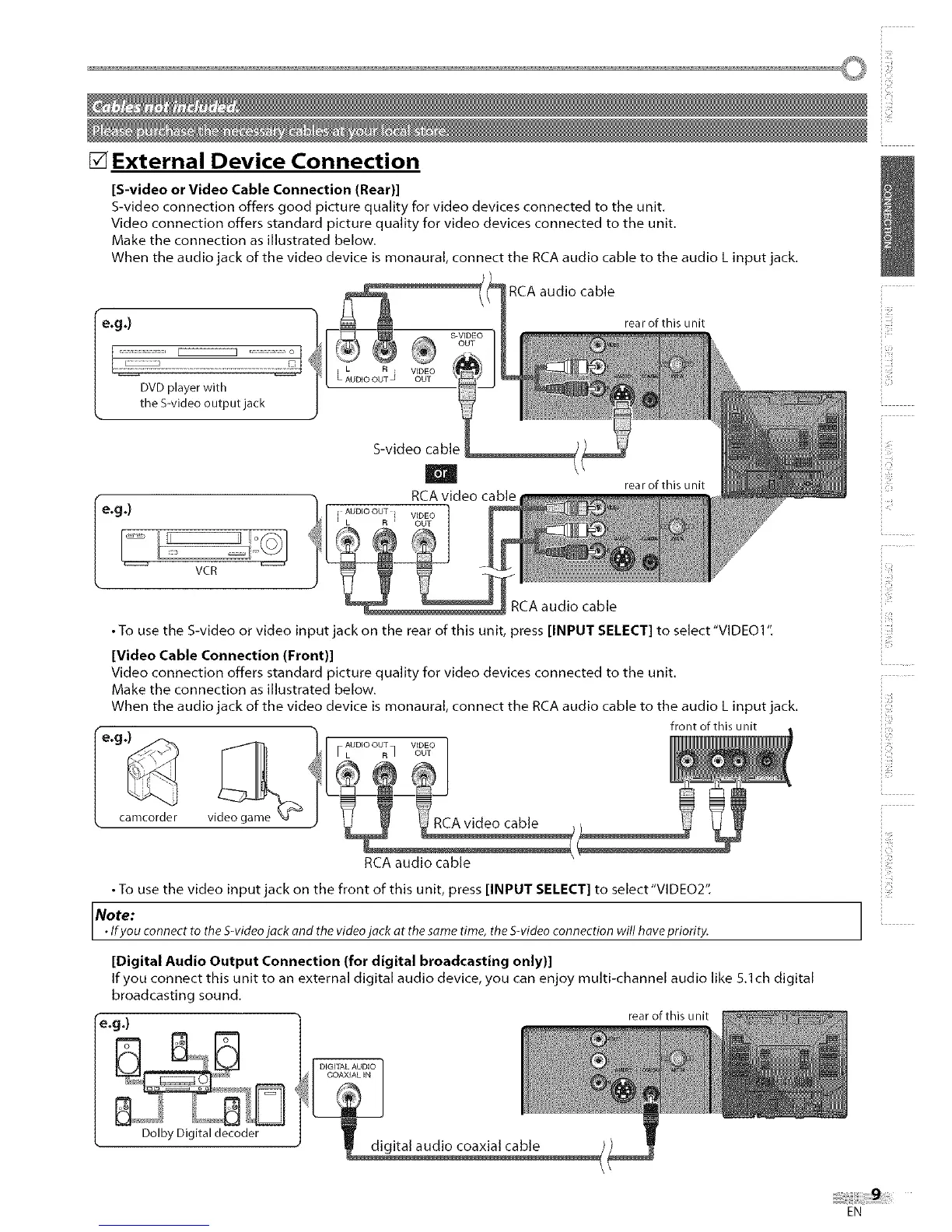

[] External Device Connection
[S-video or Video Cable Connection (Rear)]
S-video connection offers good picture quality for video devices connected to the unit.
Video connection offers standard picture quality for video devices connected to the unit.
Make the connection as illustrated below.
When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.
l e.g.)
DVDplayer with
the S-video output jack
VCR
RCA audio cable
L R VFDEO
W AUDIO OUT _ OUT
ICA audio cable
rear of this unit
S-video cabl_
El
rear of this unit
• To use the S-video or video input jack on the rear of this unit, press [INPUT SELECT] to select "VIDEO1 ".
[Video Cable Connection (Front)]
Video connection offers standard picture quality for video devices connected to the unit.
Make the connection as illustrated below.
When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.
front of this unit
[ camcorder vi
RCA audio cable
• To use the video input jack on the front of this unit, press [INPUT SELECT] to select"VlDEO2".
Note:
• fyou connect to the S-videojack and the video jack at the same time, the S-video connection will have priority.
[Digital Audio Output Connection (for digital broadcasting only)]
If you connect this unit to an external digital audio device, you can enjoy rnulti-channel audio like 5.1ch digital
broadcasting sound.
e°g .)
Dolby Digital decoder
rear of this unit
_iill!ill
ii!ii_!!_
ii:i:il
ii !!i,i_iii
i i ¸
iiCi_
_iEli
i i!i;iiii
i()
iTJ
ii:!!ill
