Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
Installation 31
Rotating the Housing
To improve accessibility to the HMI module or to ease wiring, you can optionally rotate the
housing.
Important
Never rotate the housing more than 180 degrees from its original (as-shipped) position. Over-
rotation can break electronics within the unit.

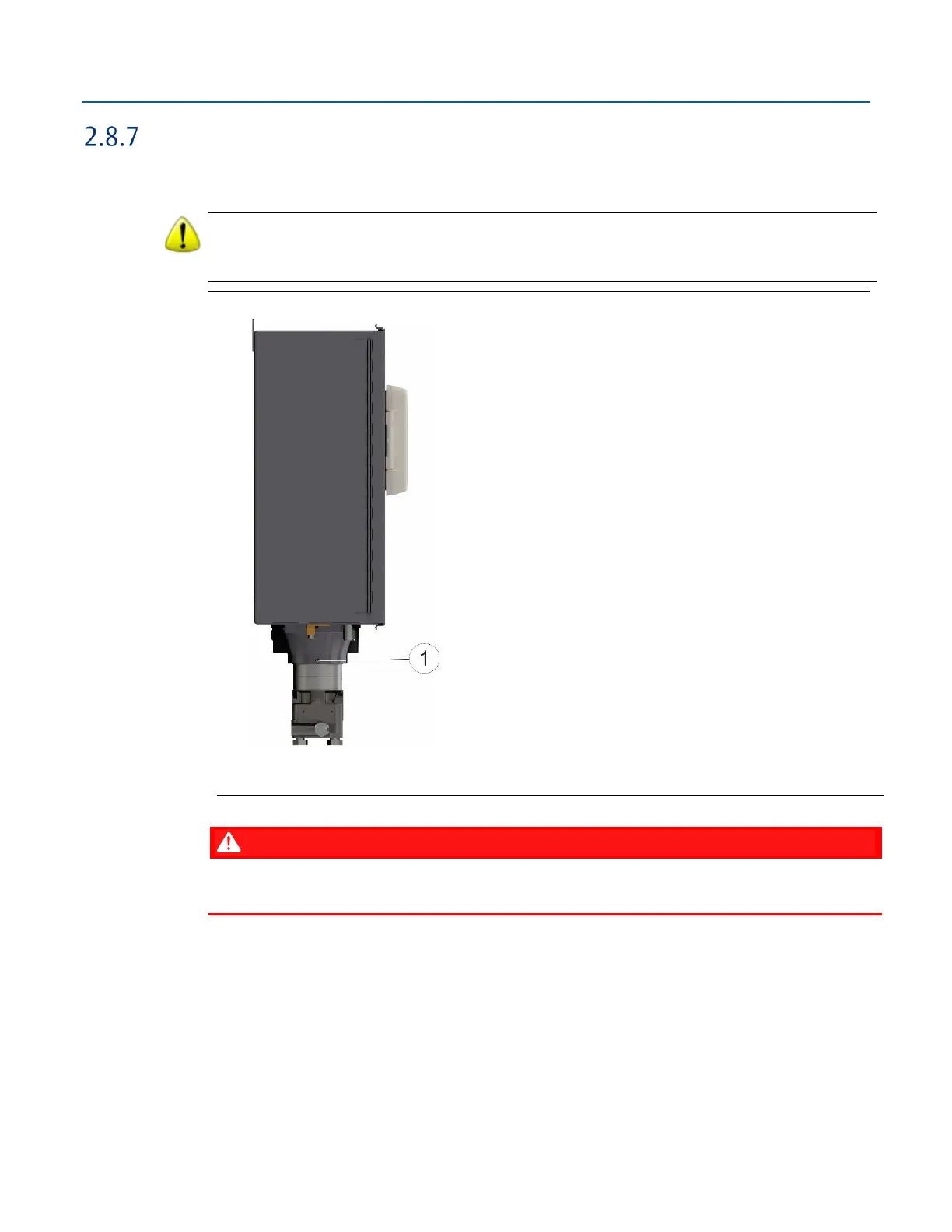

Figure 2-20. Housing Rotation Set Screw (1 each side)
Set Screw (one each side)
EXPLOSION HAZARD: Never remove end cap(s) in a hazardous location. Removing end cap(s) in a
hazardous location could result in an explosion.
1. Loosen the two housing rotation set screws.
2. Rotate the housing no more than 180 degrees from its original (as-shipped) position.
3. Re-tighten the two housing rotation set screws. Torque to 6 in-lbs. (0.7 N m).
2.9 Power Modes
To keep power consumption to a minimum, especially for remote sites, the FB2200 can run in two
different power modes – Low Power Mode (4 MHz or 8 CPU MHz clock speed) or Standard Power
Mode (60 MHz CPU clock speed).
