Emerson Fisher FIELDVUE DVC6200 Series User Manual

Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
July 2017
32
Smart Wireless THUM Adapter
Refer to the Smart Wireless THUM Adapter quick installation guide (0082501004075) for additional information.
Note
The recommended mounting orientation for the THUM Adapter is vertically up, as shown in figure 26, for optimal wireless
communication range.

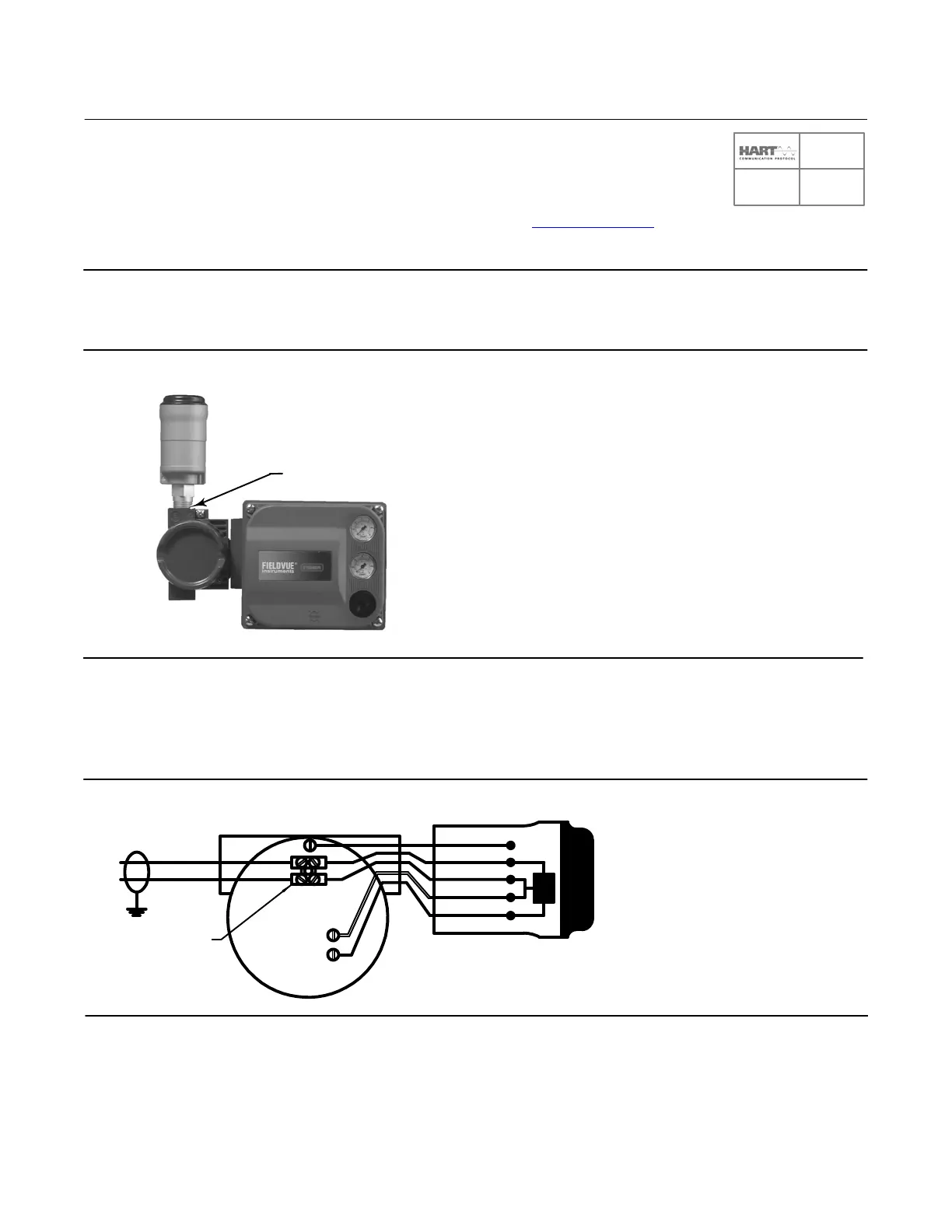

Figure 26. THUM Adapter Installed On DVC6200 Digital Valve Controller
TOP CONDUIT
ENTRANCE
X0433
1. Remove the DVC6200 terminal box plug from the top conduit entrance.
2. Thread the THUM Adapter into the top conduit entrance.
3. Using the wire splice included with the THUM Adapter (or other suitable wire splice), connect the wires as shown in
figure 27 below.
Figure 27. Wiring the THUM Adapter
GG18677
THUM ADAPTER
GREEN
RED
BLACK
WHITE
YELLOW
WIRED DEVICE
LOOP -
LOOP +
SPLICE
CONNECTOR
GROUND
4-20 mA
4-20 mA
LOOP -
LOOP +
4. Carefully coil the wires inside the terminal box.
5. Replace and hand tighten the cover on the terminal box.
6. Proceed to Step 4—Configure the Digital Valve Controller on page 33.

Emerson Fisher FIELDVUE DVC6200 Series Specifications

General

Manufacturer	Emerson
Series	FIELDVUE DVC6200
Type	Digital Valve Controller
Communication Protocol	HART
Operating Temperature Range	-40 to 85 °C (-40 to 185 °F)
Enclosure Rating	NEMA 4X, IP66
Material	Aluminum, Stainless Steel
Hazardous Area Certifications	ATEX, IECEx, FM, CSA
Input Signal	4-20 mA, HART
Power Supply	Loop-powered
Supply Pressure	1.4 to 6.0 bar
Certifications	SIL3 capable
Diagnostics	Advanced Valve Diagnostics
