CATV
Tuning system
Channel access

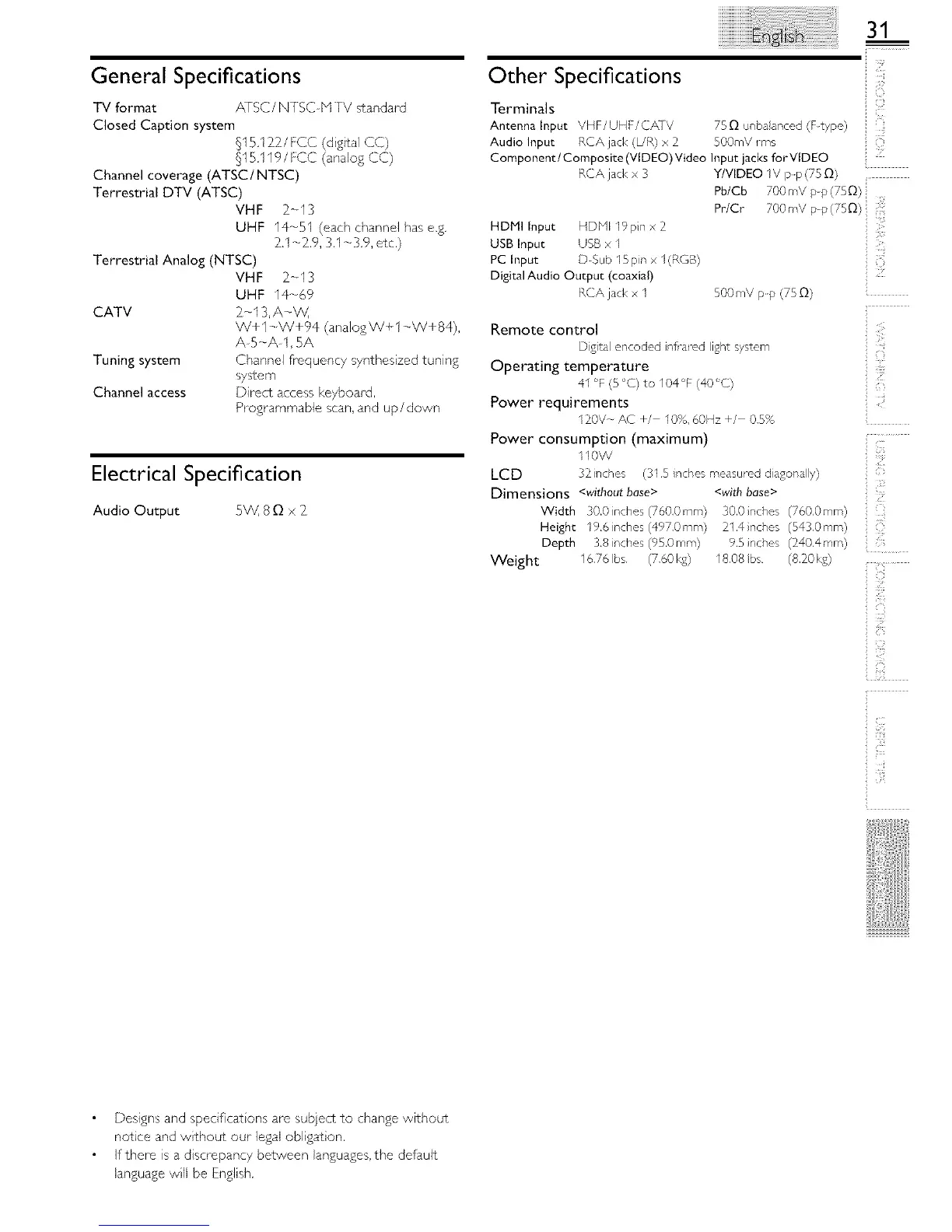

General Specifications
TV format /_TSC/NTSC bl IV standard
Closed Caption system
§15,122/FCC (d gital CC)
§15,119 / FCC (analog CC)
Channel coverage (ATSC/NTSC)
Terrestrial DTV (ATSC)
VHF 2-13
UHF 14-51 (each channel has e.g,
2.14,2.9, 3.14,3.9, etc.)
Terrestrial Analog (NTSC)
VHF 2-13
UHF 14-69
2-fl 3,A-W,
W+fl _'W+94 (analogW+l _,W+84),
A 5-A 1,5A
Channel frequency synthesized tuning
system
Direct access keyboard,
Programmable scan, and up/down
Electrical Specification
Audio Output 5VV, 8 _ x 2
Other Specifications
Terminals
Antenna Input VHF/UHF/CfiTV 750 urlbaanced (Ftype)
Audio Input RCA jack (UP,) x 2 500mV rms
Component/Composite (VIDEO) Video Input jacks forVIDEO
RCA jack x 3 Y/VIDEO IV pp (75 O)
i;iil}!
i!!!!!;
'i:iii!_
Pb/Cb
Pr/Cr
700 mV pp (750) ii
J00_,vpp(Jso) ii:!!Z
HDMI Input HDPI119pn x 2
USB Input USB x I
PC Input DSub 15pn x I(RGB)
Digital Audio Output (coaxial)
RCA jacl< x I 500mV p-p (750)
Remote control
DgM encoded nfi-drod light system
Operating temperature
41 °F (5 °C) to 104% (40 °C)
Power requirements
120V-- AC +/ 10% 60Hz +/ 0,5%
Power consumption (maximum)
II0W
LCD 32inches (31,5 nches measured dagonally)
Dimensions <without base> <with base>
Width 30.0nches (/60,0ram) 30.0nches (/60,0mm)
Height 19,6nches (497,0mm) 21.4inches (543,0mm)
Depth 3.8 nches (95.0mm) 9.5 nches (240.4mm)
Weight 16,76 bs, (7,60 kg) 18,08 bs, (820 kg)
f
4}
Z
%
!gi
Zf_
!_i!i
{{iiiii
i':}'_
i!i"i_
, i¸¸¸i¸¸¸11
iiiiii!
4
Designs and spedficat ons are sub/ect to change without
notice and without our legal obligat on.
If there is a discrepancy between languages, the default
language will be English.
