2.3.2.7 Mechanical specifications

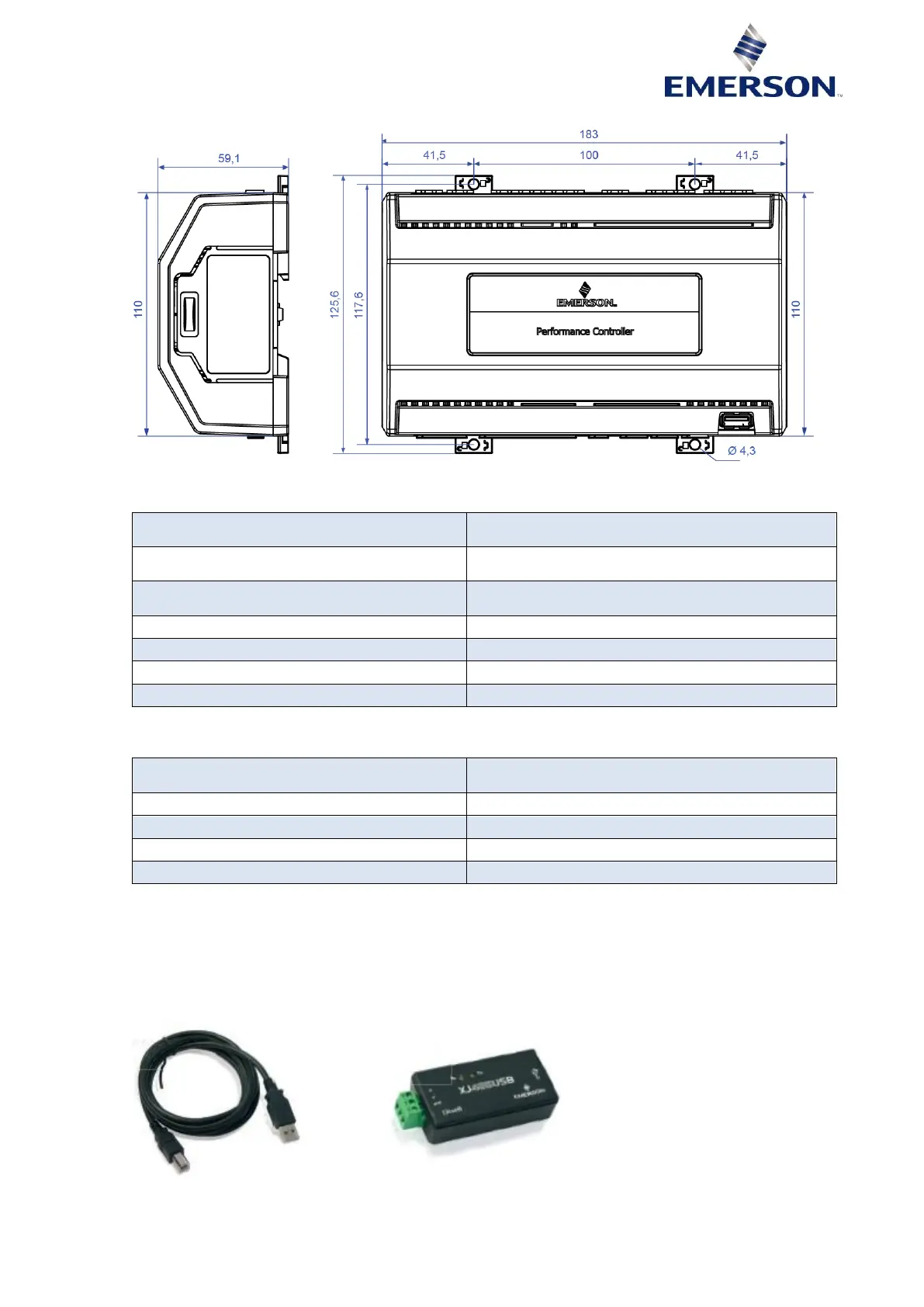

Figure 8: Dimensions of the PeC C200
2.3.2.8 Electrical specifications
Power supply
24 VAC ± 10%, 50/60 Hz
20-36 VDC
Consumption
50 VA (VAC), 15 W (VDC)
With the driver: 40 VA (VAC), 30 W (VDC)
Connectors
STELVIO CPM series (board), STELVIO CPF series
(disconnectable)
Microprocessor
LPC1766 32-bit 100 MHz
Permanent FLASH memory
256 KB
RAM
64 KB
Internal clock
100 MHz
Table 14
2.3.2.9 Plastic container
Mount
On a DIN rail (EN 50022, DIN 43880)
Fastened with screws via the removable plastic flaps
Material
PC-ABS Thermoplastic
Self-extinguishing
V0 (UL94)
Comparative Tracking Index (CTI)
300 V
Colour
Grey
Table 15
2.4 USB-RS485 Adapter (optional accessory)
The PeC controllers can be connected to a computer via an Emerson external adapter.
This adapter is not set up for fixed or continuous connection. If the adapter should be kept connected
continuously, the room temperature must not exceed 50 °C.
Figure 9
