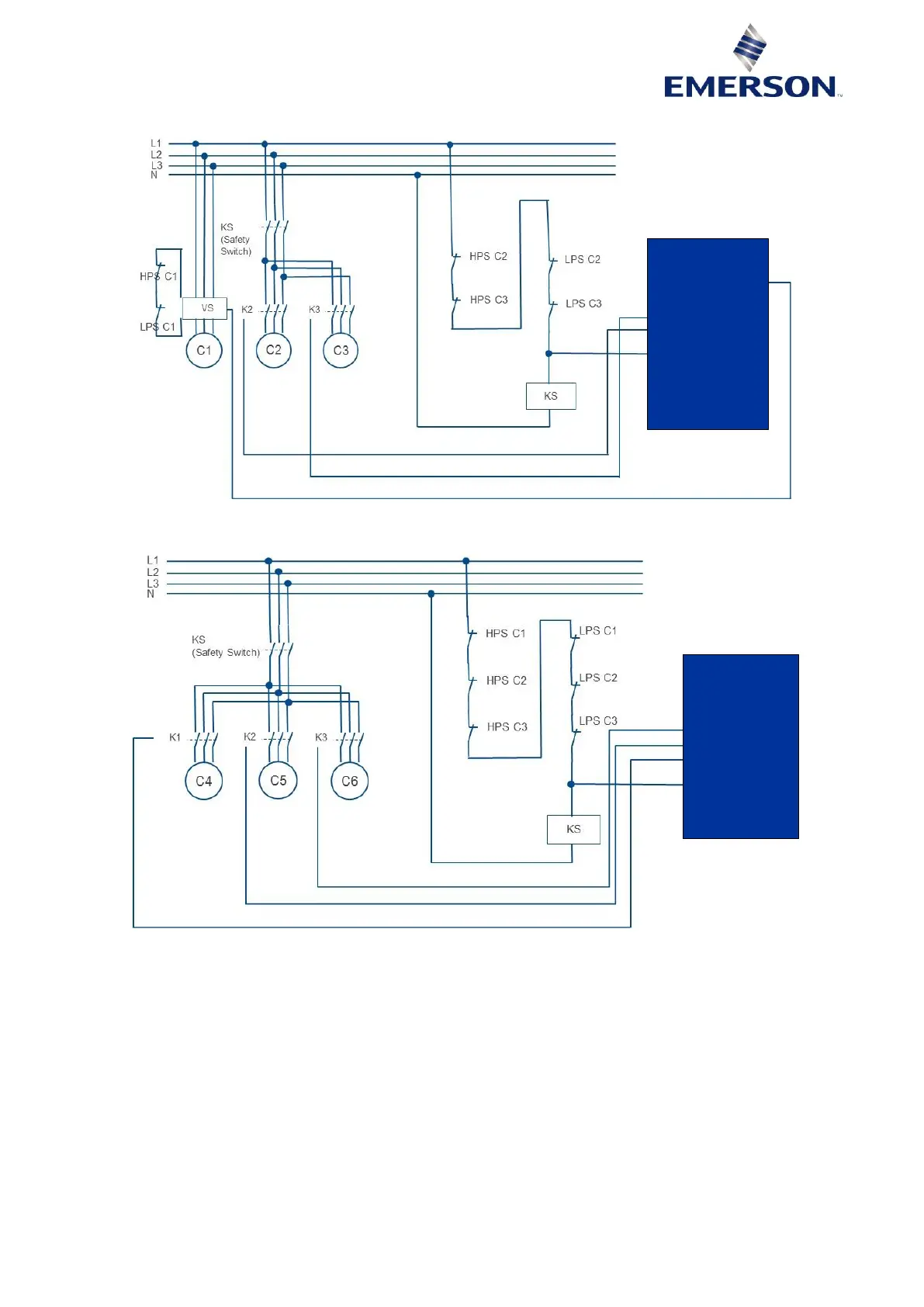

Digital inputs and outputs wiring
Figure
22
: Digital
inputs and o
utputs wiring for
variab
le speed circ
uit (proposal)
Figure
23
: Digital
inputs and o
utputs wiring for
fix
ed
-speed circ
uit
PeC
DO8 (FS Scroll #6)
DO7 (FS Scroll #5)
DO6 (FS Scroll #4)
DI4 (Feedback safety)
PeC
Modbus master
DO
3 (FS Scroll #6)
DO
2 (FS Scroll #5)
DI
1 (Feedback safety)
25
27
Table of Contents
Default Chapter
2
Table of Contents
2
About These Guidelines
4
Icon Explanation
4
Safety Statements
4
General Recommendations
5
General Warnings
5
Use with Flammable Refrigerants
5
1 Safety Instructions
4
2 Product Description
7
General Information about Emerson Controllers Pec C100 and C200
7
Software Architecture
7
Hardware Architecture
7
Main Features
7
Hardware Technical Data
7
Configuration of the Pec C100 Controller
7
Configuration of the Pec C200 Controller
7
Advanced Technical Information
8
Pec C100 Controller
8
Pec C200 Controller
13
USB-RS485 Adapter (Optional Accessory)
18
3 Installation
19
Important Recommendations
19
Controller Installation
19
4 Electrical Connection
20
General Recommendations
20
Power Supply
21
Power Supply Voltage of the Devices
21
Power Supply Voltage with Battery Backup
21
Connection of the Analog Inputs
21
Temperature Probes (NTC)
21
Pressure Transducers and Current Probes (4-20 Ma)
22
Connection of the Digital Inputs
22
Opto-Insulated Digital Inputs (24-230 VAC/DC) DI1 and DI4
22
Potential Free Digital Input DI2 and DI3
22
Connection of the Digital Outputs
23
General Overview of Inputs and Outputs
23
Circuit 1 - Top Side
23
Circuit 1 - Bottom Side
23
Circuit 2 (with Fixed-Speed Compressors Only) - Top Side
24
Circuit 2 (with Fixed-Speed Compressors Only) - Bottom Side
24
Electronic Expansion Valve Driver
25
Variable Speed Compressor Safety Chain Connection
25
EV3 Drive to Pec
25
Digital Inputs and Outputs Wiring
26
5 Certification & Approval
27
6 Dismantling & Disposal
27
Disclaimer
27
4
Based on 1 rating
Ask a question
