3-Jaw Chuck Rotary Attachment
The 3-Jaw Chuck style Rotary Attachment is an extremely versatile tool for marking and engraving
cylindrical objects. It comes with a variety of interchangeable components that make it easy to hold
dierent sized and shaped cylinders. There are two basic setups:
1. 3-Jaw Chuck
2. Fixture plates (2)
3. Chuck jaws (3 sets of 3)

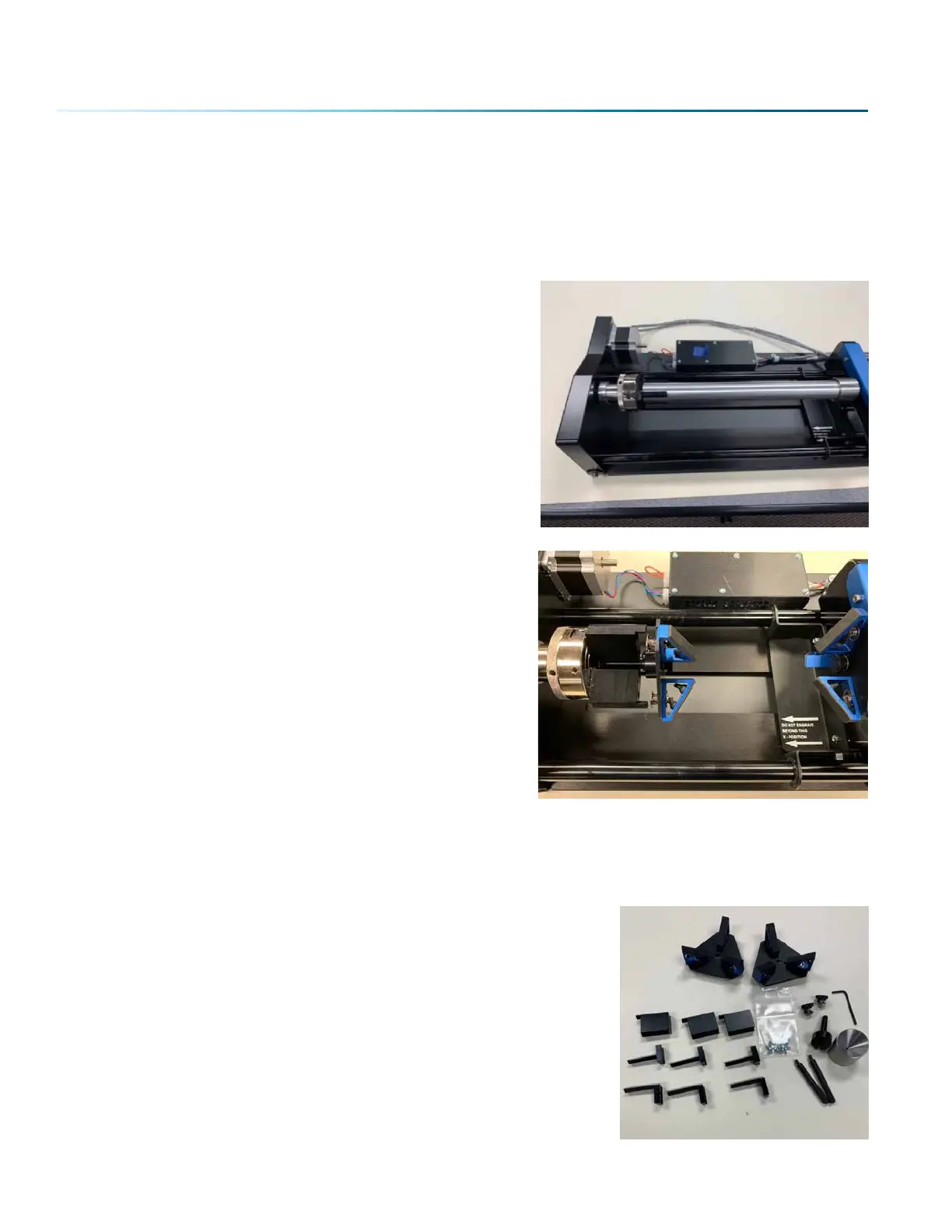

This photo shows the basic setup with the 3-Jaw Chuck on
the le and the centering fixture on the right.
This photo shows the 3-Jaw Chuck style Rotary Attachment
with the fixture plates installed.
Fixture Plates and Additional Components
The following fixture plates and additional components are included with all 3-Jaw Rotary Attachments
1. Fixture plates (2 each)
2. Idle-side centering fixture (1 each)
3. Plate spindle (1 each)
4. Plate fixture thumb screws (2 each)
5. 3-Jaw tightening pins (2 each)
6. Chuck Jaws (3 each of 3 sizes for dierent diameter parts/
components)
- 134 -
SECTION 9: OPTIONAL FEATURES
