Epilog Laser Fusion Pro 32 User Manual

Calibrating the Auto
Focus
Calibrating CO2 Focus
Note: These steps will walk you
through calibrating the auto focus
of a Fusion Pro with a CO2 laser only.
For information on calibrating a Fiber
or Dual Source Fusion Pro, see “Calibrating Dual
Source Focus” on page 223.
1. Run a test job with a piece of anodized
aluminum. Set up a small solid square as
your artwork and run the job with high speed
and low power settings.

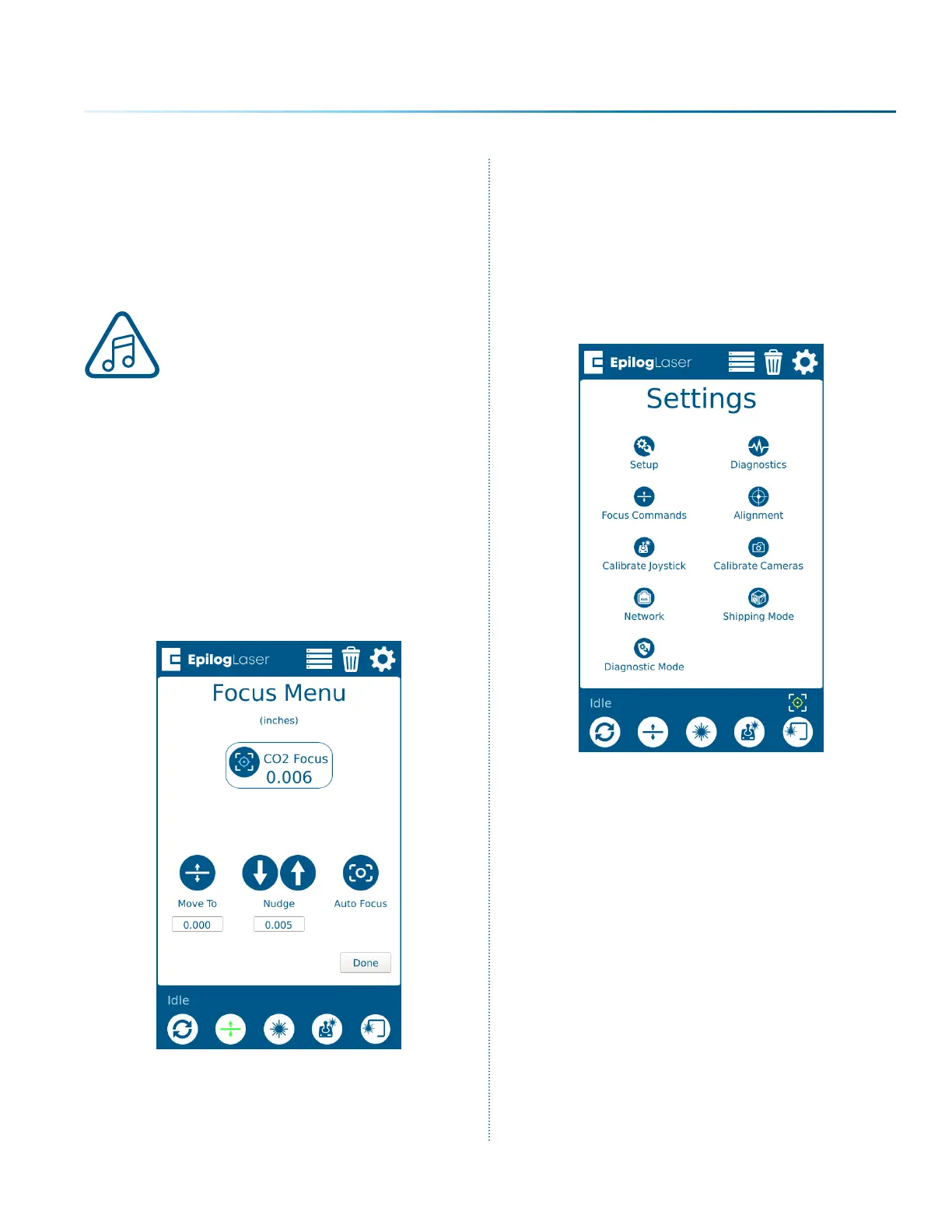

2. Once the job is running, press the Focus
Menu button on the touch screen, and
slightly raise and lower the table with the
joystick while keeping an eye on the spark
coming from the laser hitting the anodized
aluminum.
3. While raising the table up and down, find
the height where the spark appears the
brightest. If it’s diicult to tell, turn o any
overhead lights in the room.
4. Once you’ve found the brightest spark, let go
of the joystick and press the reset button to
stop the job.
5. Remove the material from the engraving
bed.
6. Press the Settings button, and then long
press the “Settings” text until the Advanced
Settings menu appears.
- 221 -
