Printable area
This section describes the printable areas for the printer.
If the print range settings in application software are
larger than the following printer printable areas,
sections beyond the specified margins are not printed.
Roll Paper

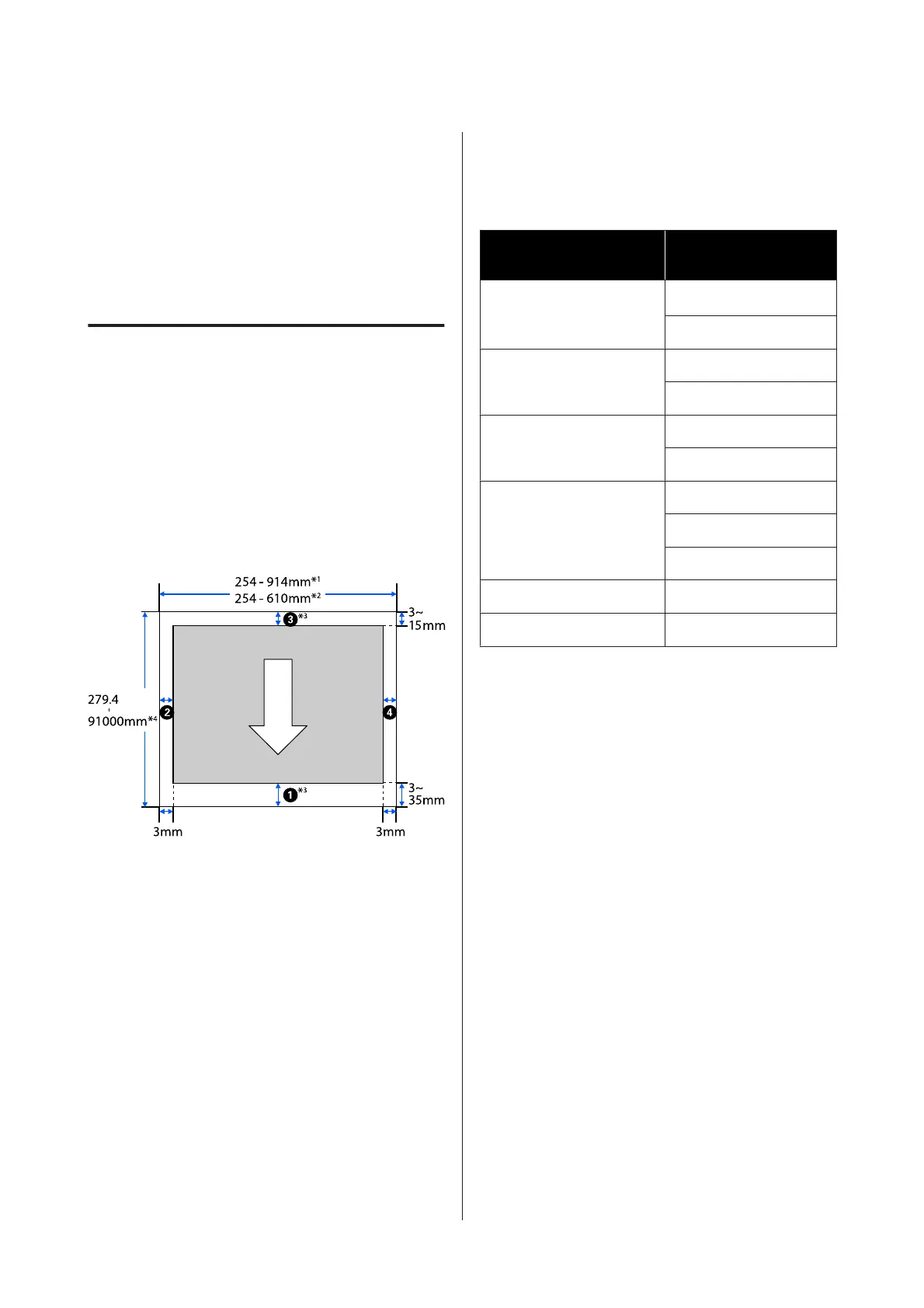

The gray area in the illustration below shows the
printable area.
When printing borderless at the left and right, the left
and right margins will be 0 mm. When printing
borderless at all edges, all margins will be 0 mm.
The arrow in the illustration indicates the direction that
the paper is ejected.
*1 SC-T5400 Series/SC-T5400M Series
*2 SC-T3400 Series/SC-T3400N Series
*3
In the printer driver Layout screen, selecting Print
Banner sets the top and bottom margins of the
paper to 0 mm.
*4 However, the actual print size depends on the
application, the paper size loaded in the printer,
the printer driver settings, and the computer
environment.
Margins for roll paper depend on the settings values for
Top/Bottom Margins in the menu, as shown in the
table below.
Settings of Top/Bottom Margins U “Roll Paper
menu” on page 136
The default setting is Standard.
Settings of Top/Bottom
Margins
Margin Values
Standard
A,C = 15 mm
*
B,D = 3 mm
Top 3 mm/Bottom 3 mm A,C = 3 mm
B,D = 3 mm
Top 15 mm/Bottom 15 mm A,C = 15 mm
B,D = 3 mm
Top 35 mm/Bottom 15 mm A = 35 mm
C = 15 mm
B,D = 3 mm
3 mm A,B,C,D = 3 mm
5 mm A,B,C,D = 5 mm
*
If Standard is selected when the following two
conditions are met, then the top and bottom
margins will be 3 mm.
❏ The paper type settings are one of the following
Singleweight Matte, Coated Paper(Generic), Plain
paper, Plain Paper Thin, Plain Paper Thick, Tracing
Paper, Tracing Paper <LowDuty>, Matte Film,
Blueprint Paper
❏ The printer driver print targets are one of the
following
CAD/Line Drawing - Black, CAD/Line Drawing -
Color,CAD/Line Drawing - Bi-Level
