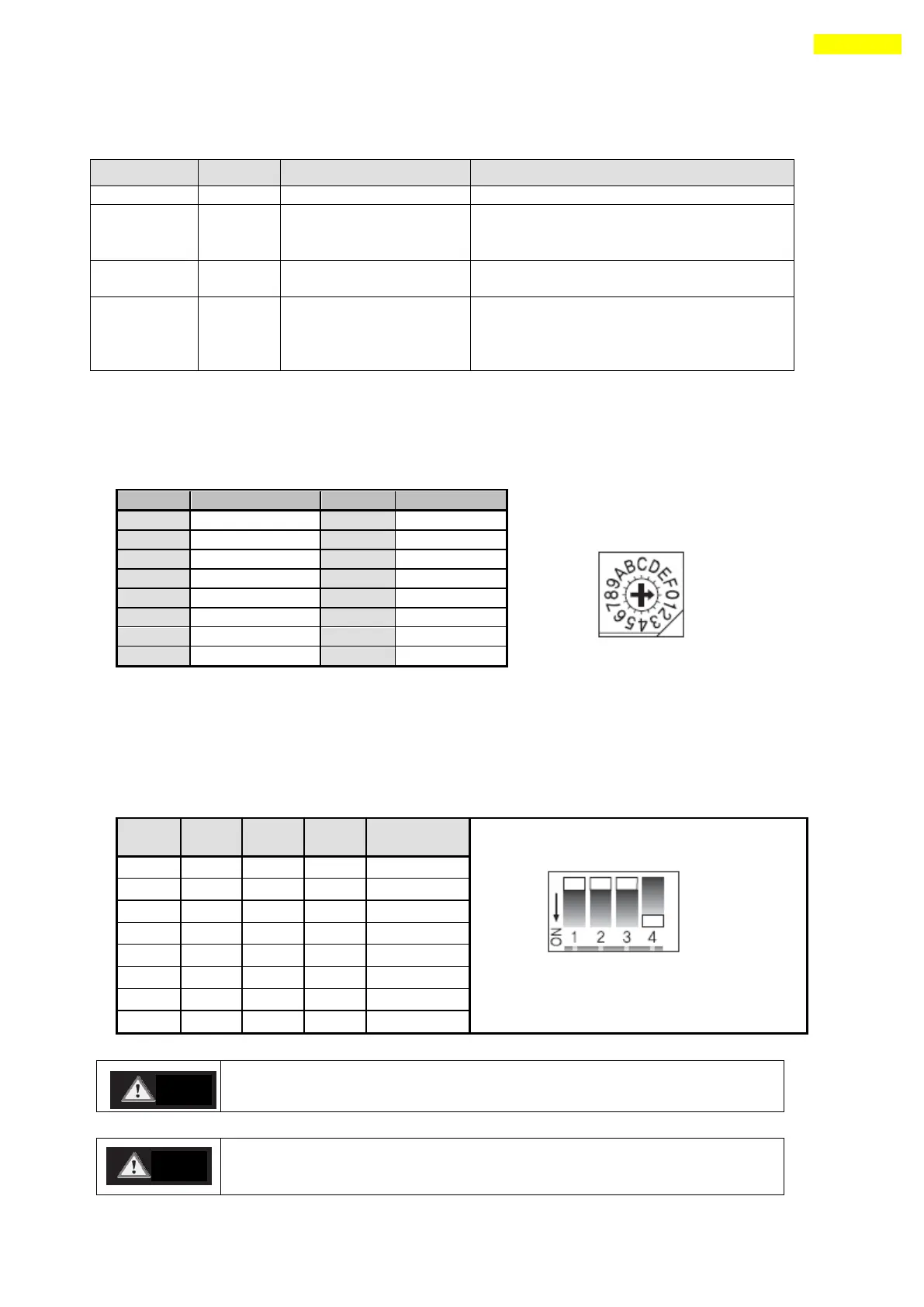

6. External Name and Function Setting of Ezi-SERVO-PR
6.2 Status Display LED
Display
Color
Function
On/Off Condition
① POW
Green
Power input indication
Lights On when power is applied.
② INP
Yellow
Complete Positioning
motion
When position command pulse input and then
the position deviation is within the value
set by the parameter, this lights On.
③ SON
Orange
Servo On/Off indication
Servo On : light On
Servo Off : light Off
④ ALM
Red
Alarm indication
Flash when protective function is
activated.
(If you count LED flash time, you can check
what protective function is run.)
6.3 Drive ID Switch Selection (SW1)
1) When several modules are connected to one daisy chain network, this switch is to set
intrinsic ID to each module.
2) The switch can set intrinsic ID to each module up to 16 numbers from 0 to F(15).
Position
ID No.
Position
ID No.
0
0
8
8
1
1
9
9
2
2
A
10
3
3
B
11
4
4
C
12
5
5
D
13
6
6
E
14
7
7
F
15
6.4 Communication Speed and Terminal Resistance Select Switch(SW2)
SW2 is to set the communication speed between central controller(PC) and Drive. If
corresponding drive module is connected to the end of one network segment, SW2 sets whether
terminal resistance is used. SW2.1 is to set the use of terminal resistance, and SW2.2~SW2.4
is to set the communication speed as follows.
The communication speed of drive modules connected to one segment must
be set with same value.
Support max. 115200[bps] when using RS-232 to RS-485 conveter.
SW2.1
SW2.2
SW2.3
SW2.4
Baud rate
[bps]
*1 : default setting value.
.
SW2.1 is OFF.: Terminal resistance is Off.
SW2.1 is ON. : Terminal resistance is On.
X
OFF
OFF
OFF
9600
X
ON
OFF
OFF
19200
X
OFF
ON
OFF
38400
X
ON
ON
OFF
57600
X
OFF
OFF
ON
115200 *1
X
ON
OFF
ON
230400
X
OFF
ON
ON
460800
X
ON
ON
ON
921600
