Feasa 5-F User Manual

FEASA LED ANALYSER
FUNCTIONAL VERSION
Daisy Chain Mode
Daisy Chain Pinout
PIN D_IN D_OUT
1 RX_in RX_out
2 TX_out TX_in
3 GND GND

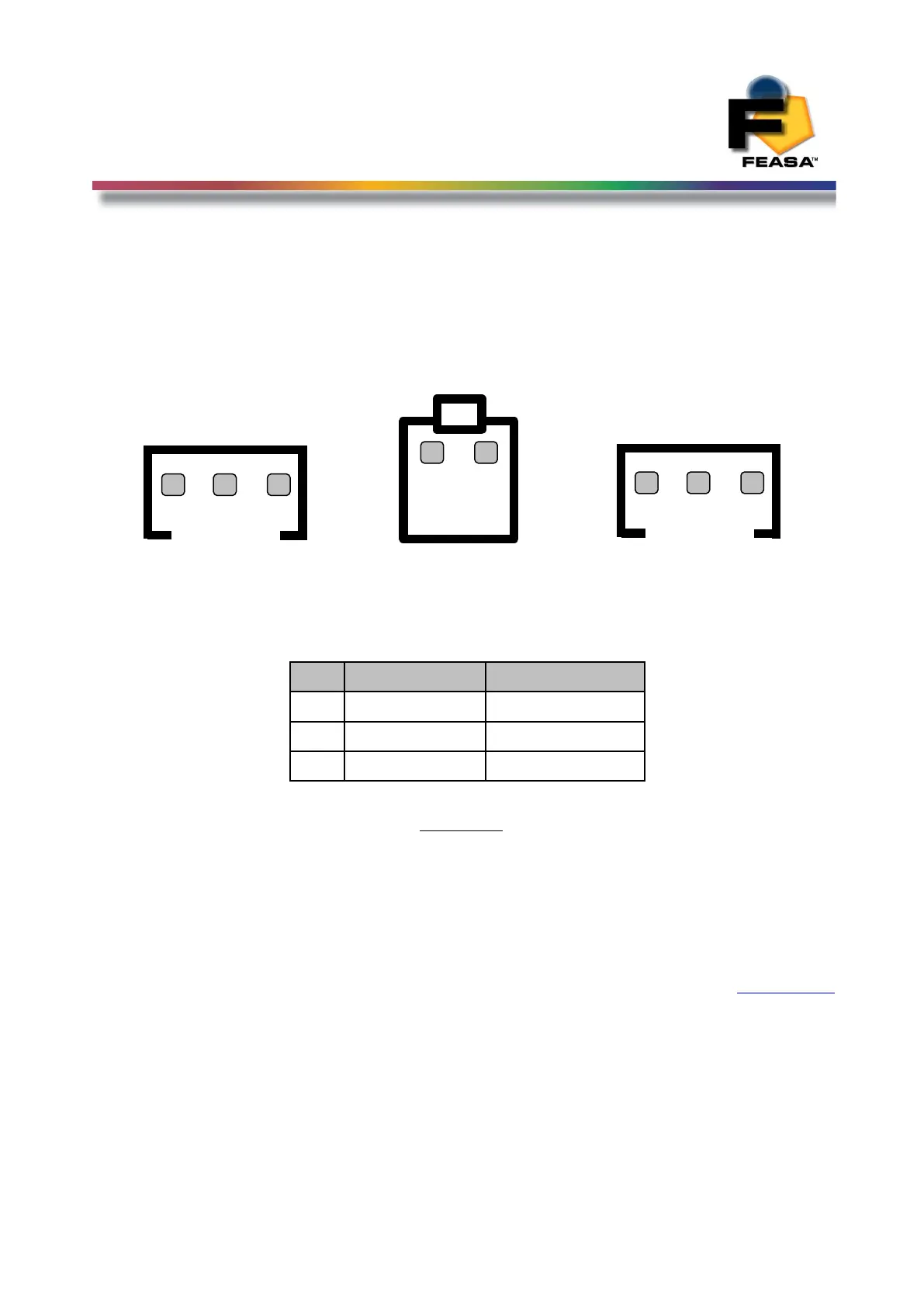

Figure 11
Figure 11 shows the layout of the Connectors viewed from the edge of the board.
The GND line of D_OUT is connected with the GND line of D_IN, the RX_out of D_OUT is
connected to RX_in of D_IN and the line TX_in of D_OUT is connected to the line TX_out of
D_IN.
Back to Index
113
1
2
3
D_IN
1
2
3
D_OUT
GND
5V
POWER SUPPLY
