4.1.

Connector X1 - Ethernet Interface

cVEND has an integrated 10 / 100 Base-T network port at RJ45 connector X1, with automatic po-

larity correction during auto-negotiation and 10 Base-T signal reception.

CAT 5 cables are recommended to ensure a reliable operation at 10 Mbps or 100 Mbps.

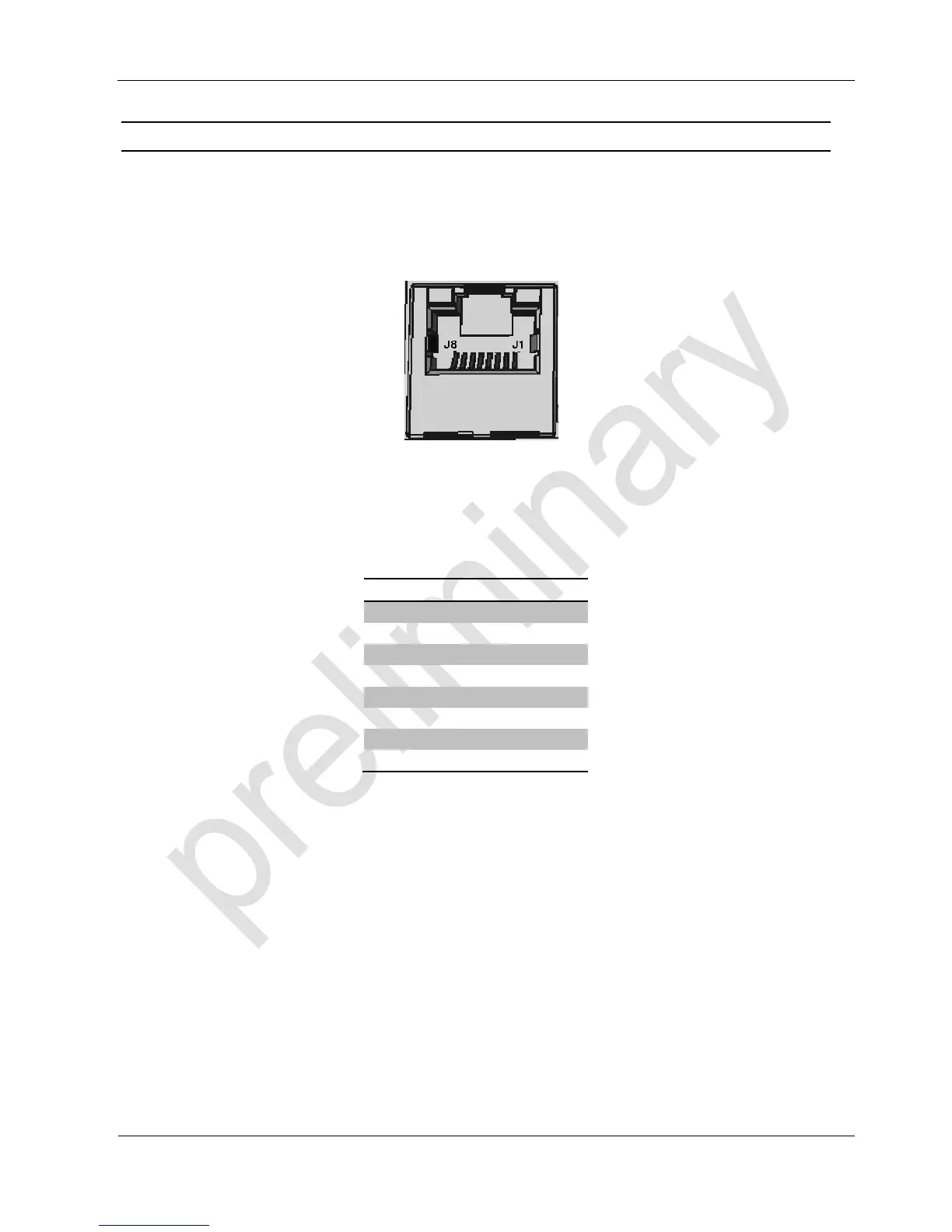

Fig. 10: Ethernet Interface at connector X1

Required Connector: RJ45

Table 2: Pin Assignment Ethernet Connector

Label

TX+

TX-

RX+

VETH+

RX-

VETH-
