Installation
cVEND plug
FEIG ELECTRONIC GmbH
Page 12 of 24
cVEND plug - User manual.docx
4.2.
Connector X2 - USB Device Interface
At connector X2 a USB-Device interface is provided where USB-Host can be connected. cVEND is
designed as a self powered device. powering over USB interface is not possible.

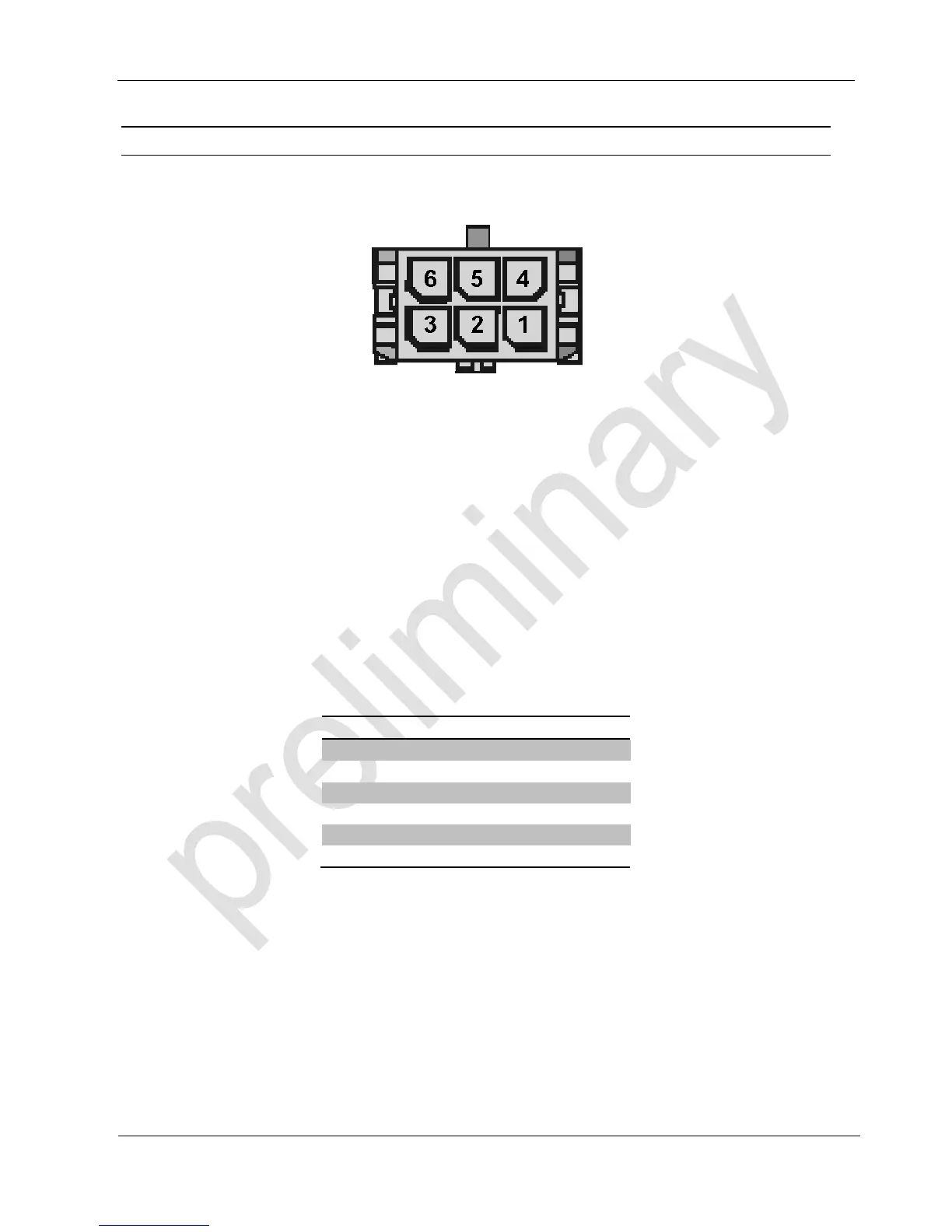

Fig. 11: USB Interface at connector X2
Required Connector:
The fitting complement for this connector consists of a 6-pole plug Type Molex Micro Fit
and the appending Crimp contact.
Manufacturer ordering code:
Molex 43025-0600
Plug, 6-pole, grid dimension 3.0 mm, Dual Row, Molex Micro Fit housing
Molex 43030-0001
Crimp contact, Female, grid dimension 3.0 mm, AWG#20-24, Molex Micro Fit
Table 3: Pin Assignment USB Connector
PIN
Label
Direction
1
DEV-Vcc
I
2
DEV-D-
I/O
3
DEV-D+
I/O
4
N.C.
-
5
GND
-
6
Shield
-
NOTE:
The USB interface is specified for max. 5 m (16,4 ft) cable length.
