Feig Electronic cVEND plug User Manual

Installation
cVEND plug
FEIG ELECTRONIC GmbH
Page 13 of 24
cVEND plug - User manual.docx
4.3.
Connector X3 - RS232 V.24 (UART#1) Interface
X3 is the connector for a RS232 interface on V.24 level.

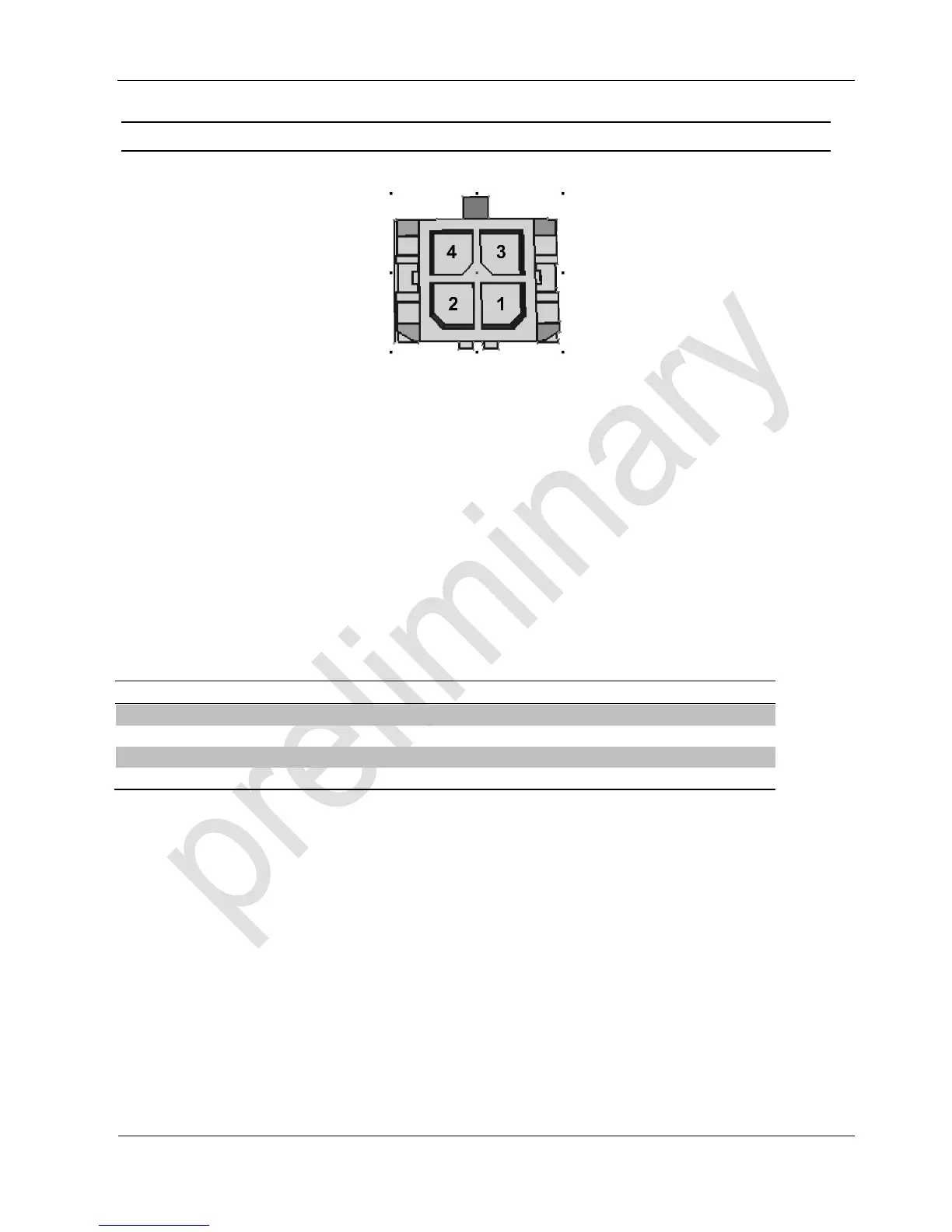

Fig. 12: RS232 V.24 (UART#1) Interface at connector X3
Required Connector:
The fitting complement for this connector consists of a 4-pole plug Type Molex Micro Fit
and the appending Crimp contact.
Manufacturer ordering code
Molex 43025-0400
Plug, 4-pole, grid dimension 3.0 mm, Dual Row, Molex Micro Fit housing
Molex 43030-0001
Crimp contact, Female, grid dimension 3.0 mm, AWG#20-24, Molex Micro Fit
Table 4: Pin Assignment RS232 V.24 Interface
PIN
Label
Direction
Remark
1
Device TXD
O
2
Device RXD
I
3
Wake-UP
I/O
see 4.6. Wake-Up
4
GND
-
