Connector X5 – Power Supply Vcc
cVEND must be supplied by a regulated power supply of 5 V DC only. If switching power supplies
are used be sure that there is adequate filtering. Noise from the power supply can result in a reduc-
tion of the read/write range of the module. The cable length from the power supply should be as
short as possible, and should in any case not exceed 3 m.

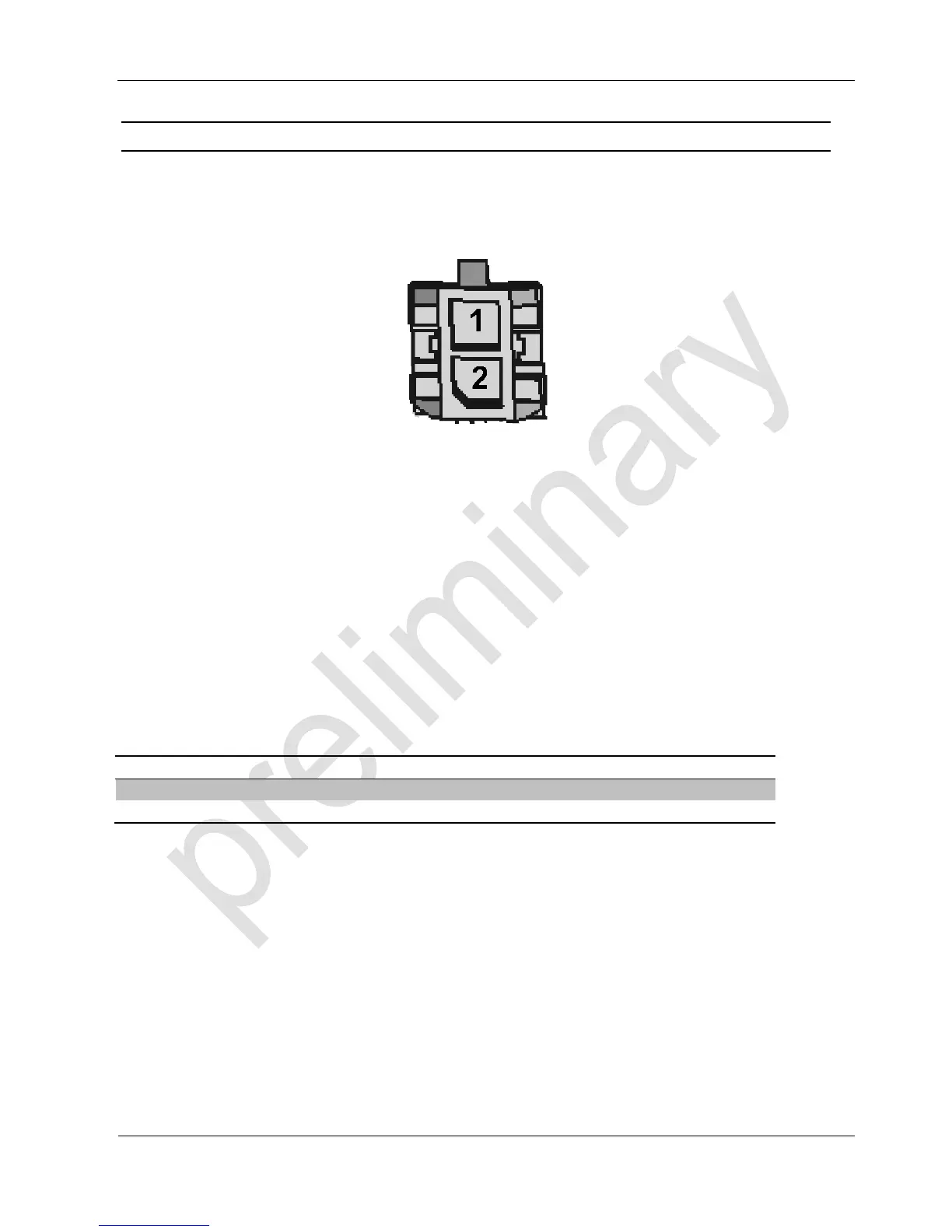

Fig. 14: Power Supply at connector X5
Required Connector:
The fitting complement for this connector consists of a 2-pole plug Type Molex Micro Fit
and the appending Crimp contact.
Manufacturer ordering code
Molex 43025-0200
Plug, 2-pole, grid dimension 3.0 mm, Dual Row, Molex Micro Fit housing
Molex 43030-0001
Crimp contact, Female, grid dimension 3.0 mm, AWG#20-24, Molex Micro Fit
Table 6: Pin Assignment Power Supply
NOTE:
The reader has to be supplied by a limited power supply (e.g. NEC Class 2/LPS power sup-
ply) according IEC EN 60950-1 chapter 2.5, only.
Reversing the polarity of the supply voltage may destroy the device.
Supply voltages outside the specifications may destroy the device.
