14 Fendt Vario 700, 800, and 900 Series SmarTrax™ MD Installation Manual

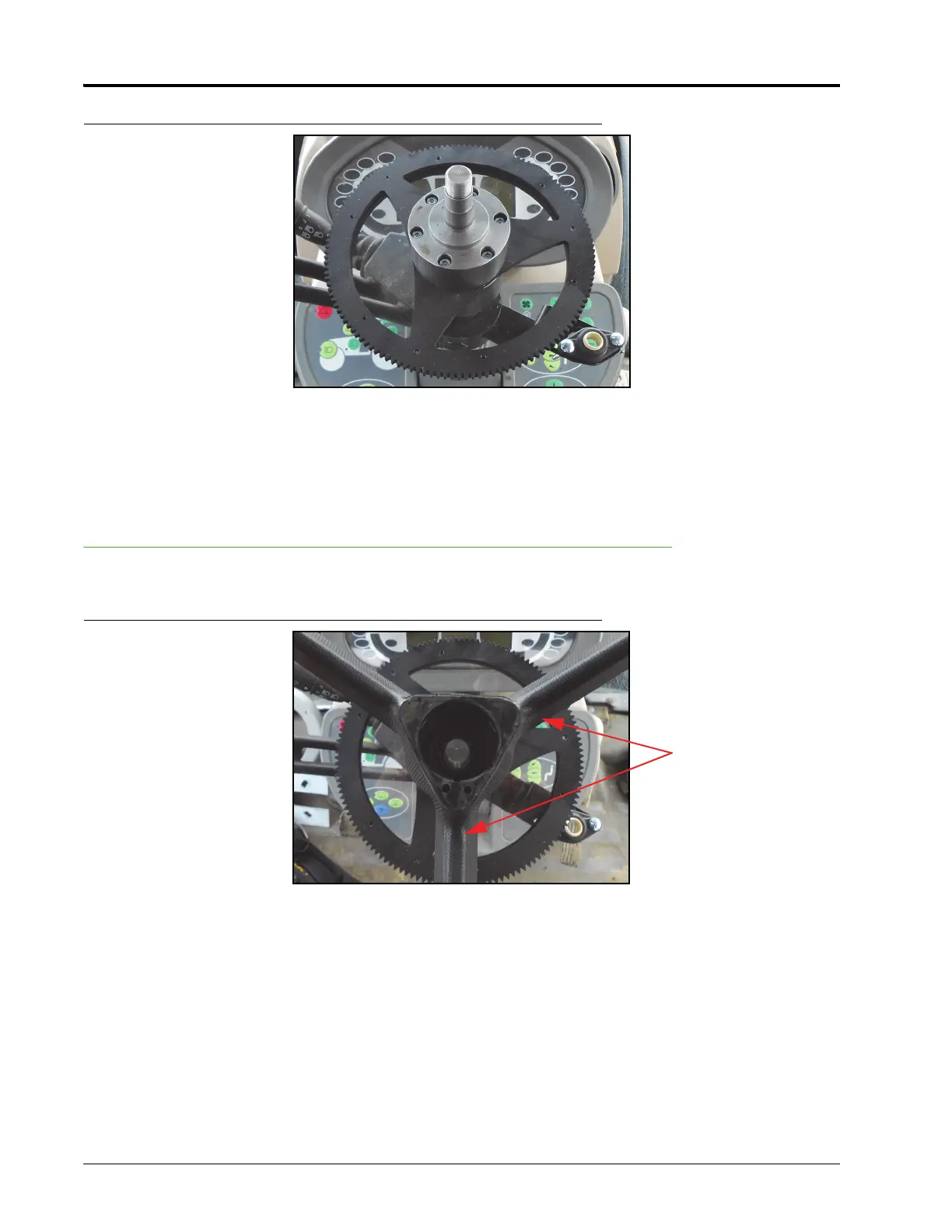

FIGURE 11. Male Spline Adapter Assembly Installed
4. Align the bolt holes in the male spline adapter with the holes in the ring gear assembly.
5. Install and tighten the spline assembly bolts to secure the male spline adapter and ring gear to the female
spline adapter.
Reinstall the Steering Wheel
FIGURE 12. Steering Wheel Placement
1. Align the spokes of the steering wheel with the spokes on the installed ring gear.
Steering Wheel
Spokes Aligned with
Ring Gear Assembly
Spokes
