Node and Wiring Installation

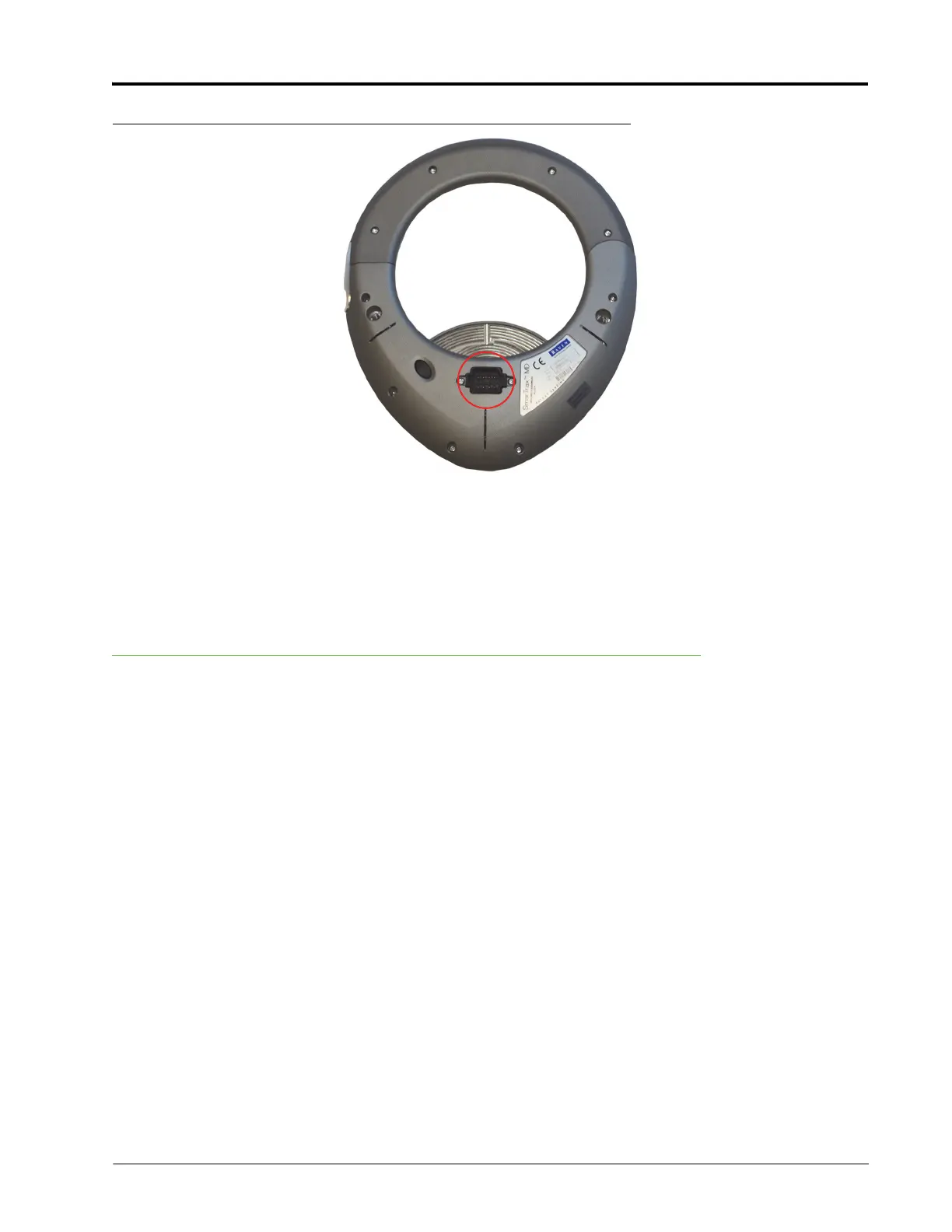

FIGURE 7. Mechanical Drive Connection
5. Connect the 8-pin Deutsch connector on the node harness into the 8-pin port of the mechanical drive (P/N
063-4001-010).
6. Install the terminator (P/N 063-0172-369) supplied with the node harness on the remaining 4-pin Deutsch
connector.
Install the Chassis Cable - SmarTrax MD-
Only Systems (If Applicable)
If the machine does not contain an existing chassis power system (such as AutoBoom, product control, etc.), it
is necessary to install the chassis power cable to operate the SmarTrax MD system. If a CAN system already
exists on the machine, refer to Connect SmarTrax MD to an Existing Chassis Cable (If Applicable) below to
connect power to the SmarTrax MD system.
Note: The chassis cable is sold separately. Contact your local Raven dealer for ordering information.
1. Locate the SmarTrax chassis cable (P/N 115-4001-085).
2. Connect the TO SMARTRAX NODE connector from the chassis cable to the round 16-pin connector on the
node harness (P/N 115-4001-157).
3. Connect the TO CONSOLE CABLE connector to the Raven console cable.
4. Install a terminator (P/N 063-0172-369) on the CAN cable connector.
5. Loop and tie-off the REMOTE SWITCH cable connection, securing it with plastic cable ties as necessary.
Note: The REMOTE SWITCH connector is not used in the SmarTrax system. Ensure the cable is
secured away from moving parts and heat sources.
6. Connect the ring terminals to the battery.
Note: The positive connectors are fused.
