Manual No. 016-5030-043 Rev. A 15
Mechanical Drive Installation

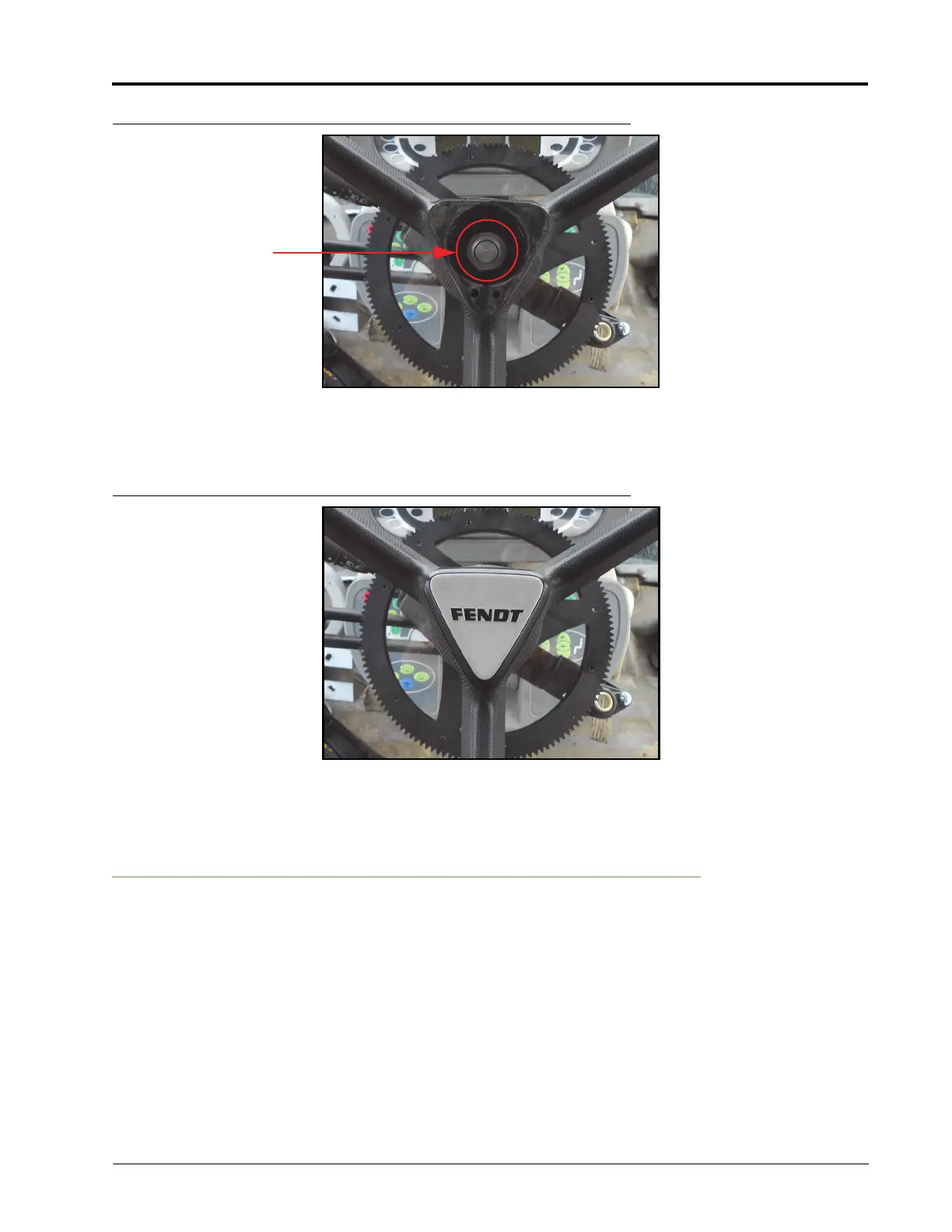

FIGURE 13. Washer and Nut Installed
2. Install the steering wheel on the male spline adapter.
3. Reinstall the machine’s nut on the protruding male spline adapter.
FIGURE 14. Steering Wheel Cap Reinstalled
4. Replace the steering wheel cap.
Install the Mechanical Drive
Note: Depending on the machine’s configuration, it may be necessary to install the anti-rotation pin in the
mechanical drive’s casing after the mechanical drive is installed instead of before as indicated in
the instructions below.
Nut and Washer from
Spline Assembly
Installed
