FLIR K Series User Manual

System parts
9
9.1 Camera

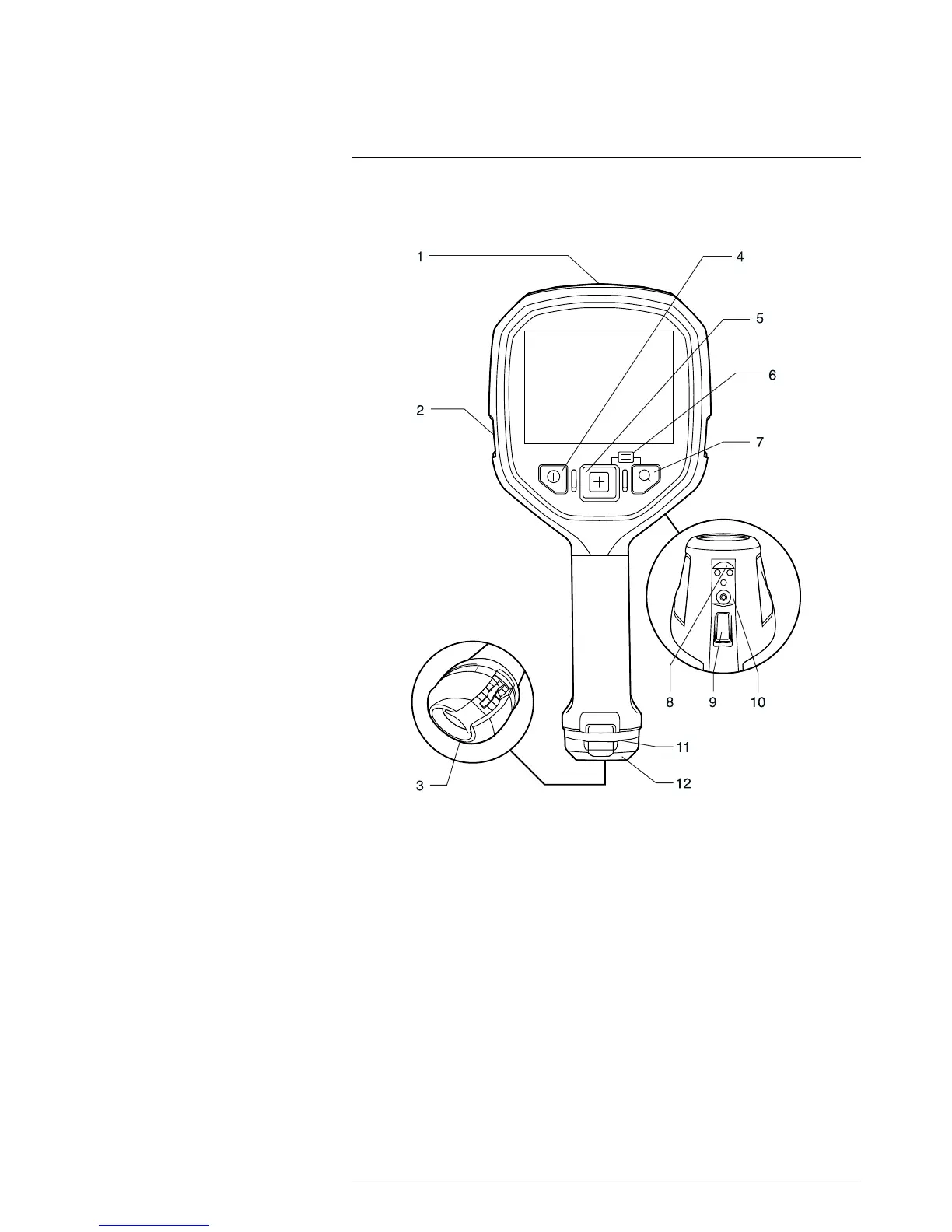

9.1.1 Figure
9.1.2 Explanation
1. USB Mini-B connector: Connect to a computer to download images using Flir Tools.
2. Attachment point for lanyard strap/neck strap (left and right side).
3. Eccentric latch to secure the battery.
4. On/off button. This button has two functions:
• Push and holdto turn on/off.
• Push to go to default mode.
5. Mode button: Push repeatedly to select camera modes.
6. Access to setup menus and stored images: Push Mode + Zoom button.
7. Zoom button (zoom factor 2×).
8. Connectors for in-truck charger.
9. Save trigger.
10. Mount for tripod adapter.
11. Attachment point for retractable lanyard.
12. Battery.
