Screen elements
10

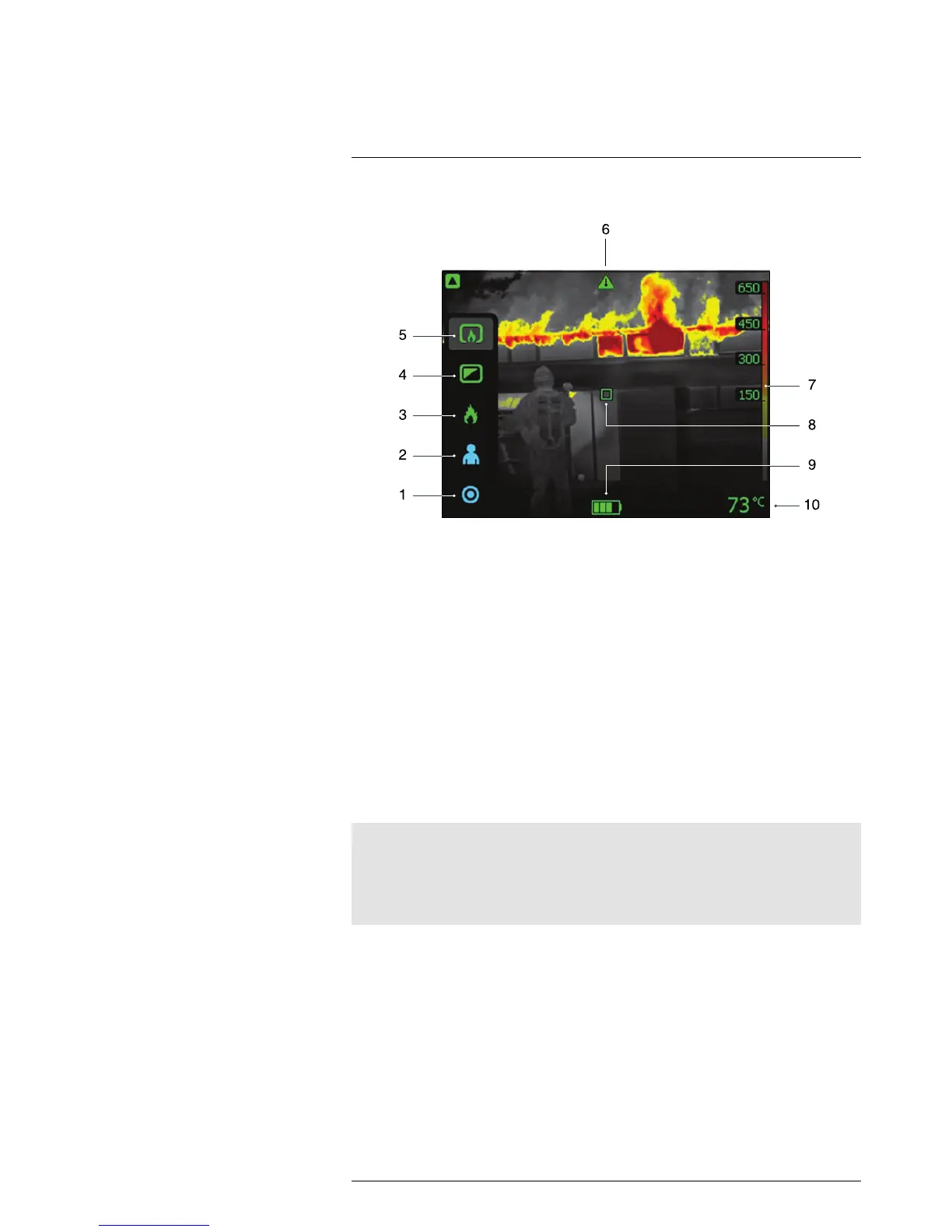

10.1 Figure
5
4
3
2
1
7
8
10
9
6
10.2 Explanation
1. Heat detection mode. Optimized for searching hotspots during overhaul after the fire
is out.
2. Search and rescue mode. Optimized for maintaining high contrast in the infrared im-
age while searching for people.
3. Fire mode. Similar to the NFPA firefighting mode, but with a higher-temperature start-
ing point for the heat colorization.
4. Black and white firefighting mode. Multipurpose mode for the initial fire attack with life
rescuing operation and control of the fire.
5. NFPA firefighting mode. Multipurpose mode for the initial fire attack with life rescuing
operation and control of the fire.
6. Overheating indicator. The indicator provides a visual warning to the user that the
thermal imager is about to shut down due to internal overheating.
7. Temperature scale.
8. Spotmeter.
9. Battery condition indicator.
10. Spotmeter temperature.
Note
• The green icon color indicates that the camera automatically switches between the high-sensitivity
range and the low-sensitivity range, depending on the object.
• The blue icon color indicates that the temperature range is locked.
• NFPA = National Fire Protection Association, an international non-profit organization (http://www.
nfpa.org).
